Description

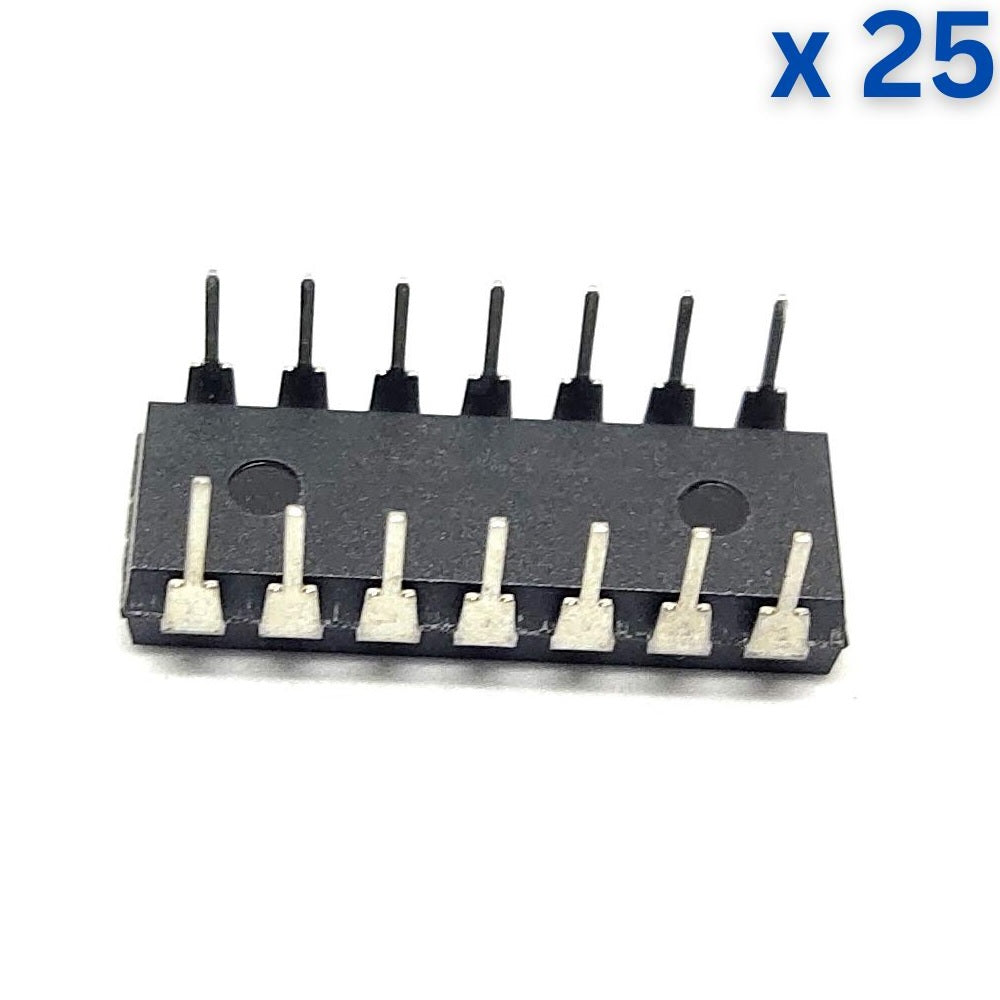

CD4078 belongs to the CD4000 IC series. CD4078 NOR Gate allows the direct use of positive logic 8 input NOR and OR functions. The CD4078 is always available in 14-pin hermetically sealed dual in line (DIP) package.
Technical Specification:
- Logic Family: CD4000
- Series: CD4078B
- Function: 8-Input NOR/OR Gate
- Number of Gates: 1 Gate
- Number of Input Lines: 8 Input
- Number of Output Lines: 2 Output
- Propagation Delay Time: 150 ns
- Operating Supply Voltage: 3 ~ 18V
- Operating Supply Current: 15 uA
- Quiescent Current: 20 nA
Features:
- Single 8-input NOR Gate
- Buffered Input and Output
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Mixer tank
- Memory circuits
- File registers
