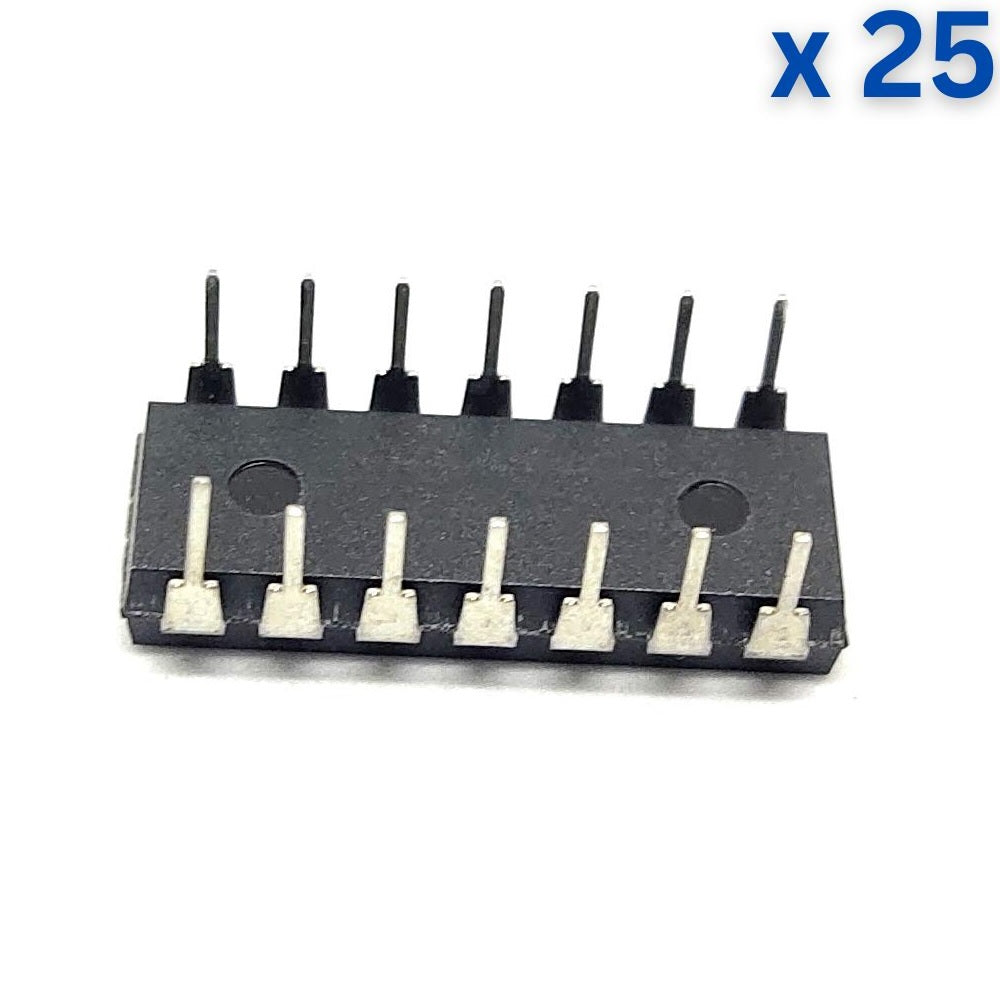

CD4075 Triple 3-Input OR Gate IC DIP-14 Package

SKU: 0010056

Quantity: 1 Pc
Sale price Rs. 11.86 (excl.18% GST)
Rs. 14.00


CD4075 is a part of the CD4000 IC series. CD4075 is a Triple 3-Input OR Gate that allows designers of the positive-logic OR function and supplements the existing family of CMOS gates.

Technical Specification:

  • VCC: 3V to 18V
  • Channels (#): 2
  • Inputs per channel: 4
  • Input type: Standard CMOS
  • Output type: Push-Pull
  • Features: Standard Speed (tpd > 50ns)
  • IOL (Max) (mA): 6.8
  • IOH (Max) (mA): -6.8
  • Data rate (Max): 8Mbps
  • Operating temperature range: -55°C to 125°C


  • Three Independent 3-input OR Gates
  • Medium Speed Operation
  • Wide Operating Voltage Range
  • Low Power CMOS


  • Industrial plant
  • Protective measurement
  • Detect exceed of temperature or pressure
