Description

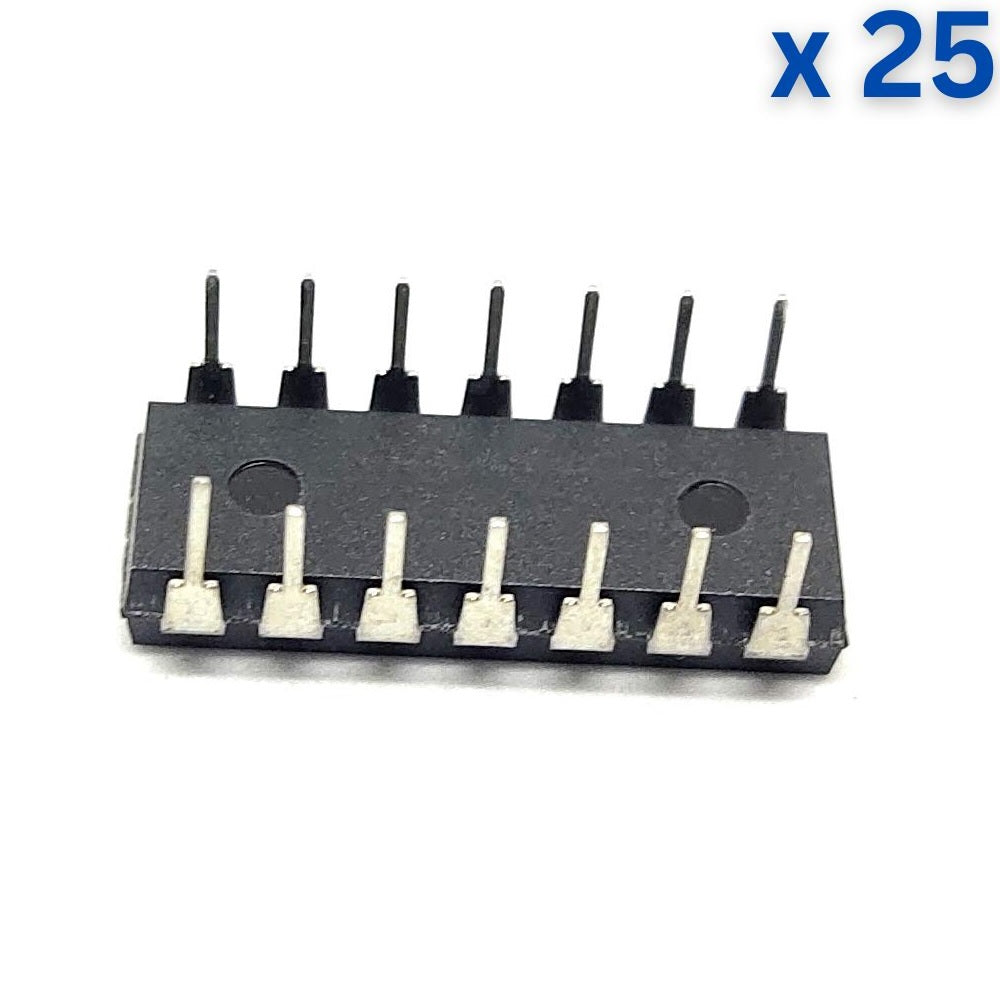

CD4073 IC is a Triple 3-input AND Gate made by using the complimentary MOS (CMOS) technology integrated with P and N type MOSFETS. This IC allows system designers to utilize the AND gate function and supplement the existing family of CMOS gates.
Technical Specification:
- Number of Bits: 3 bit
- Number of Input Lines: 3 Input
- Number of Output Lines: 1 Output
- High Level Output Current: -1.5 mA
- Low Level Output Current: 1.5 mA
- Propagation Delay Time: 120 ns
- Operating Supply Voltage: 3 ~ 18v
- Operating Supply Current: 25 uA
- Quiescent Current: 20 nA
- Operating Temperature: -55°C to +125°C
Features:
- Three Independent 3-input AND Gates
- Medium Speed Operation
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Measurement of frequency
- Enable gate and Inhibit gate
