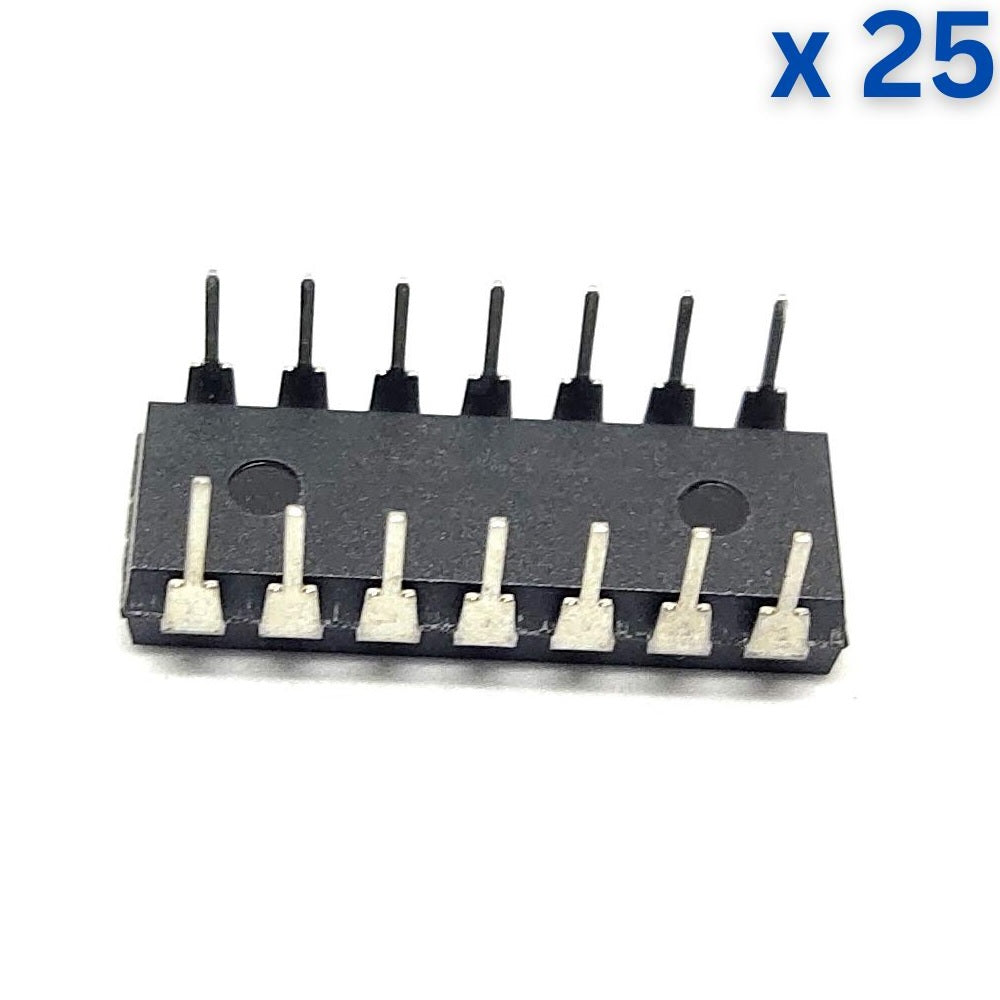

Description
The CD4070 employs complementary MOS (CMOS) transistors to achieve a wide power supply operating range, low power consumption, and high noise margin, the CD4070BC provide basic functions used in the implementation of digital integrated circuit systems.
Technical Specification:
- Number of Output Lines: 1 Output
- High Level Output Current: -1.5 mA
- Low Level Output Current: 1.5 mA
- Propagation Delay Time: 130 ns
- Input Type: CMOS
- Output Type: CMOS
- Logic Type: XOR
- Number of Bits: 4 bit
- Supply Voltage: 3 ~ 18V
- Operating Supply Current: 15 uA
- Quiescent Current: 20 nA
- Operating Temperature: -55°C ~ +125°C
Features:
- Four Independent 2-input EXCLUSIVE-OR Gates
- High Noise Immunity
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Logical Comparators
- Parity Generators and Checkers
- Adders/Subtractors
