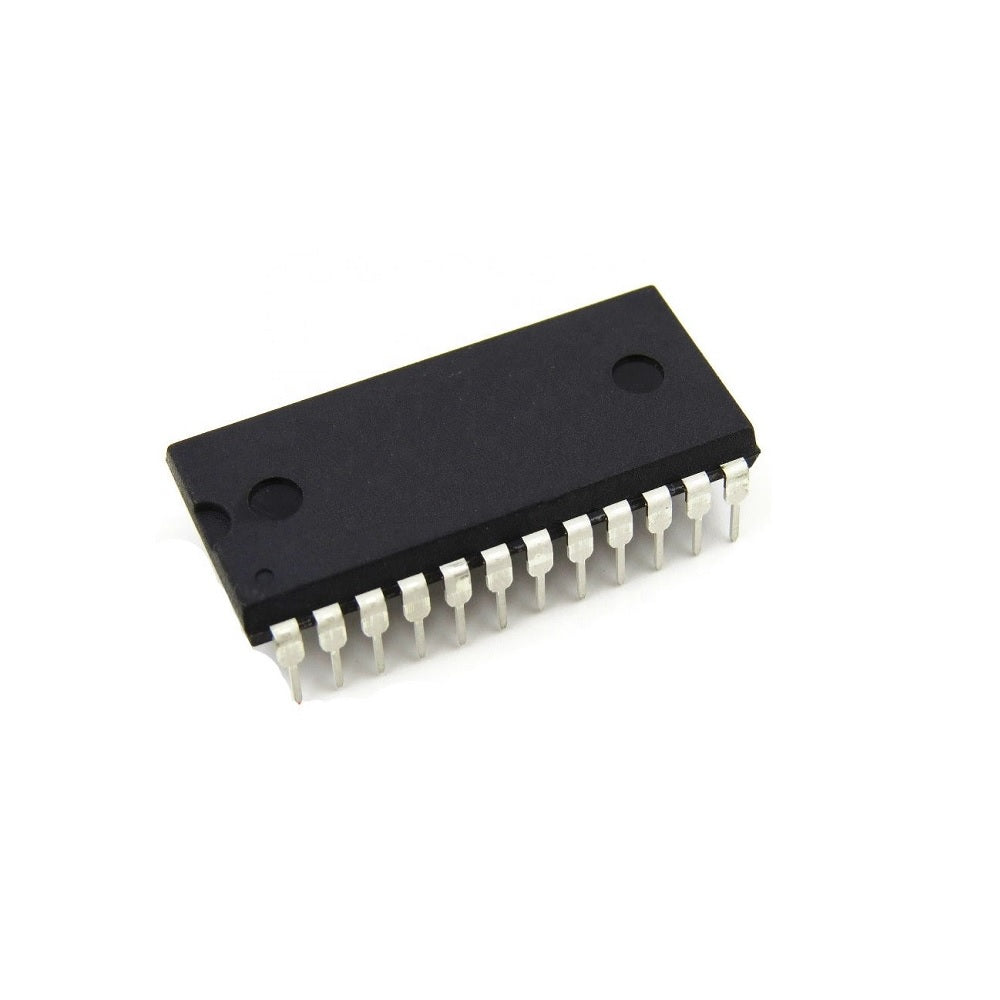

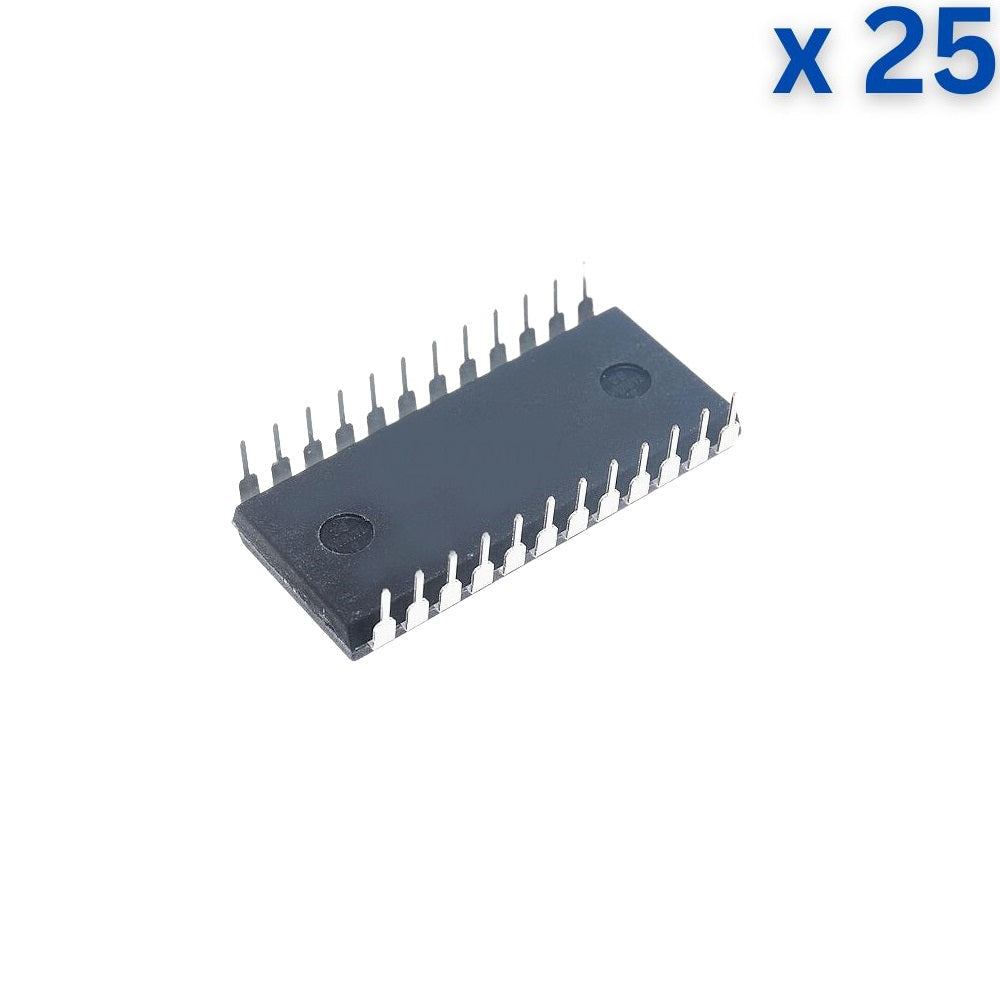

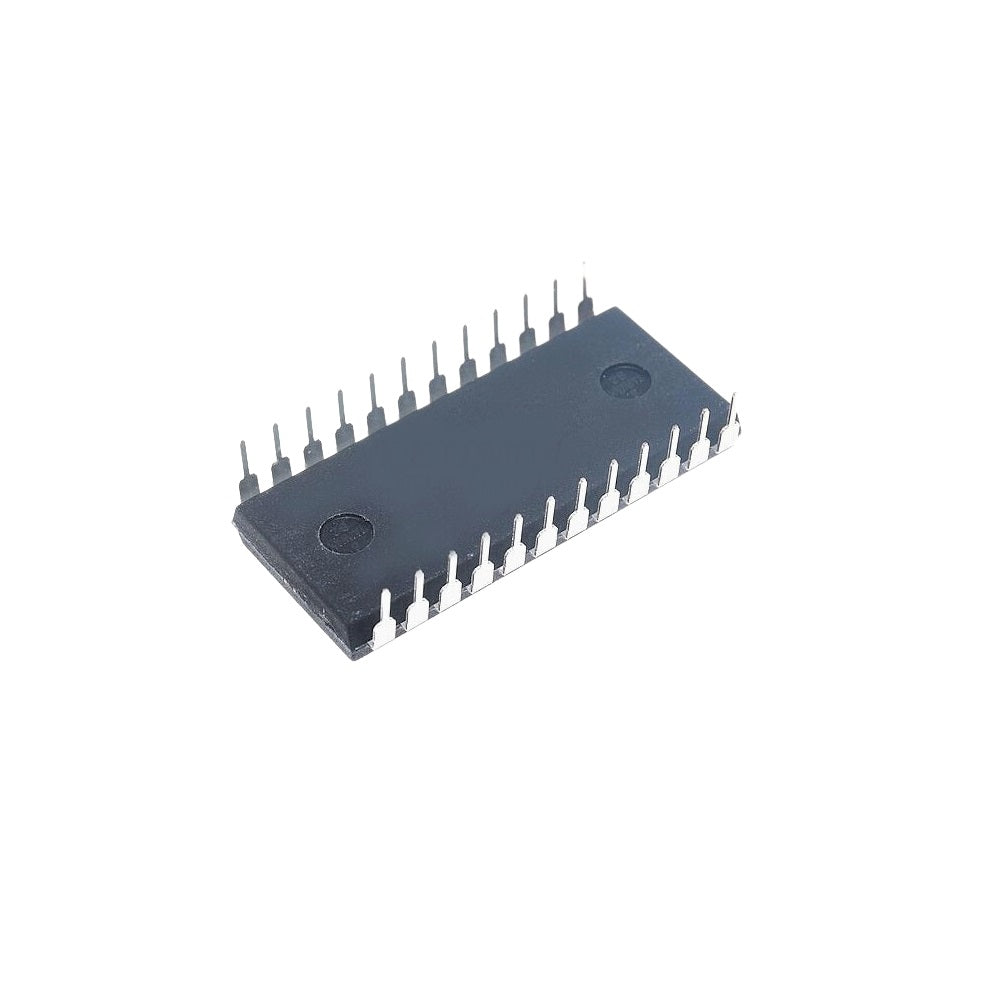

CD4067 16-Channel Analog Multiplexer/Demultiplexer IC DIP-24 Package

SKU: 0010049

Quantity: 1 Pc
Price:
Sale price Rs. 69.49 (excl.18% GST)
Rs. 82.00

Description

CD4067 is a part of the CD4000 IC series. CD4067 CMOS analog multiplexers/DE multiplexers are digitally controlled analog switches having low ON impedance, low OFF leakage current, and internal address decoding.

Technical Specification:

  • Supply Type: Single Supply
  • Operating Supply Voltage: 5 ~ 18V
  • Supply Current-Max: 100 uA
  • Power Dissipation: 500 mW (1/2 W)
  • On Resistance-Max: 240 Ohms
  • On Time – Max: 650 ns
  • Off Time – Max: 440 ns
  • Propagation Delay Time: 60 ns
  • Bandwidth: 14 Mhz
  • Operating Temperature: -55°C to +125°C

Features:

  • 16 Channel Multiplexer with Four Binary Control Inputs
  • Binary Inputs Select a Single Analog Input for Switching to the Output
  • Low ON Resistance
  • Inhibit Control
  • Binary Decoder on Chip
  • 5V, 10V and 15V Parametric Ratings

Applications:

  • Analog and digital multiplexing and demultiplexing
  • A/D and D/A conversion
  • Signal gating
