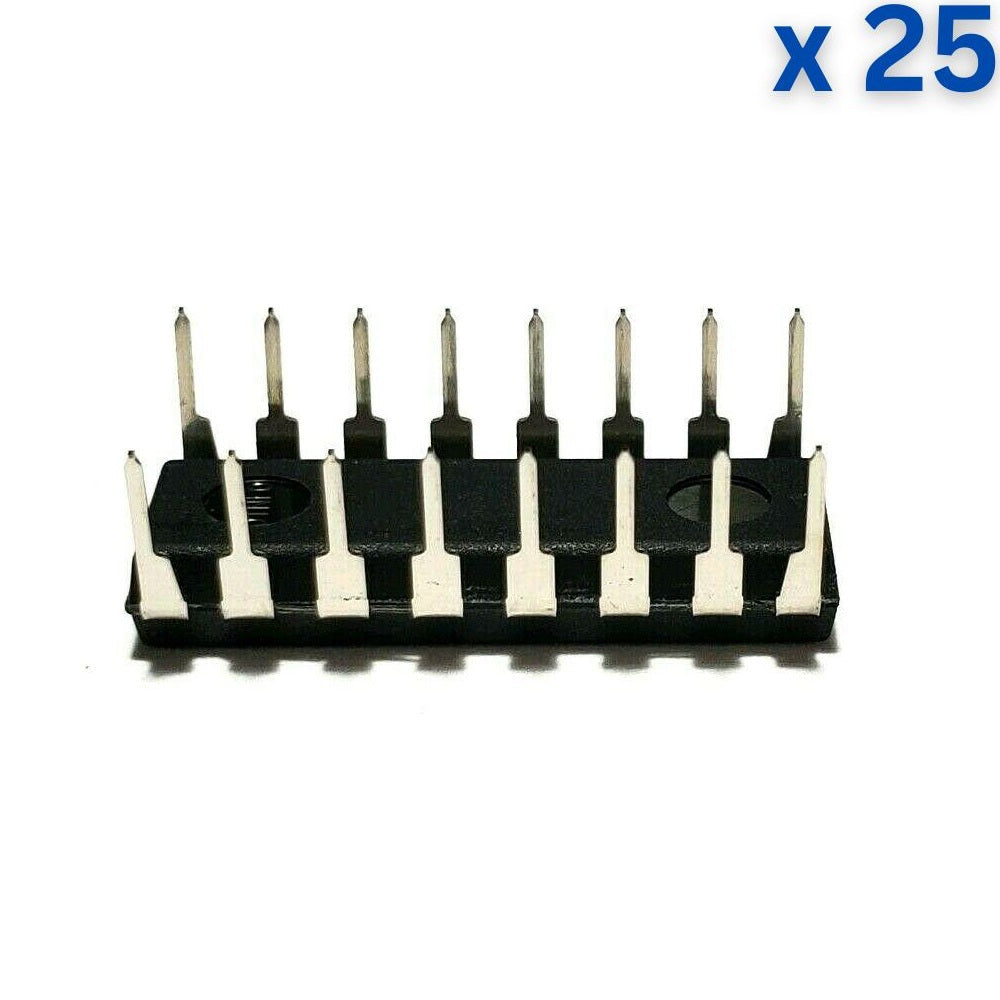

CD4063 CMOS 4-Bit Magnitude Comparator IC DIP-16 Package

SKU: 0010047

Quantity: 1 Pc
Sale price Rs. 16.95 (excl.18% GST)
Rs. 20.00


CD4063 belongs to a 4000 series of integrated chips. This series (CD4000) is more versatile and consumes lower power as compared to the 4000 series of TTL family. However, their slower speed as compared to TTL limits their applications to the designs which require slow speed.

Technical Specification:

  • VCC: 3V to 18V
  • Bits (#):18
  • Voltage:10V
  • F @ nom voltage: 8MHz
  • ICC @ nom voltage (Max): 4mA
  • tpd @ nom Voltage (Max): 0.3NS
  • IOL (Max): 4mA
  • IOH (Max): -4mA
  • Operating temperature range (C):-55°C to 125°C


  • Units Can be Cascaded to Compare 8, 12, 16 bits
  • Comparison Time: 250ns
  • Standardized Symmetrical Output Characteristics
  • 5V, 10V and 15V Parametric Ratings


  • Used in controlling servo motors
  • Used to compare a reference value with output and thus it is used in process controllers
  • Biometric applications
