Description

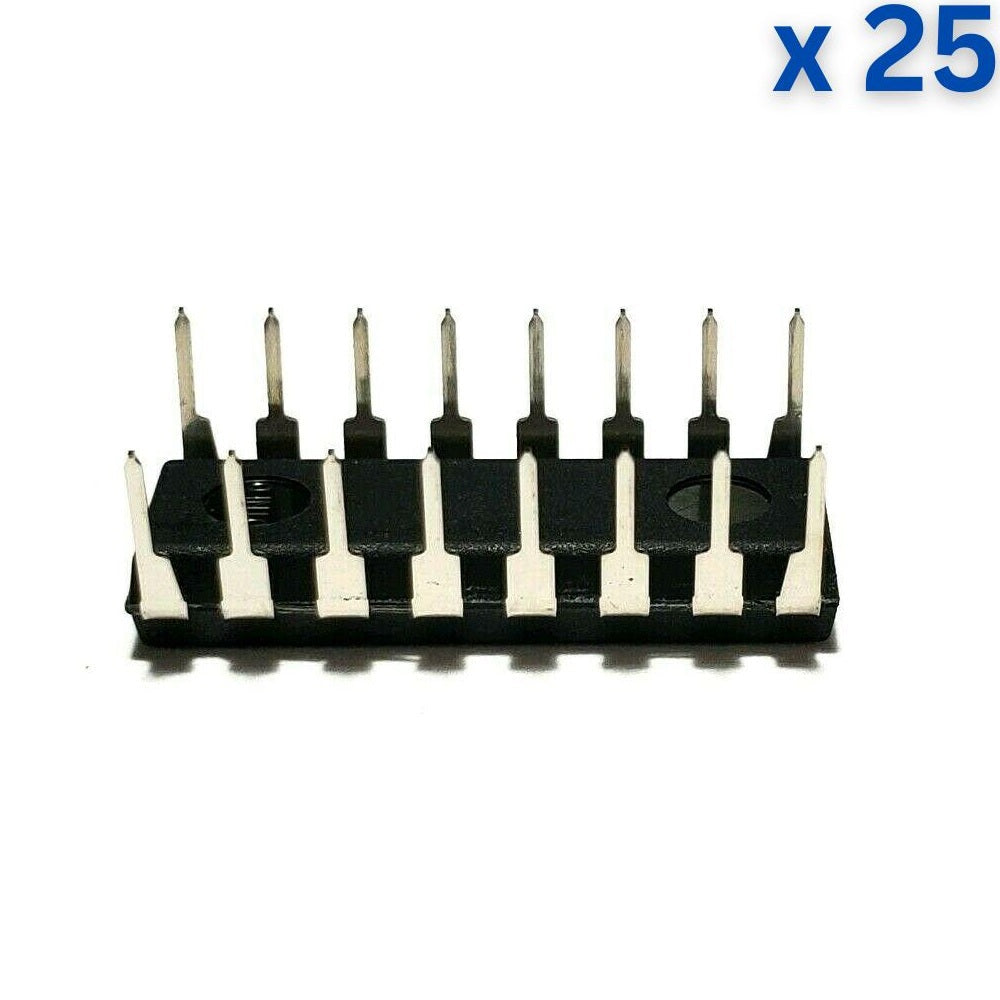

The CD4051 is a part of CD4000 IC series, made by using the complementary MOS (CMOS) technology. CD4051 is a single 8-channel multiplexer having three binary control inputs. A, B, and C, and an inhibit input. The three binary signals select 1 of 8 channels to be turned “ON” and connect the input to the output.
Technical Specification:
- Supply Type: Single Supply, Dual Supply
- Operating Supply Voltage: 5 ~ 18V
- Supply Current: 100 uA
- On Resistance: 240 Ohms
- Propagation Delay Time: 60 ns
- On Time: 720 ns
- Off Time: 450 ns
- Bandwidth: 20 Mhz
- Operating Temperature: -55°C ~ 125°C
Features:
- Single 8-Channel Multiplexer with Three Binary Control Inputs
- The Three Binary Inputs Select Which of the 8-Channels is Connected to the Output
- Low ON Resistance and High OFF Resistance
- Low Power CMOS
Applications:
- Analog and Digital Multiplexing and Demultiplexing
- A/D and D/A Conversion
- Signal Gating
- Factory Automation
- Televisions
- Appliances
