Description

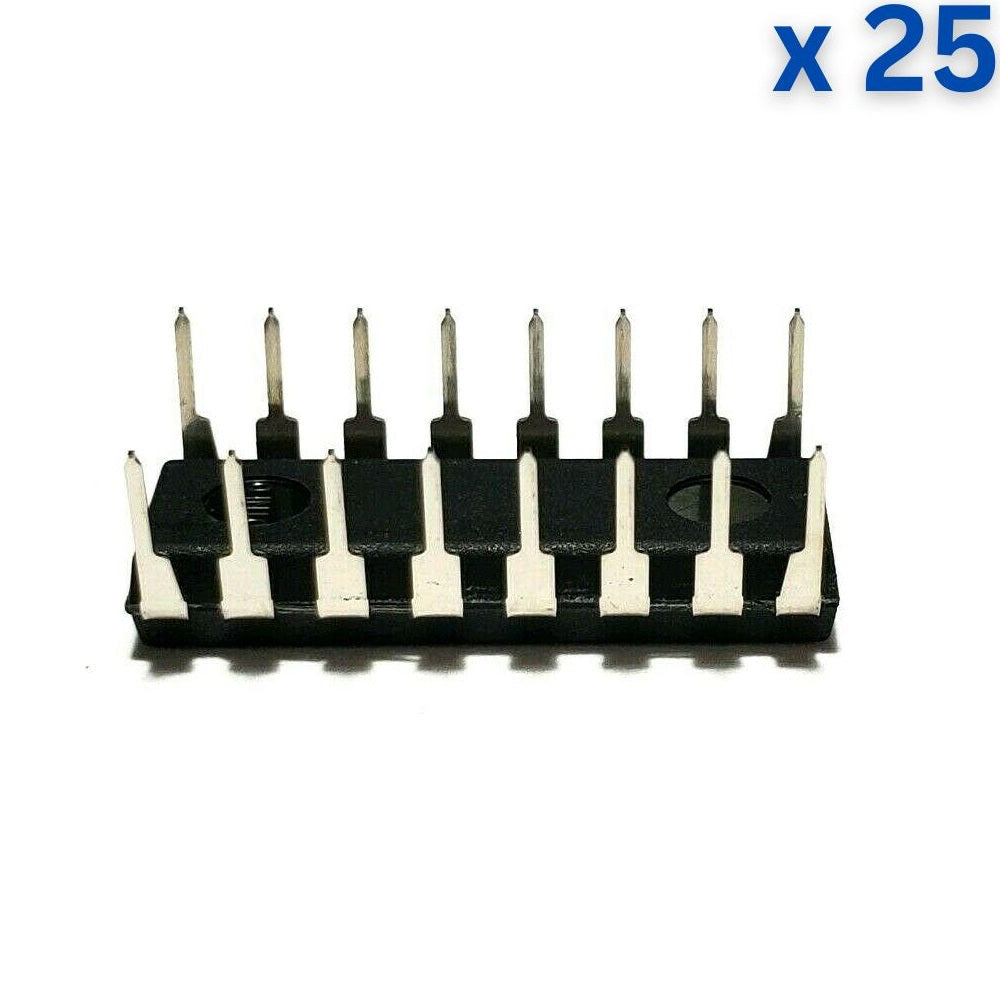

CD4029 belongs to the CD4000 IC series. It is a presettable up/down binary/decade counter which counts in either binary or decade mode depending on the voltage level applied at binary/decade input.
Technical Specification:
- Logic Family: CD4000
- Series: CD4029B
- Function: Counter
- Number of Bits: 4 bit
- Counting Method: Synchronous
- Counting Sequence: Up/Down
- Operating Supply Voltage: 3 ~ 18V
Features:
- Parallel jam inputs
- Binary or BCD decade up/down counting
Applications:
- Programmable Binary and Decade Counting/Frequency Synthesizers-BCD Output
- Analog to Digital and Digital to Analog Conversion
- Up/Down Binary Counting
- Difference Counting
- Magnitude and Sign Generation
- Up/Down Decade Counting
