Description

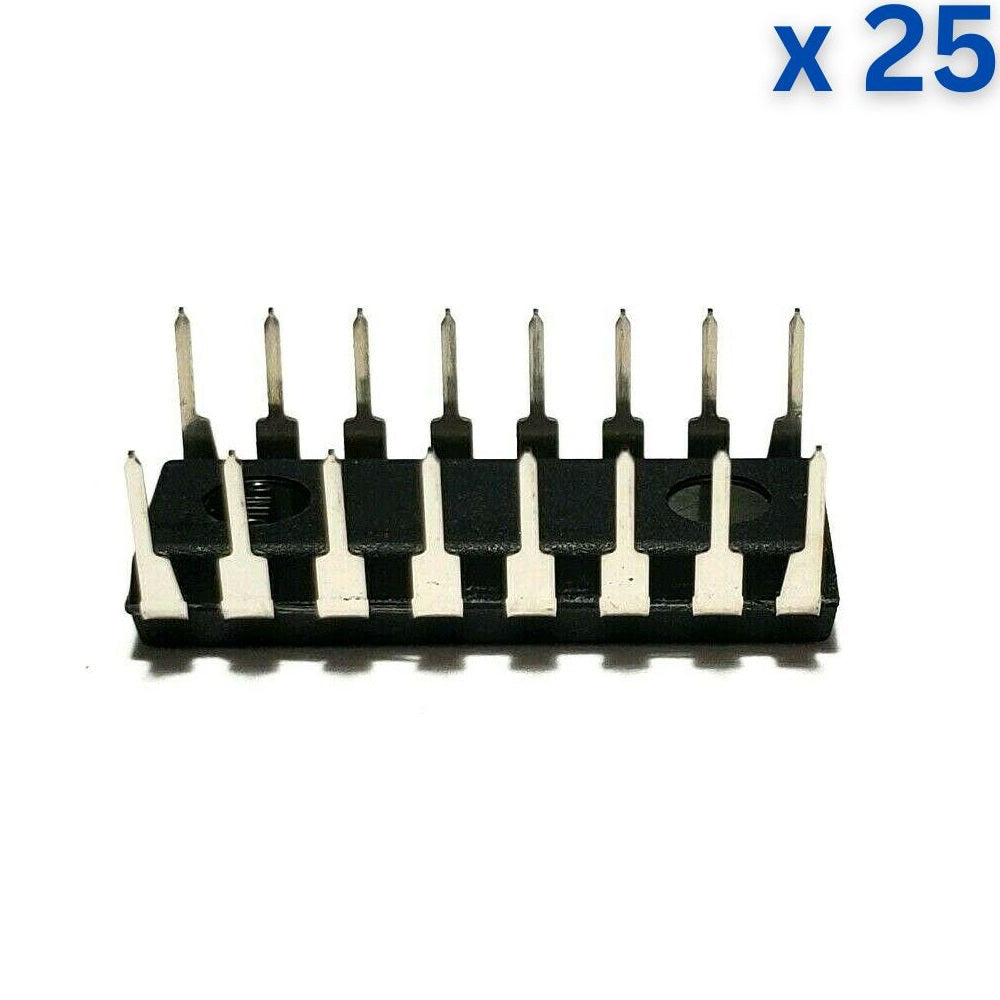

CD4027 belongs to the CD4XXX IC series. The IC is constructed by using the monolithic complementary MOS (CMOS), integrated with p-type and n-type enhancement mode transistors. Each flip-flop has independent J, K, set, reset, and clock inputs and buffered Q and Q outputs.
Technical Specification:
- Part number: CD4027B
- Technology Family: CD4000
- VCC (Min) (V):3V to 18V
- Bits (#):2
- Voltage (Nom):10V
- F @ nom voltage (Max): 8MHz
- ICC @ nom voltage (Max): 0.06mA
- tpd @ nom Voltage (Max): 130ns
- IOL (Max): 1.5mA
- IOH (Max): -1.5mA
Features:
- Two Independent JK Flip-Flops with Set, Reset and Clock Inputs
- Medium Speed up to 12MHz
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Shift Registers
- Ripple Binary Counters
