Description

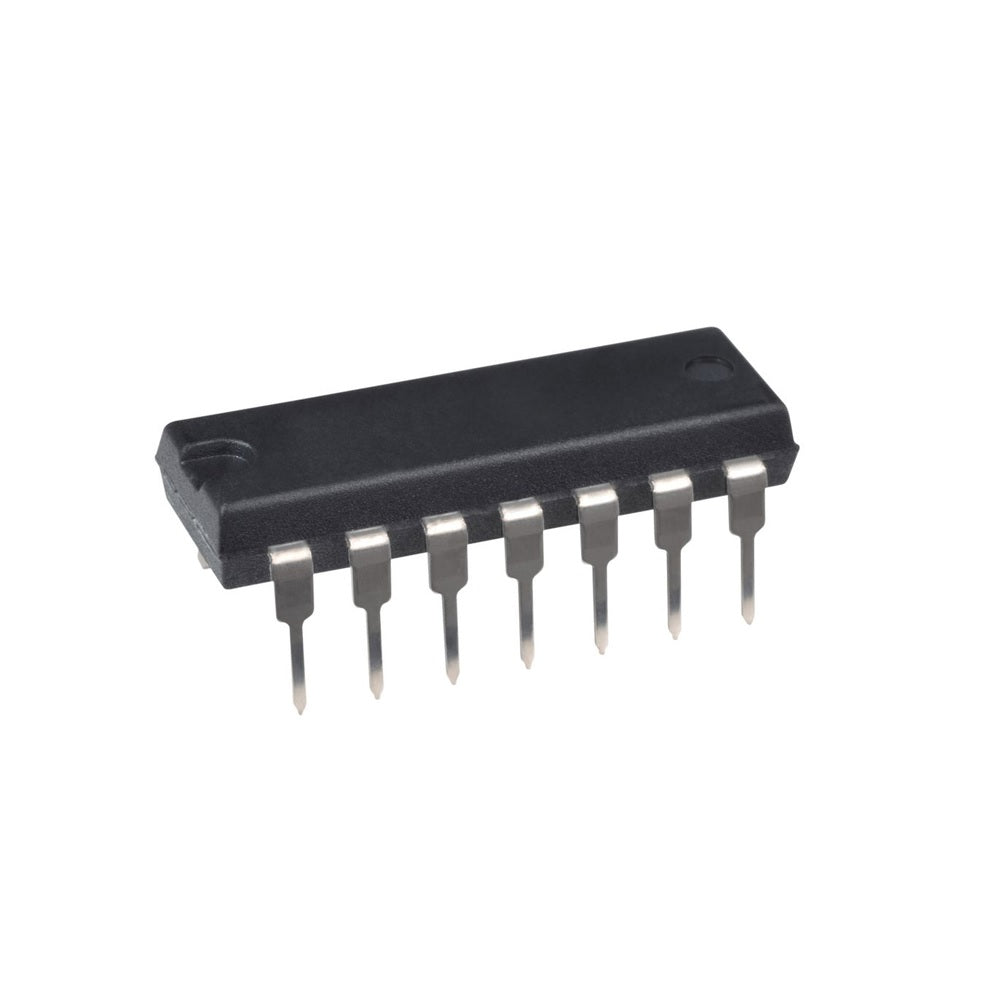

CD4025 consists of three NOR gates with 3 inputs and a single output. The IC is constructed by using the complementary MOS (CMOS) technology, integrated with p-type and n-type enhancement mode transistors. The IC is always available in a 14 – pin hermetically sealed dual in line package (DIP).
Technical Specification:
- High Level Output Current: -4.2 mA
- Input Capacitance: 5 pF
- Logic Function: NOR
- Low Level Output Current: 4.2 mA
- Max Operating Temperature: 125 °C
- Max Output Current: 6.8 mA
- Max Power Dissipation: 500 mW
- Max Supply Voltage: 18 V
- Min Operating Temperature: -55 °C
- Min Supply Voltage: 3 V
Features:
- Three Independent 3-input NOR Gates
- Standard Pin Configuration
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Cell phone
- Computing
- STB
- LCD TV
- Industrial controllers
