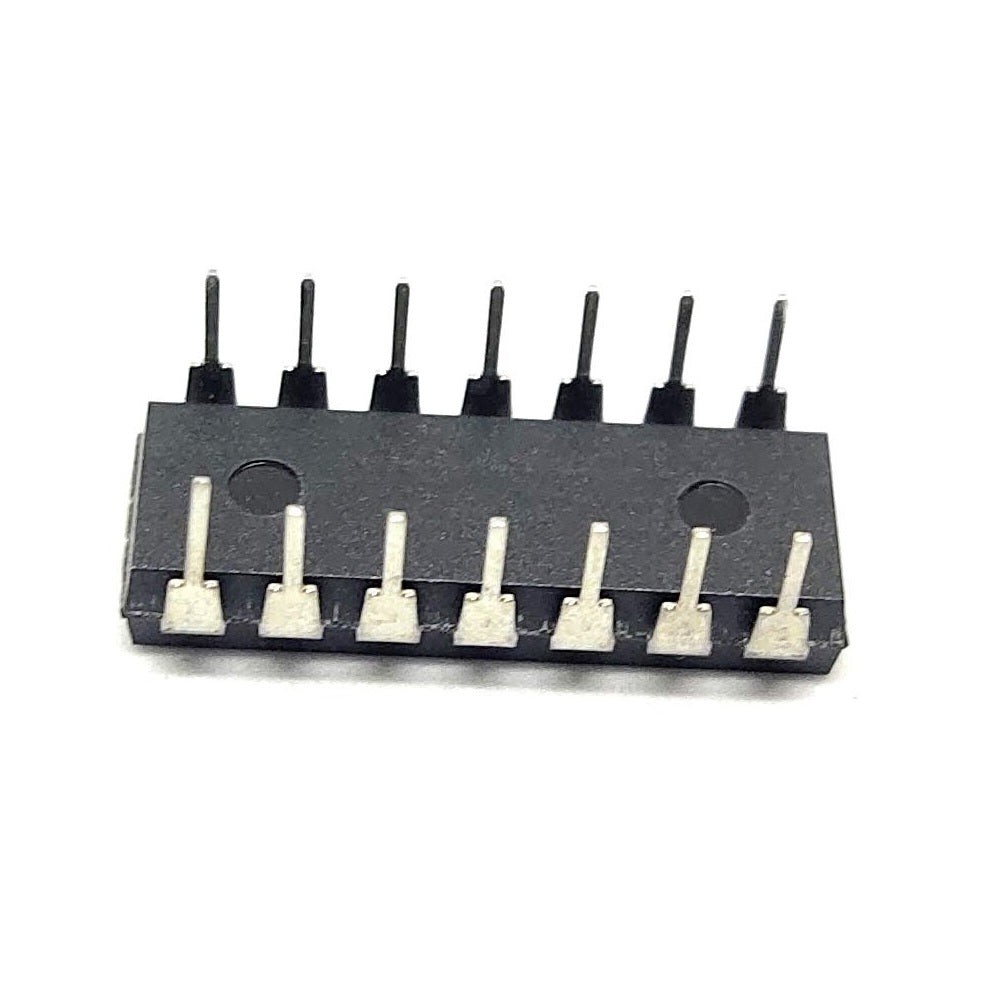

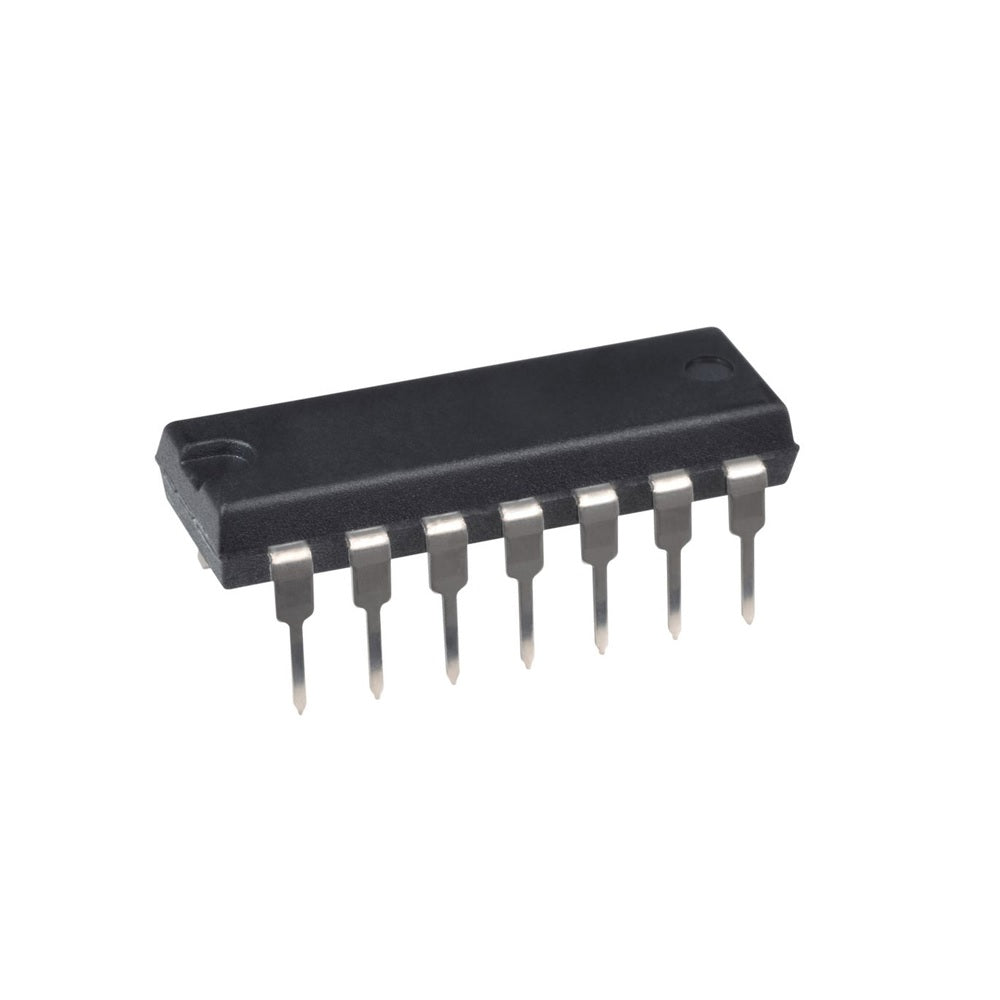

CD4024 7-Stage Binary Counter IC DIP-14 Package

SKU: 0010020

Quantity: 1 Pc
Sale price Rs. 10.17 (excl.18% GST)
Rs. 12.00


CD4024 is a part of the CD4000 IC series. CD4024 is a 7-stage ripple-carry binary counter. Buffered outputs are externally available from stages 1 through 7. The IC is always available in a 14 – pin hermetically sealed dual in line IC package (DIP).

Technical Specification:

  • Part number: CD4024
  • Technology Family: CD4000
  • VCC: 3V to 18V
  • Bits (#): 12
  • Voltage (Nom): 5, 10, 15V
  • F @ nom voltage (Max): 8MHz
  • ICC @ nom voltage (Max): 0.03mA
  • Tpd @ nom Voltage (Max):160ns
  • IOL (Max): 1.5mA
  • IOH (Max): -1.5mA
  • Operating temperature range (C): -55°C to 125°C


  • Three Independent 3-input NAND Gates
  • Standard Pin Configuration
  • Wide Operating Voltage Range
  • Low Power CMOS


  • Frequency counters
  • Digital clocks
  • Analog to digital convertors
  • With some changes in their design, counters can be used as frequency divider circuits
