Description

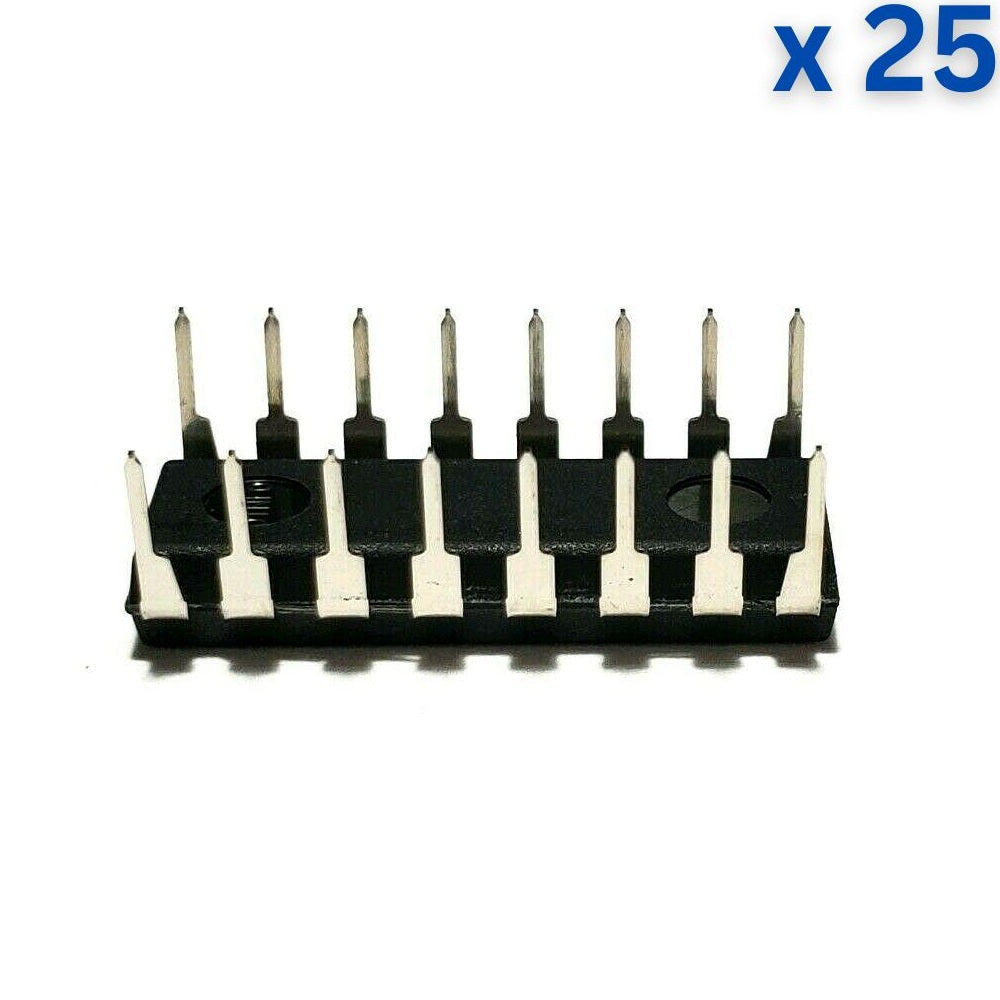

CD4017 belongs to the CD4XXX IC family. The CD4017 is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit. The IC is a 16 pin CMOS decade counter/Divider IC with 10 outputs.
Technical Specification:
- Wide supply voltage range: 3.0V to 15V
- High noise immunity: 0.45 VDD (typ.)
- Low power Fan out of 2 driving 74L
- TTL compatibility: or 1 driving 74LS
- Medium speed operation: 5.0 MHz (typ.)
- Low power: 10 µW (typ.)
Features:
- 5-stage Divide-by-10 Johnson Counter with 10 Decoded Output and a Carry Bit
- Medium Speed up to 5MHz
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Automotive
- Instrumentation
- Medical electronics
- Alarm systems
- Industrial electronics
- Remote metering
