Description

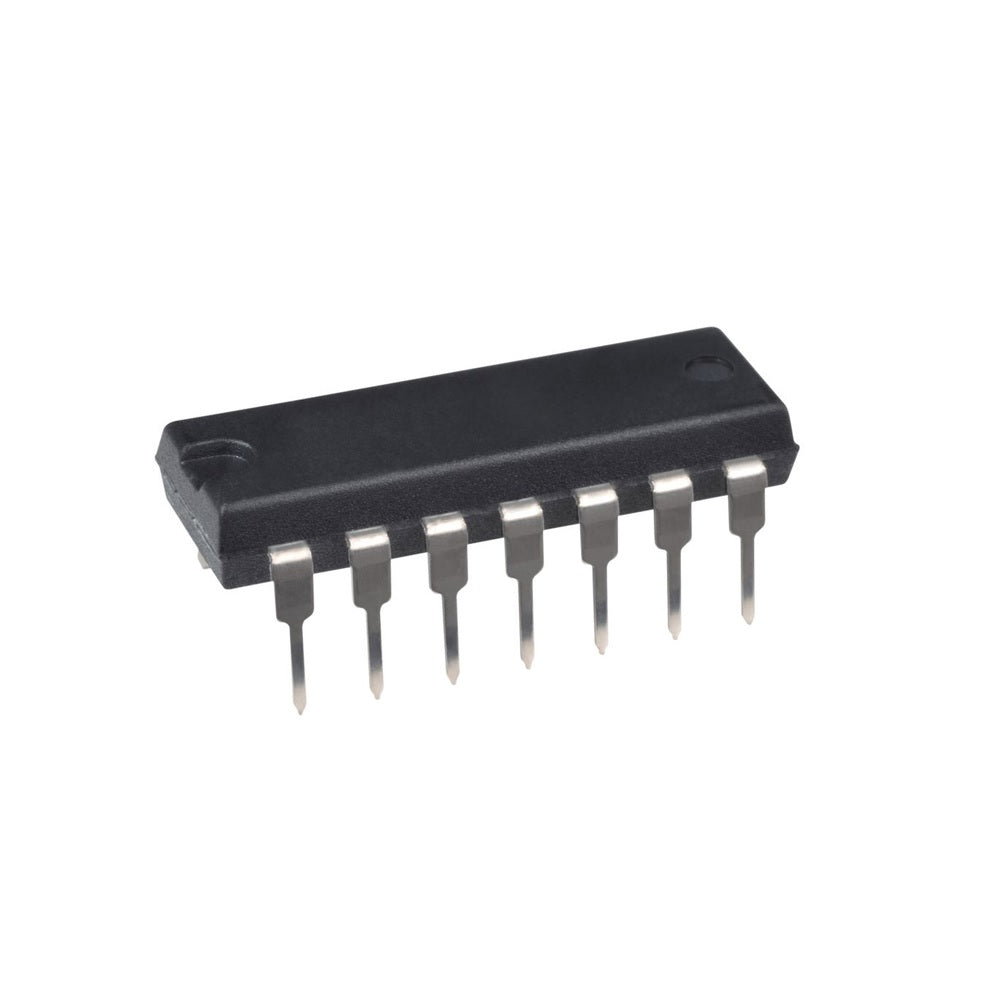

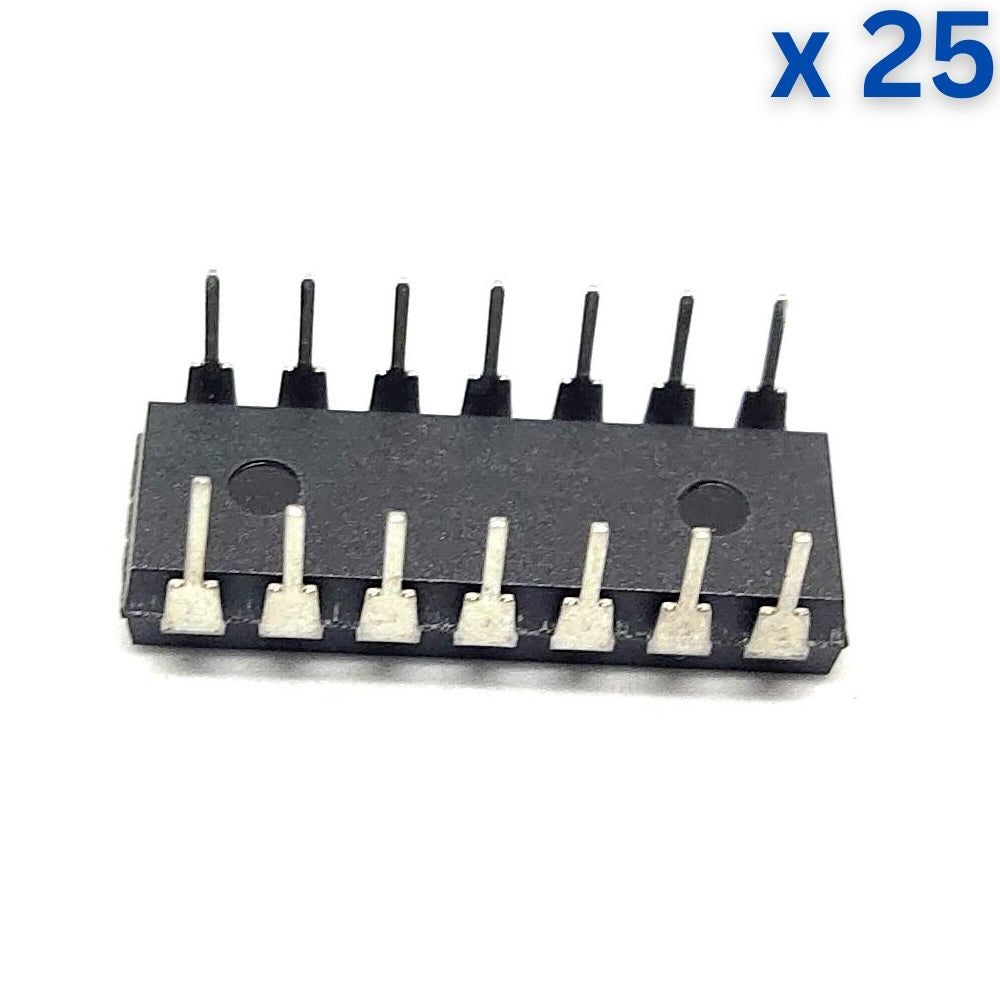

CD4013 is a part of the CD4000 IC series. CD4013 consists of two D-flip flops, constructed by using the complementary MOS (CMOS) technology, integrated with p-type and n-type enhancement mode transistors.
Technical Specification:
- Part number: CD4013
- Technology Family: CD4000
- Output type: Push-Pull
- VCC:3V to 18V
- Channels (#): 2
- Clock Frequency (Max) (MHz): 24MHz
- ICC: 600 uA
- IOL: 6.8mA
- IOH: -6.8mA
Features:
- Two Independent Flip-Flops with Set, Reset and Clock Inputs
- Standard Pin Configuration
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Automotive
- Data terminals
- Instrumentation
- Medical electronics
- Alarm system
- Industrial electronics
- Remote metering
