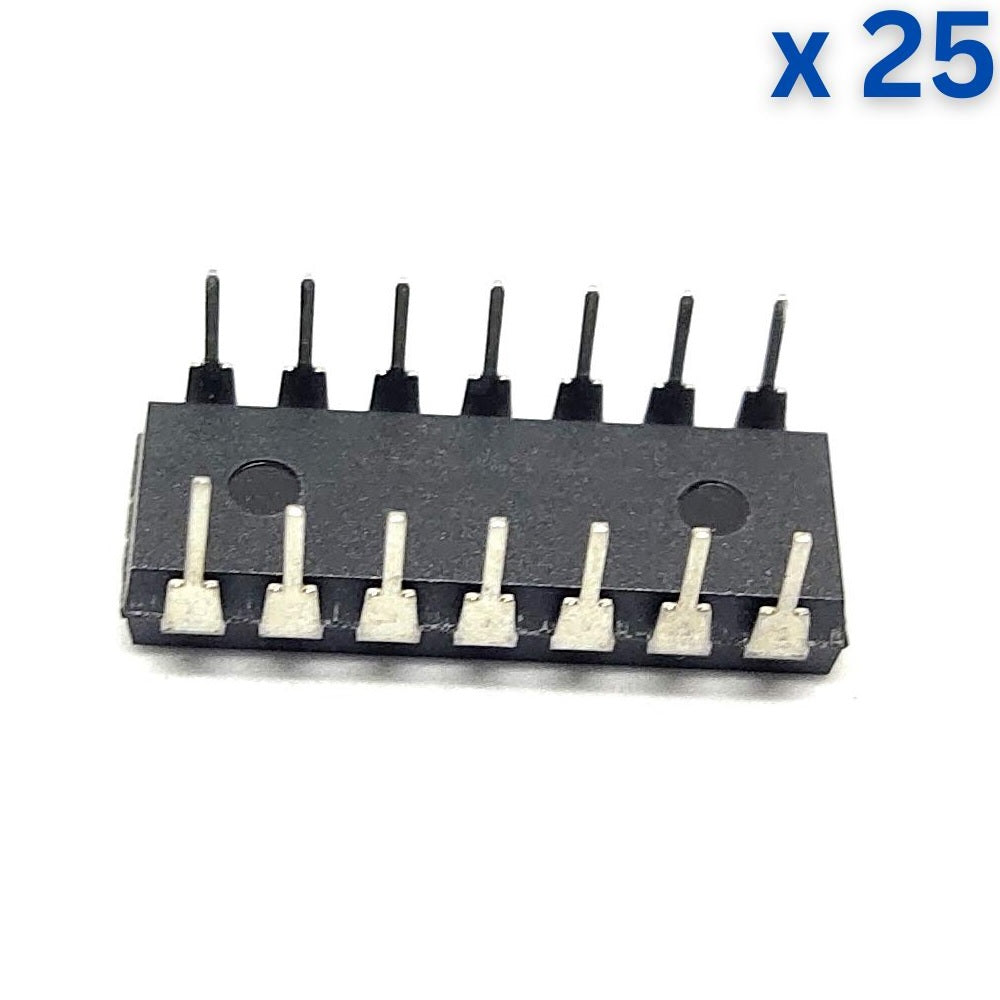

CD4011 Quad 2-Input NAND Gate IC DIP-14 Package

SKU: 0010008

Quantity: 1 Pc
Sale price Rs. 9.32 (excl.18% GST)
Rs. 11.00


The CD4011 is a quad package 2-Input NAND gate IC. That is, it has four NAND gates inside a single package and each gate has two input lines and one output line. All the inputs and outputs are buffered and this improves transfer characteristics by providing very high gain.

Technical Specification:

  • Dual Input NAND Gate – Quad Package
  • Typical Operating Voltage: 5V
  • High-Level Output Current:- 1.5 mA
  • Low-Level Output Current: 1.5mA
  • Propagation Delay Time:60 ns
  • Operating Temperature Range: -55°C to +125°C


  • Four Independent 2-input NAND Gates
  • Standard Pin Configuration
  • Wide Operating Voltage Range
  • Operating Temperature to 85°C
  • Low Power CMOS


  • AV Receivers
  • Portable Audio Docks
  • Blu-Ray Players
  • Home Theater
  • MP3 Players or Recorders
  • Personal Digital Assistants (PDAs)
