Description

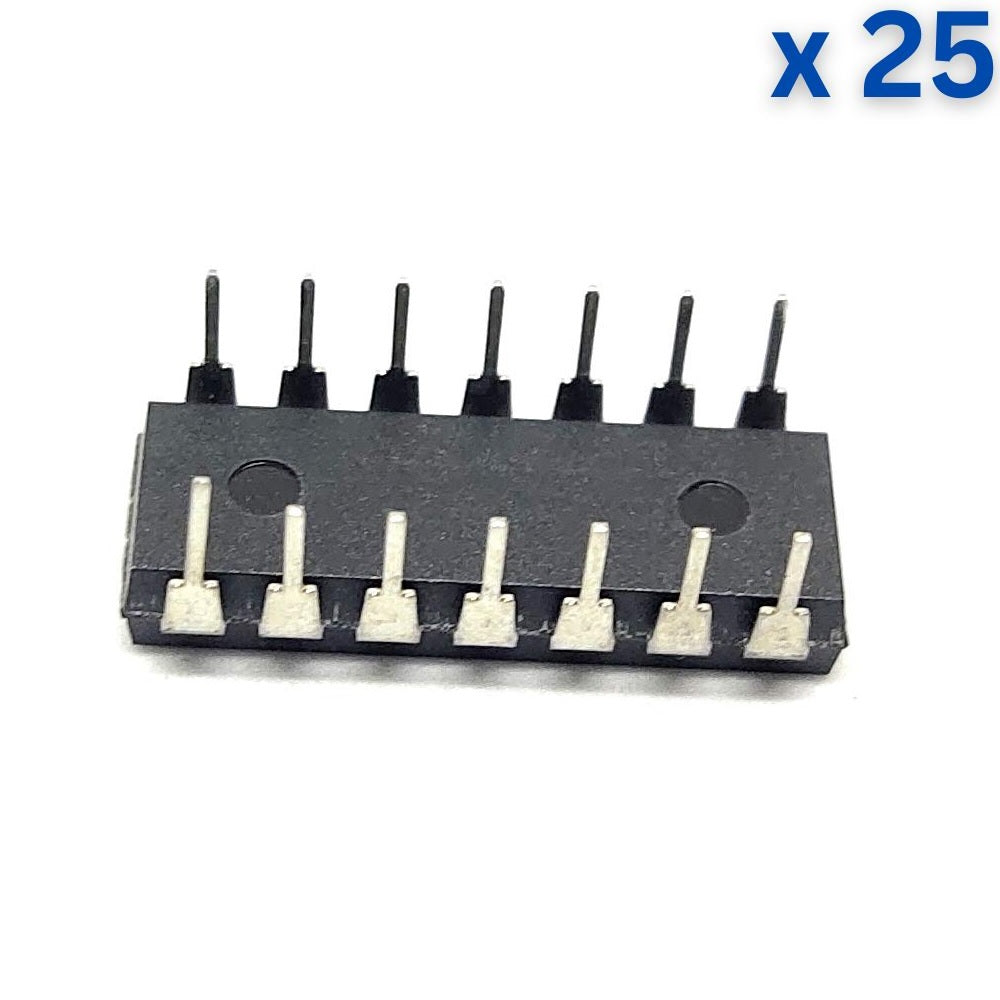

CD40106 is a Hex Schmitt trigger designed using monolithic complementary MOS (CMOS) technology. It is integrated with N and P-channel enhancement transistors. This IC belongs to the CD4000 IC series.
Technical Specification:
- Operating Voltage: 5V
- Low-Level Hysteresis voltage: 0.3V
- High-Level Hysteresis voltage: 3.5V
- Output current High: -1mA
- Output current Low: 1mA
- Quiescent Current: 40 nA
- Propagation Delay Time: 280 ns
- Operating Temperature Range: -55 °C to + 125 °C
Features:
- Hex Schmitt Trigger Circuit
- High Noise Immunity
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Noise removing circuits
- Debouncing circuits
- Hysteresis controller
- Dead band filter
