Description

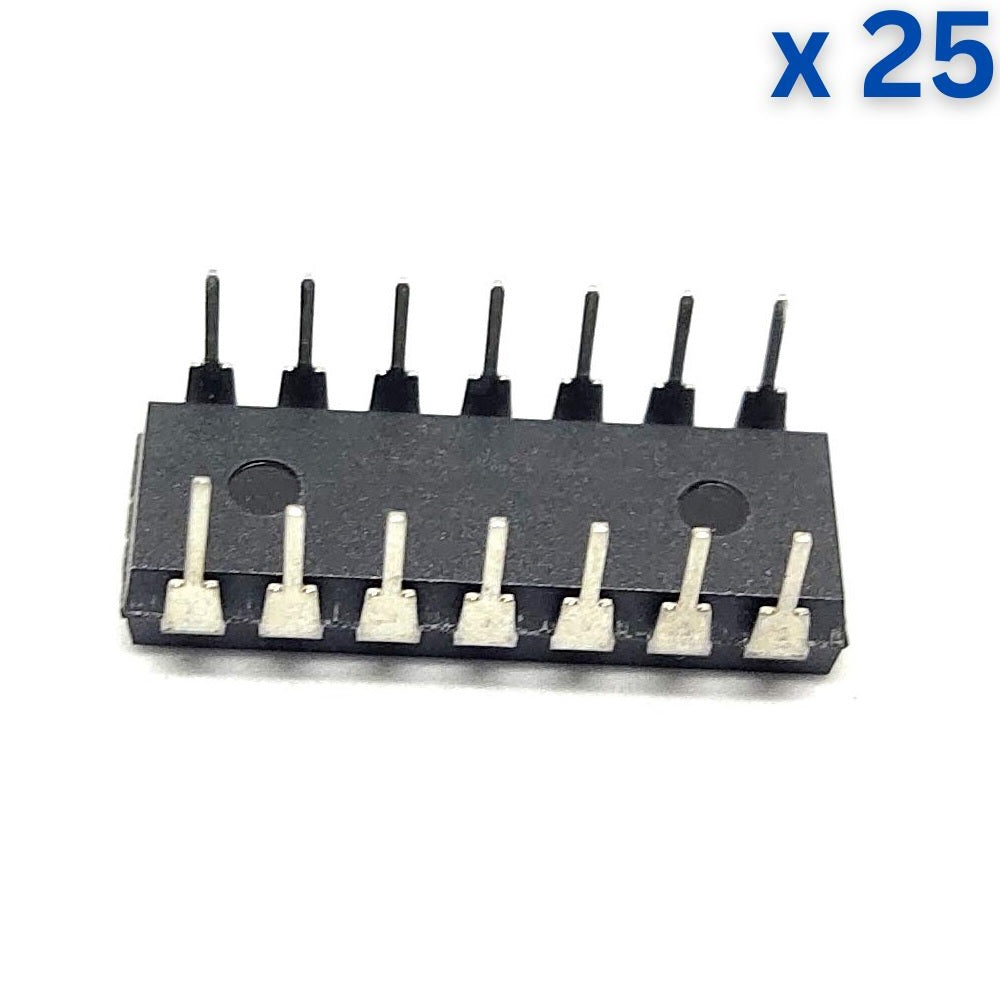

The CD4006 18-stage static shift register belongs to the CD4000 IC series. The IC is comprised of four separate shift register sections, two sections of four stages, and two sections of five stages. Each section has an independent data input.
Technical Specification:
- Voltage Supply: 3.0V to 15V
- High noise immunity: 0.45 VDD (typ.)
- Low clock input capacitance: 6 pF (typ.)
- Medium speed: 10 MHz (typ.) (with VDD = 10V)
Features:
- Four Separate Shift Register Sections
- Two Sections of Four Stages and Five Stages
- Wide Operating Voltage Range
- High Noise Immunity
- Low Power CMOS
Applications:
- Temporary data storage
- Data transfer
- Data manipulation
- As counters
