Description

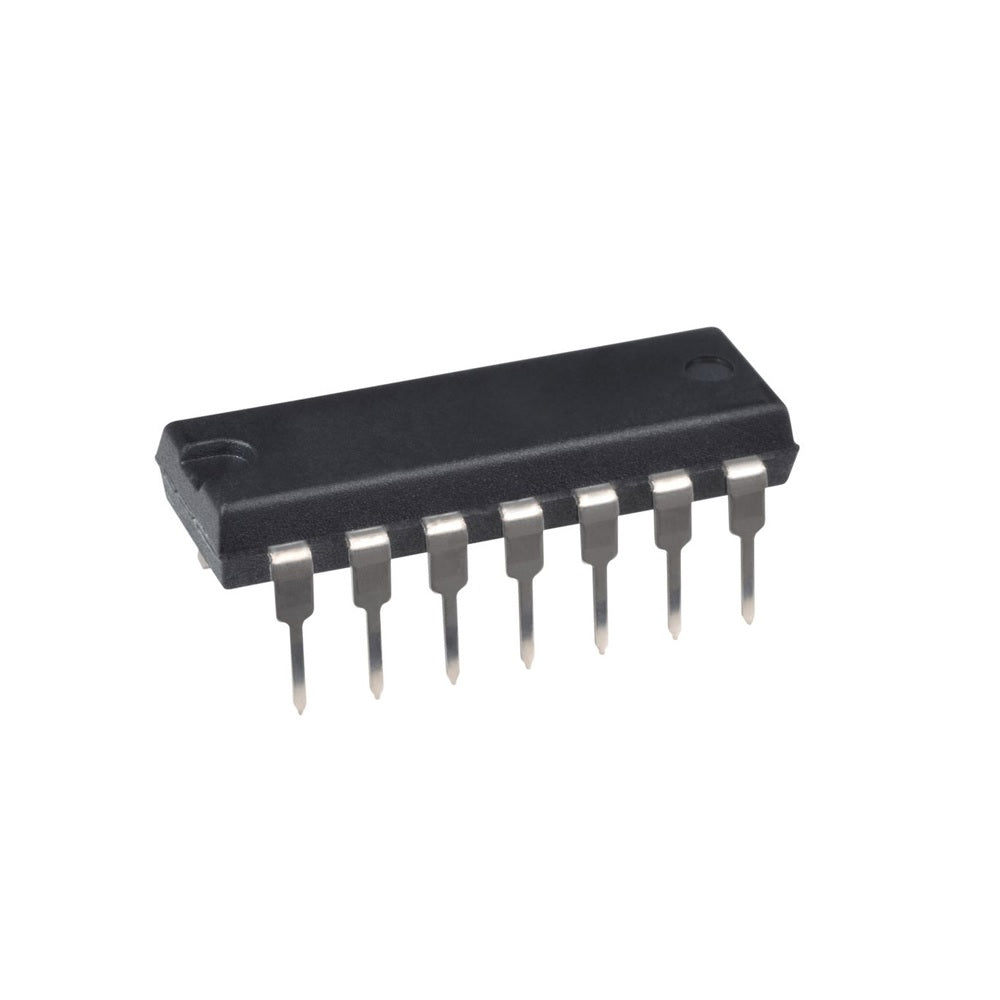

CD4001 is a part of the CD4XXX IC series. CD4001 is a Quad 2-input NOR Gate IC, designed by implementing the complementary MOS technology, integrated with P and N type enhancement mode transistors. This IC allows design engineers to implement positive logic OR gate operation.
Technical Specification:
- Technology Family: CD4000
- VCC (Min): 3V
- VCC (Max): 18V
- Channels (#): 4
- Inputs per channel: 2
- IOL (Max): 6.8mA
- IOH (Max): -6.8mA
- Input type Standard: CMOS
- Output type: Push-Pull
- Speed: (tpd > 50ns)
- Data rate (Max): 8Mbps
- Rating: Catalog
- Operating temperature range: -55 to 125°C
Features:
- Four Independent 2-input NOR Gates
- Standard CD4001 Pin Configuration
- Wide Operating Voltage Range
- Operating Temperature to 85°C
- Low Power CMOS
Applications:
- Servers
- ALUs
- Memory units
- The IC can be used for Noise Removing
- Also used in devices such as PCs and notebooks
