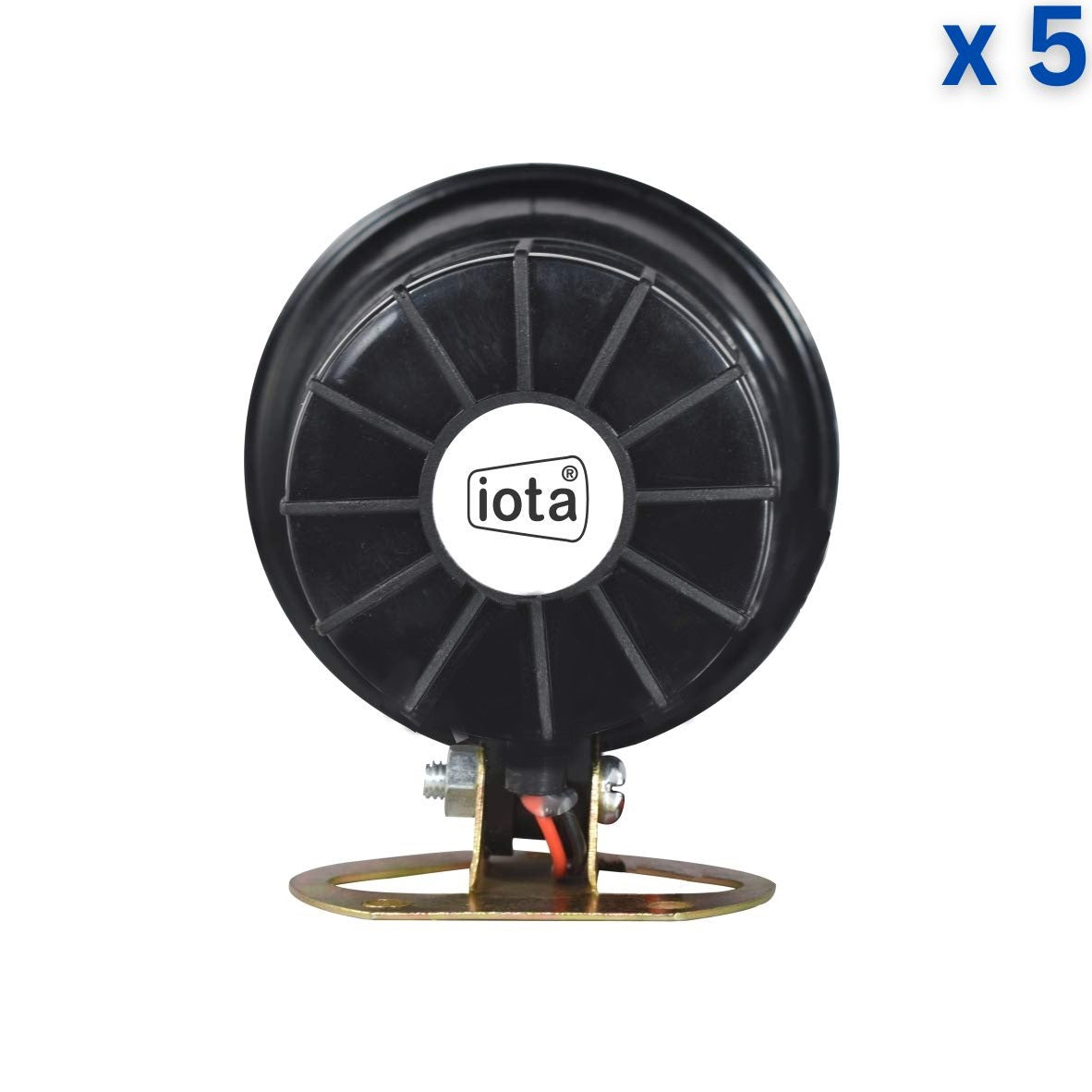

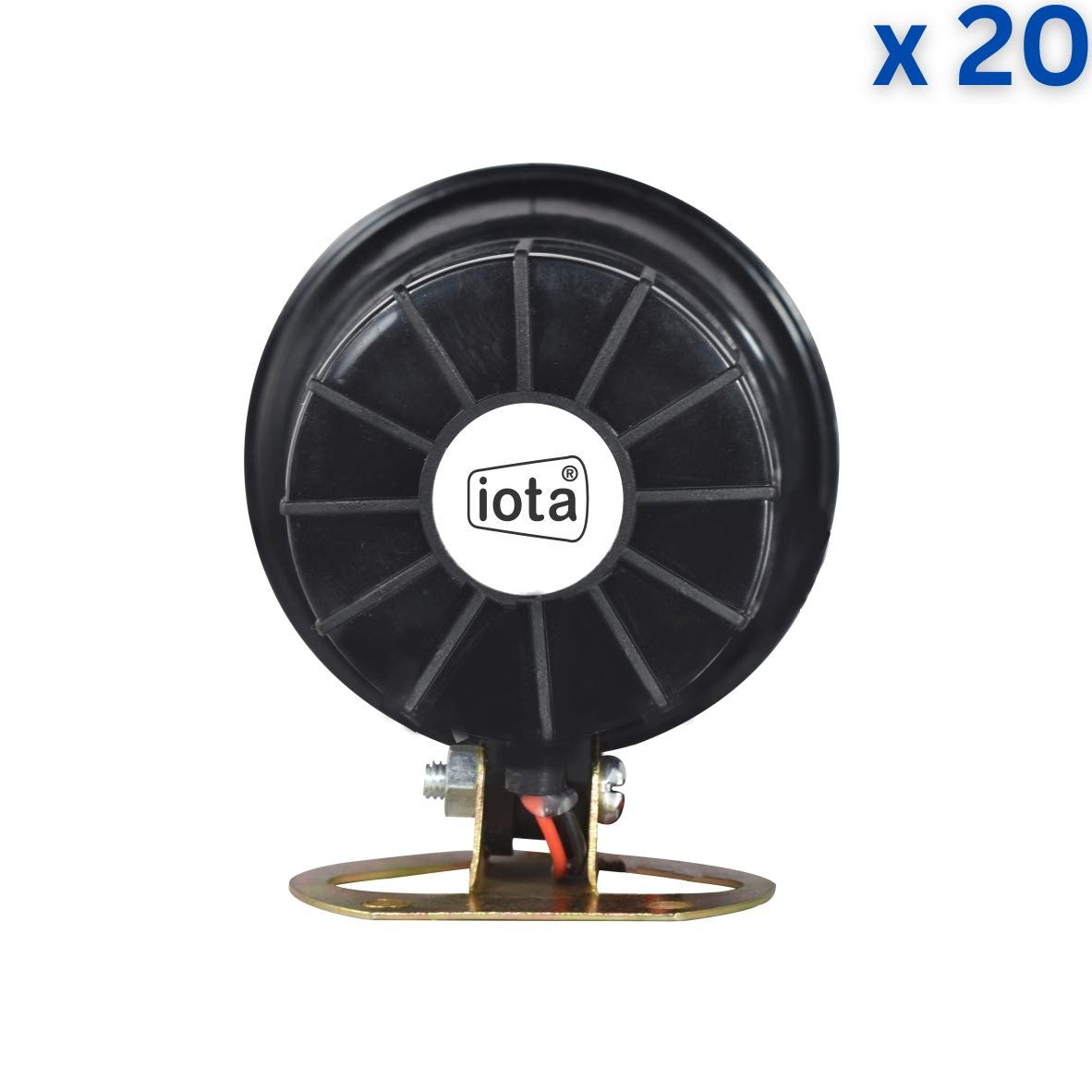

CAP123 - 12V DC Siren

SKU: VC478

Send Inquiry

Description

Siren is a noisemaking device producing a piercing sound of definite pitch. If user require some indications, alertness then siren can be used.

Technical Specification:

  • Product: Electronic Siren - CAP 123
  • Tone: Standard Siren Tone
  • Operating Voltage: 10.5 ~ 14.5Volt DC, Typical 12Volt DC
  • Current: 450 mA (at 12V DC)
  • Sound level: 115dB ±02 dB at 1 Meter Distance (at 12V DC)
  • Operating Temperature: 0° C to +60° C
  • Continuous Operation: Maximum for 20 min at normal room temperature.
  • Material of Housing: ABS 300
  • Color: Black
  • Mounting Bracket: Material is M.S. (Adjustable mounting bracket).
  • Frequency: 800Hz to 1200 Hz (at 12V DC)
  • Synchronization: Signal tone starts at zero point  after every switching

Features:

  • Low energy consumption
  • Low maintenance
  • Absolute reliability

 Applications:

  • Security applications
  • Toys
  • Household appliances
