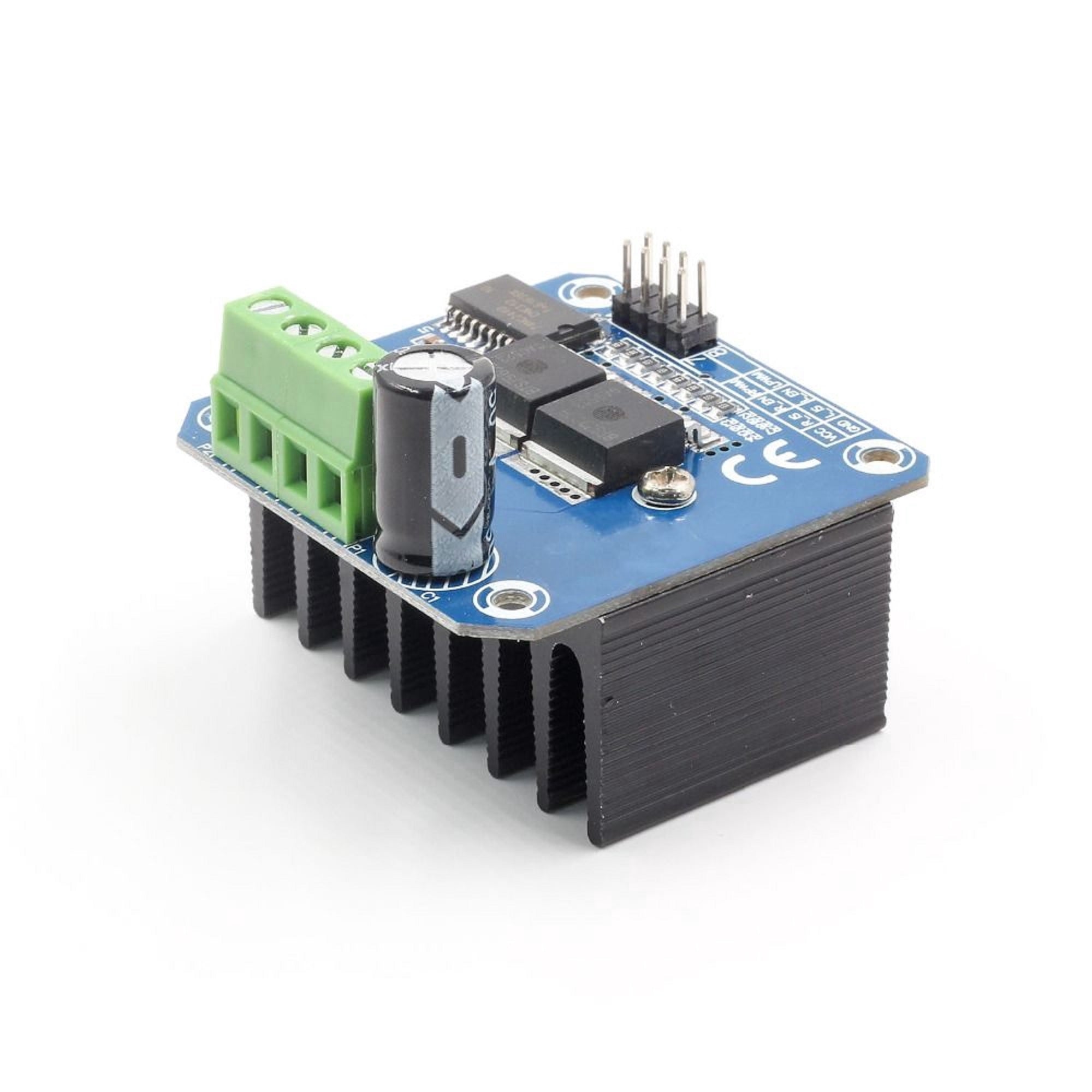

BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module

SKU: VM00718

Price:
Sale price Rs. 630.51 (excl.18% GST)
Rs. 744.00

Description

BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
  • Double BTS7960 large current (43 A) H bridge driver
  • 5V isolate with MCU, and effectively protect MCU
  • 5V power indicator on board
  • Voltage indication of motor driver output end
  • Can solder heat sink
Specification:

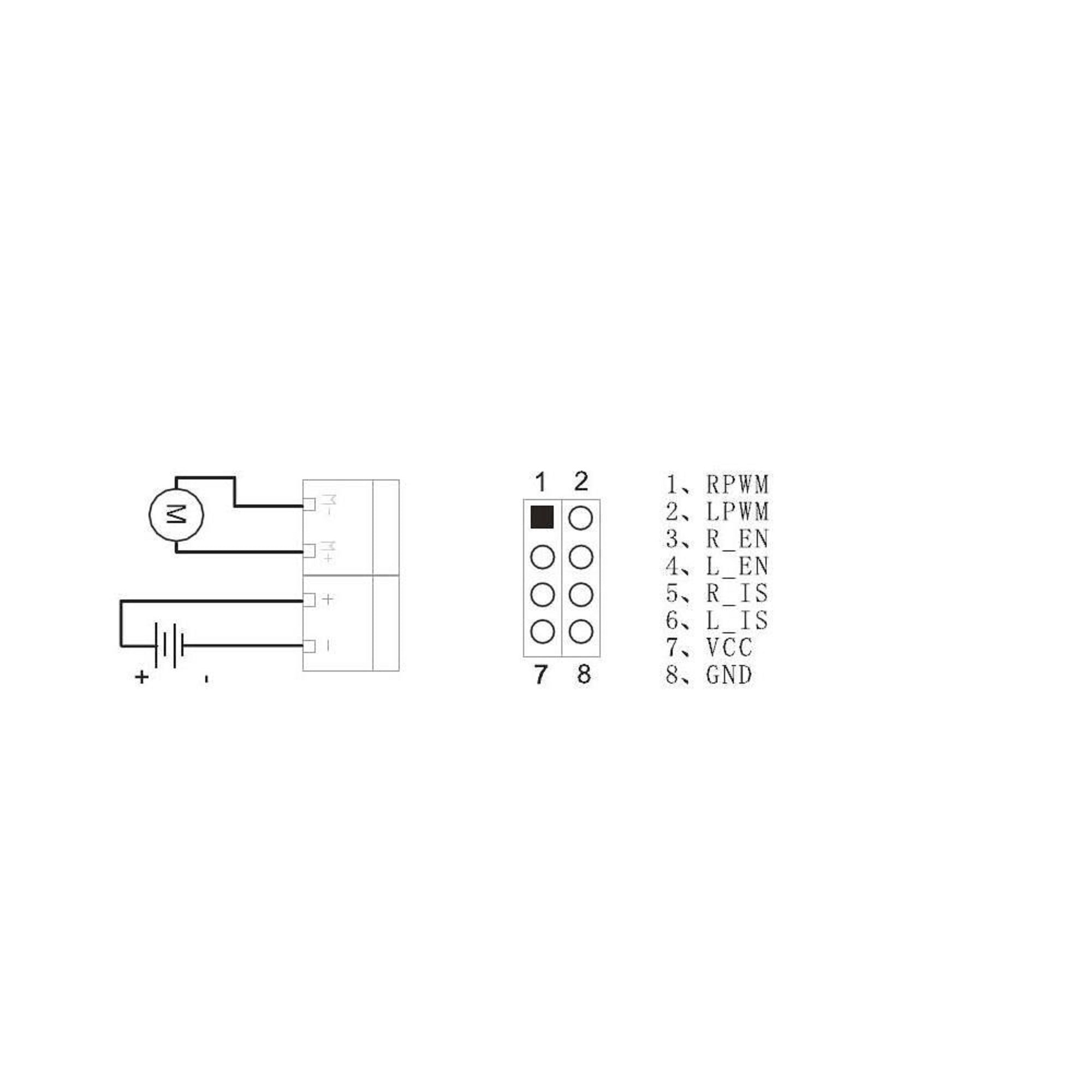

  • Just need four lines from MCU to driver module (GND. 5V. PWM. PWM2)
  • Isolation chip 5 V power supply (can share with MCU 5 V)

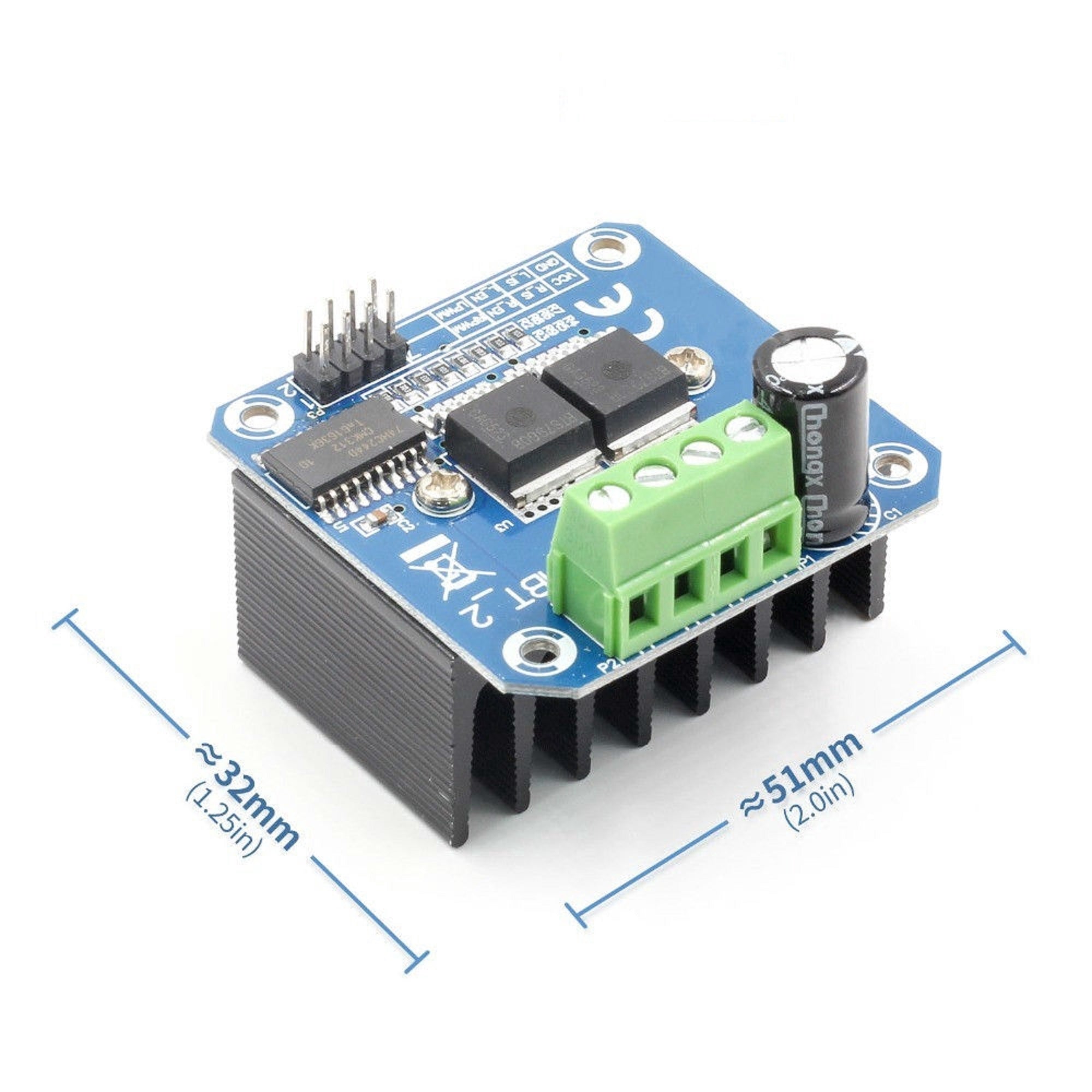

  • Size: Approx. 4 * 5 * .2 cm / .57x.97x0.47inch
  • Able to reverse the motor forward, two PWM input frequency up to 25kHZ
  • Two heat flow passing through an error signal output
  • Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply
  • The supply voltage: 5.5V to 27V
  • Note: The terminal part of this module is blue or green, sent in random
Package Includes:
1 x BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
