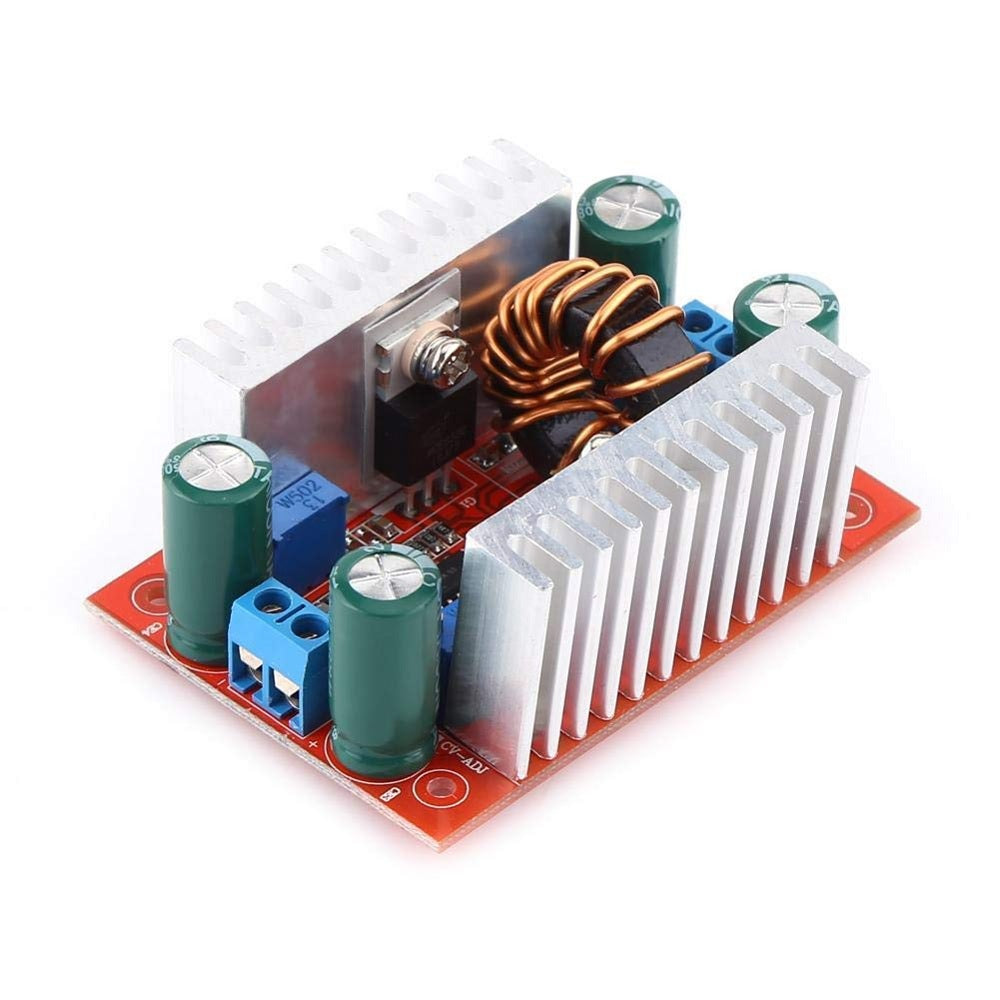

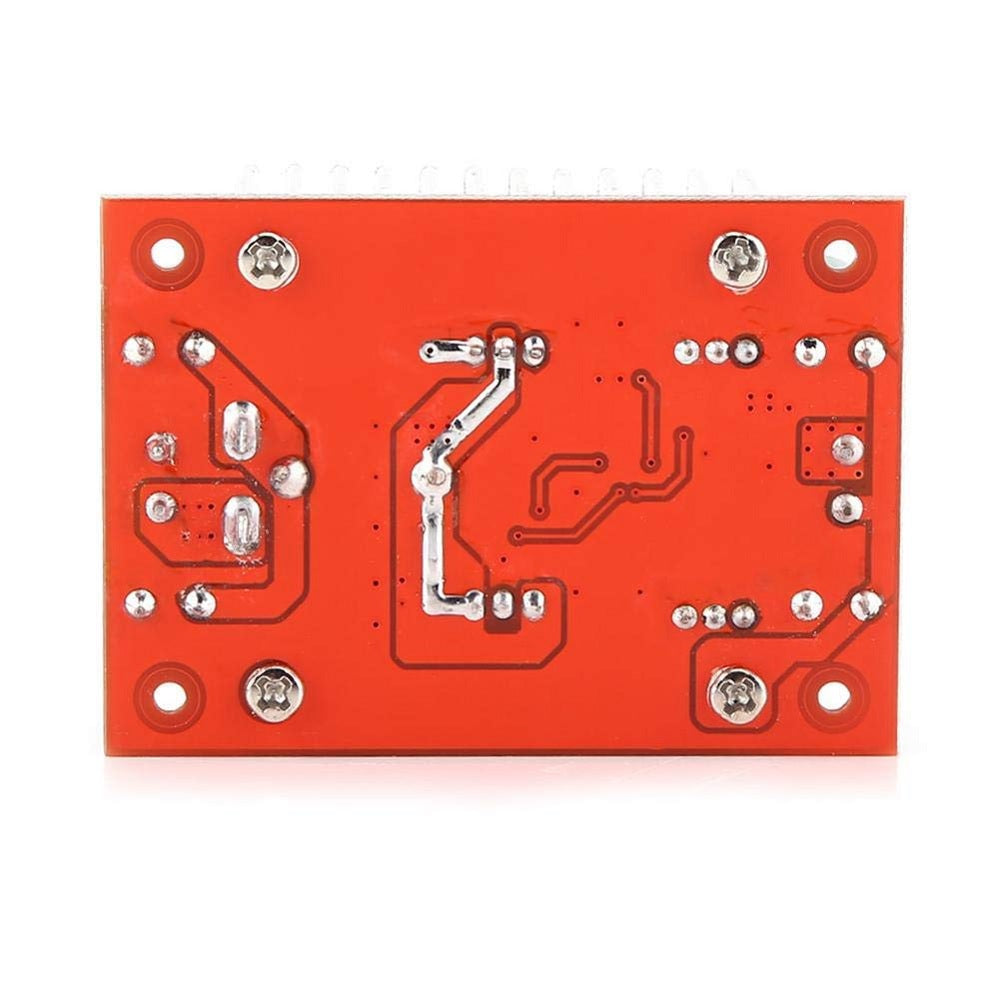

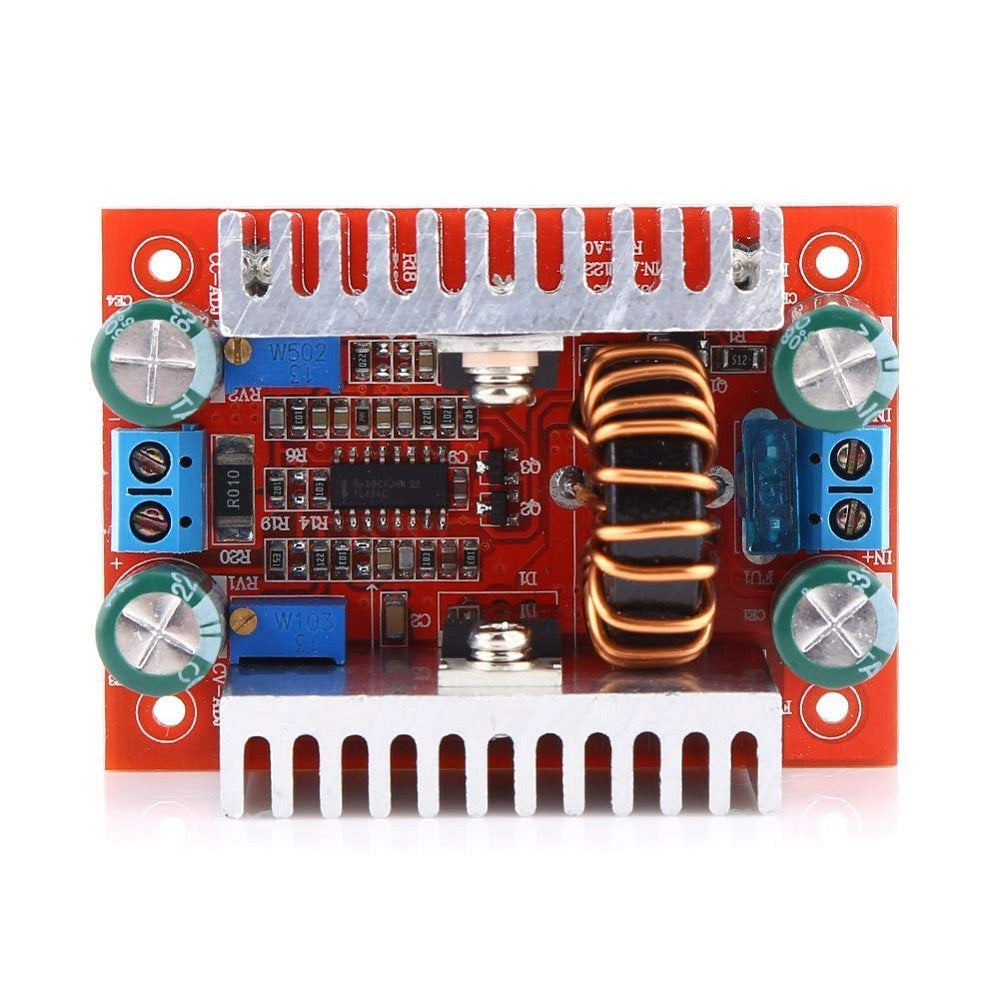

Boost Module 400W DC-DC Step-up Boost Converter Constant Current Power Supply Module LED Driver

SKU: VM00732

Send Inquiry

Description

400W 15A DC-DC Boost Converter Step-up Module is a handy power accessory board that allows you to fine-tune the amount of power your project receives.

Technical Specification:

  • Input voltage: DC 8.5V-50V
  • Input current: 15A (MAX)
  • Output voltage: 10 - 60V
  • Temperature: - 40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
  • Operating frequency: 150KHz
  • Conversion efficiency: up to 96%
  • Overcurrent protection: yes
  • Input reverse polarity protection: no
  • Installation: 4 2.55mm screw holes
  • Connection method: Connection Output
  • Size: 67mm*48mm*28mm (L*W*H)

Features:

  • Module has 2 heat sinks that would ensure a better heat dissipation
  • Wiring is convenient with large current screw terminals

Applications:

  • Can be used for charging batteries
  • Can be used as power supply for any electronic equipment
  • Can be used as a driver for high power LED lights or voltage regulator for solar panels
