Description

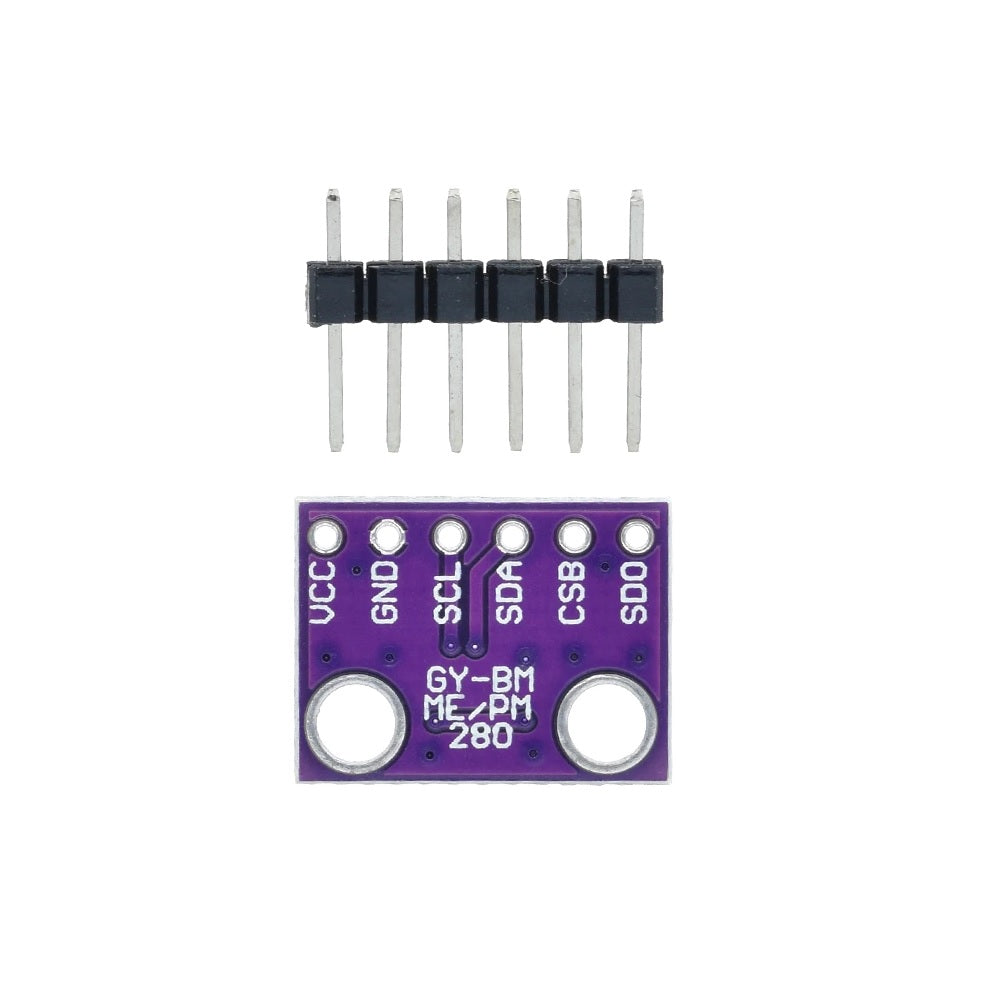

BME280 is a Breakout Board featuring a ME280 Temperature, Humidity & Pressure Sensor. The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm. This module helps us to measure barometric pressure, humidity and temperature readings. Best tiny board to know about atmospheric conditions.
Specification:
- Model: GY-BME280-3.3
- Chip: BME280
- Power Supply: 3-5VDC
- Peak Current: 12mA
- Air Pressure Range: 300-1100hPa (equi. to +9000…-500m above sea level)
- Temperature Range: - 40°C to +85 °C
- Digital Interfaces: I2C (up to 3.4 MHz)
SPI (3 and 4 wire, up to 10 MHz) - Size(LxWxH): 15.5x12x2mm
Features:
- Simple to use
- Comes pre-calibrated
- Requires no additional components
Applications:
- Weather forecast
- Outdoor navigation, leisure & sports
- Home automation control: heating, venting, air condition
- GPS enhance
- Health monitor
- Vertical velocity indication
