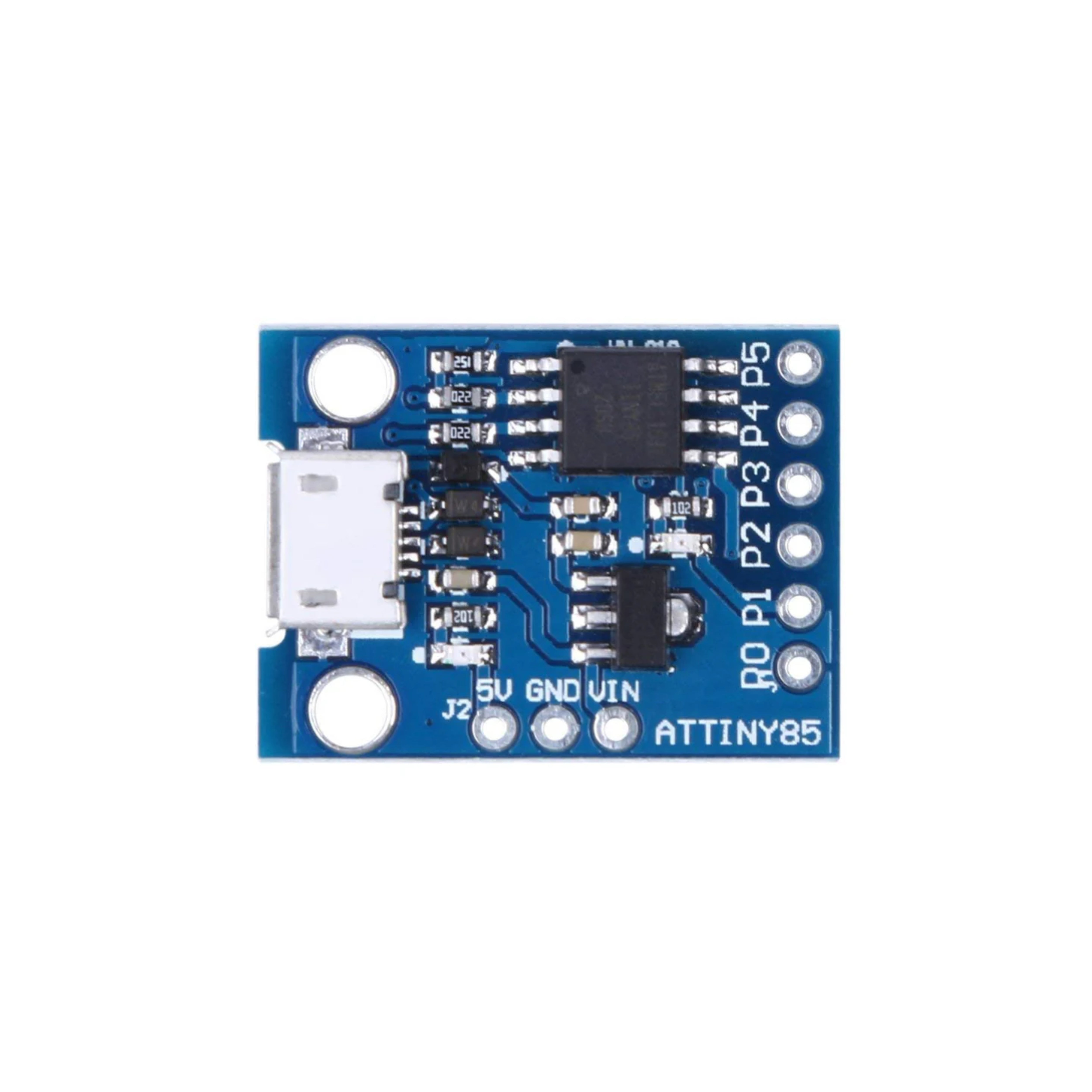

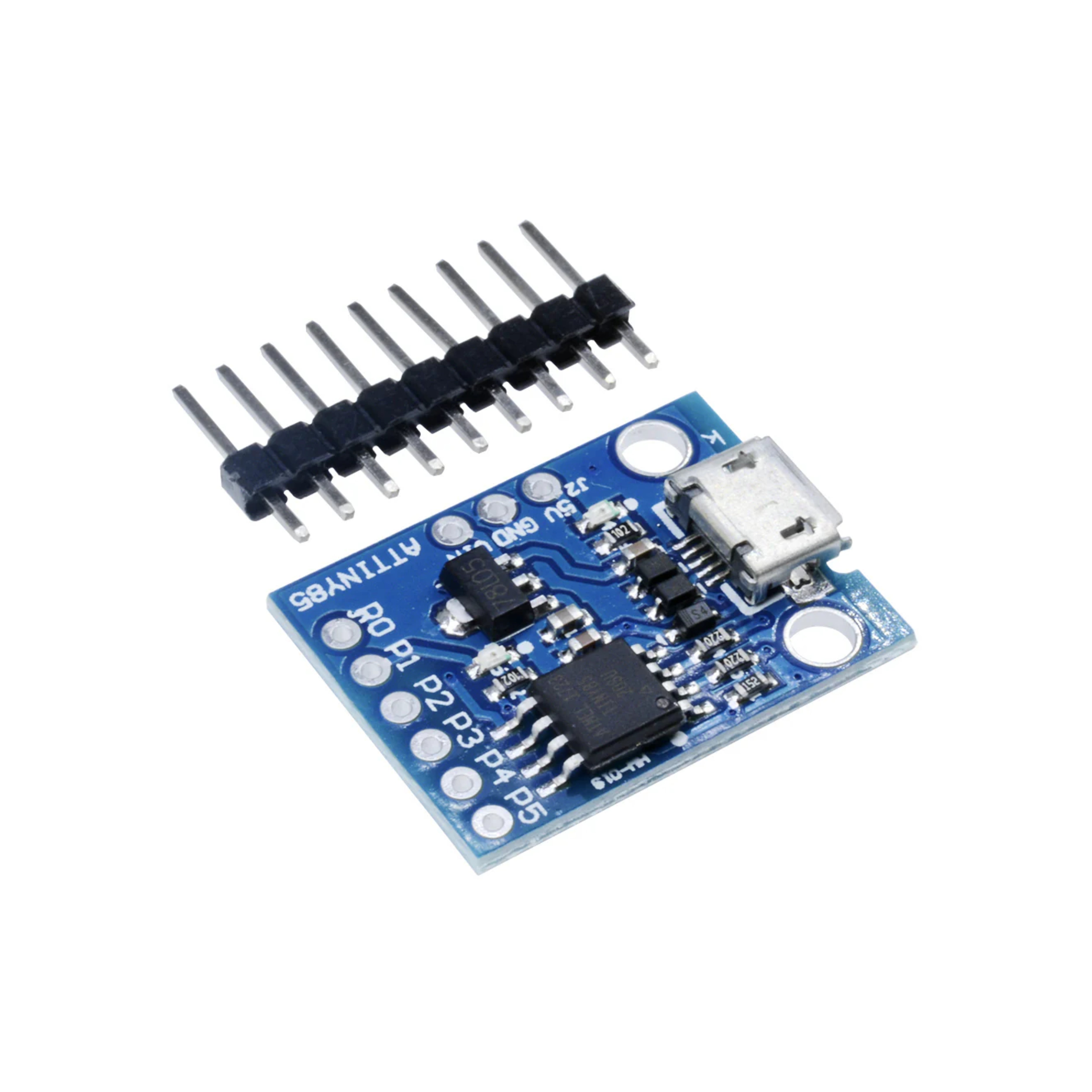

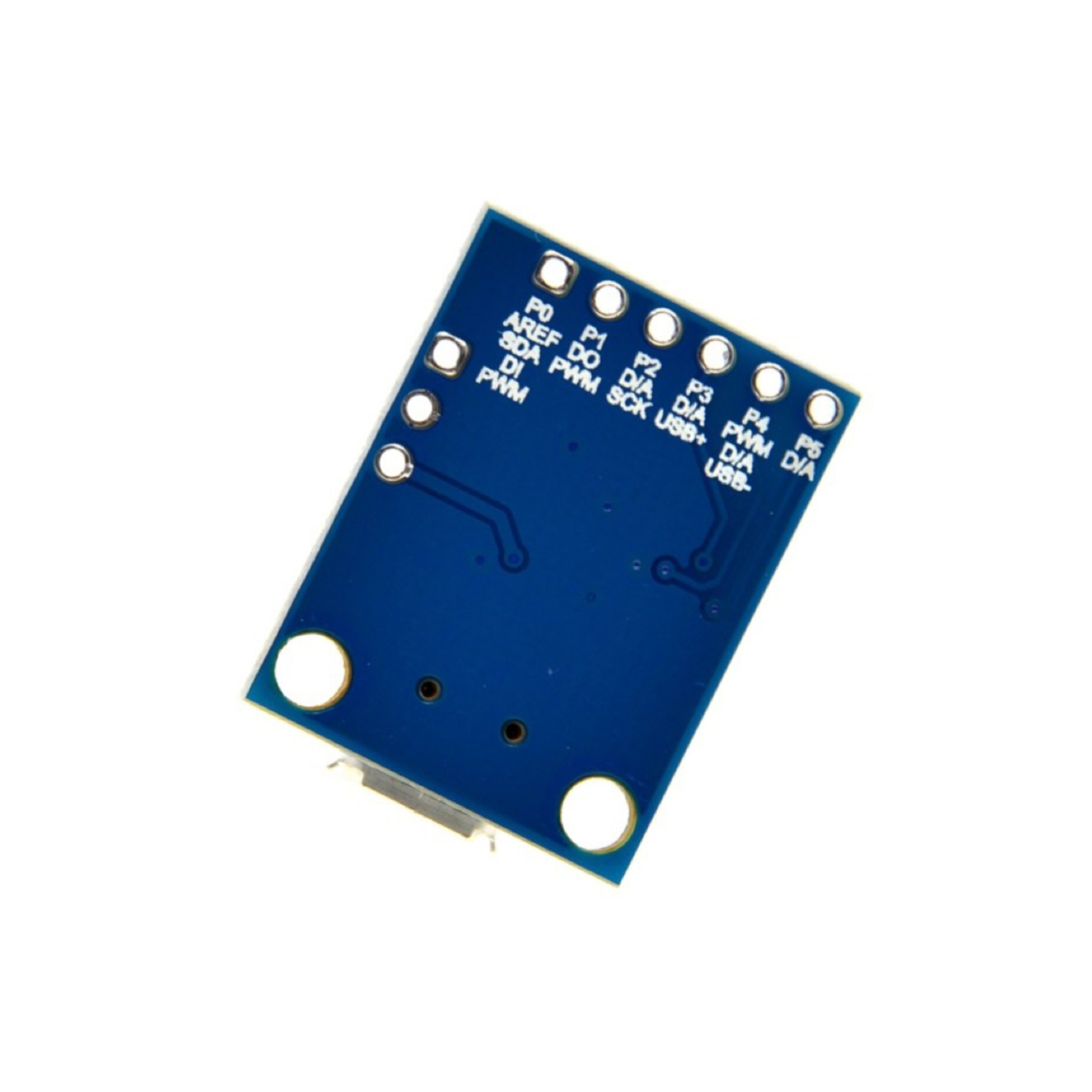

ATtiny85 Micro USB Development Board

The ATtiny85 Micro USB Development Board is a compact, low-cost microcontroller board based on the ATtiny85 AVR 8-bit chip. It is similar to Arduino boards but much smaller and designed for simple embedded and space-constrained applications. The board features a built-in micro USB interface, allowing direct programming without any external programmer, and is fully compatible with the Arduino IDE, making it ideal for beginners, hobbyists, and lightweight IoT projects.

Technical Specifications:

• Microcontroller: ATtiny85 (AVR 8-bit)

• Operating Voltage: 2.7V – 5.5V

• Clock Speed: Up to 20 MHz

• Flash Memory: 8 KB (approx. 6 KB usable)

• SRAM: 512 Bytes

• EEPROM: 512 Bytes

• Digital I/O Pins: Up to 6

• Analog Inputs: 4 (10-bit ADC)

• PWM Outputs: 2–3 channels

• Communication Interfaces: I2C, SPI (via USI)

• Power Supply: Micro USB or external 6–35V DC (regulated to 5V)

Features:

• Compact and lightweight design suitable for embedded systems

• Built-in micro USB for direct programming and power

• Compatible with Arduino IDE (no external programmer required)

• Low power consumption, ideal for battery-powered applications

• Multiple I/O configurations (digital, analog, PWM)

• Supports I2C and SPI communication

• Onboard voltage regulator and status LEDs

• Cost-effective alternative to larger Arduino boards

Applications:

• USB-based microcontroller projects and HID devices

• Small embedded systems and IoT applications

• Home automation and control systems

• DIY electronics and educational projects

• Sensor interfacing and data logging

• Wearable and low-power portable devices

• Prototyping where space and cost are critical
