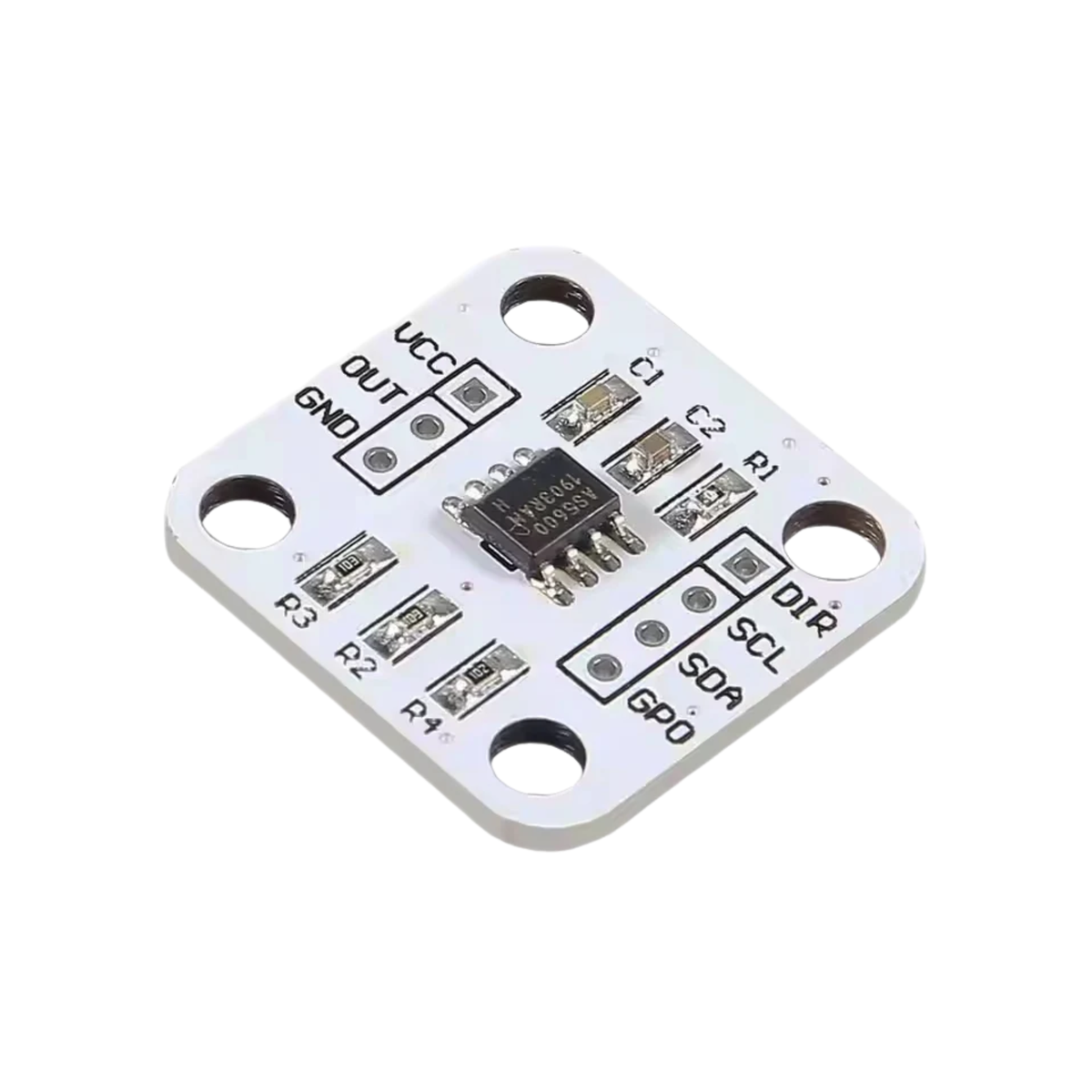

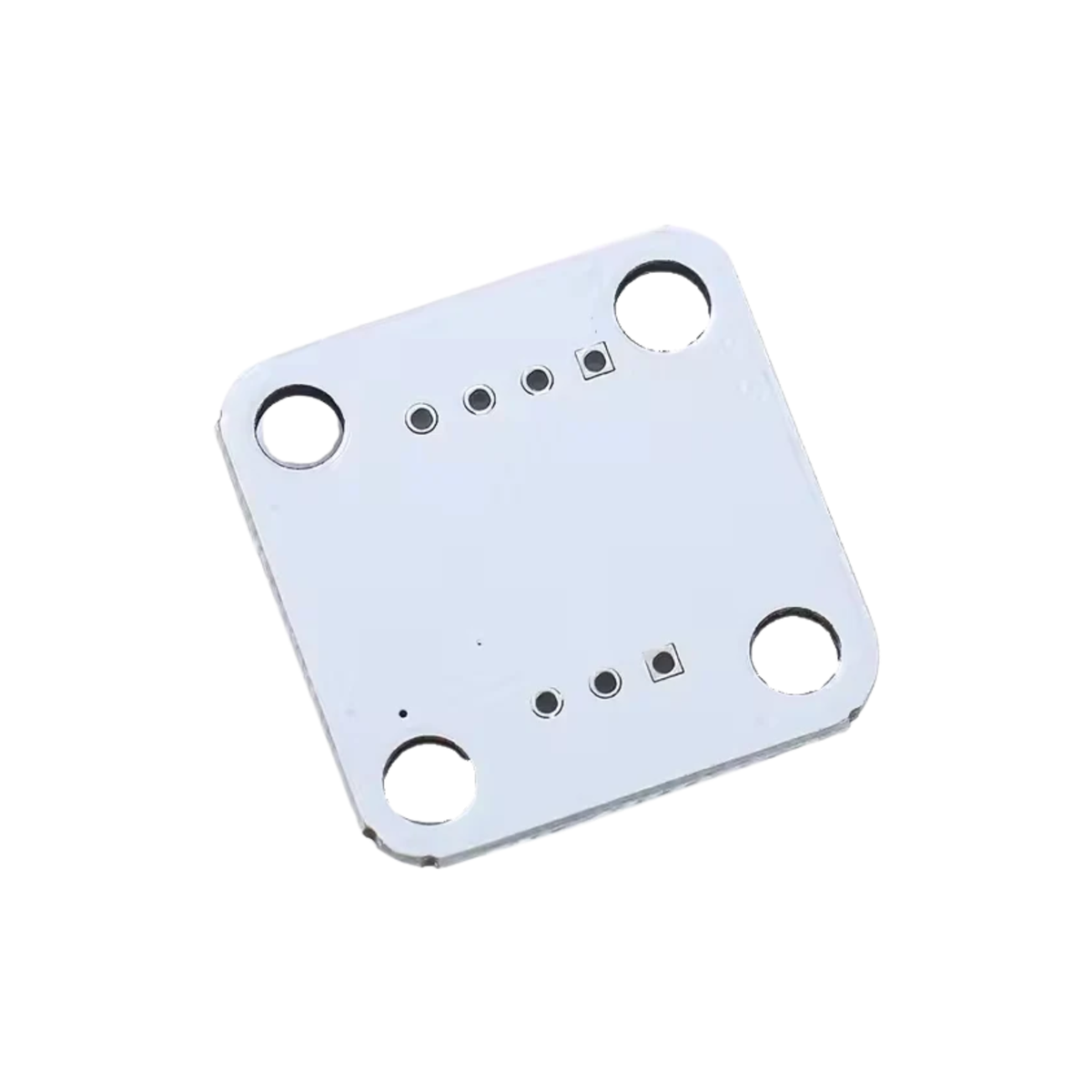

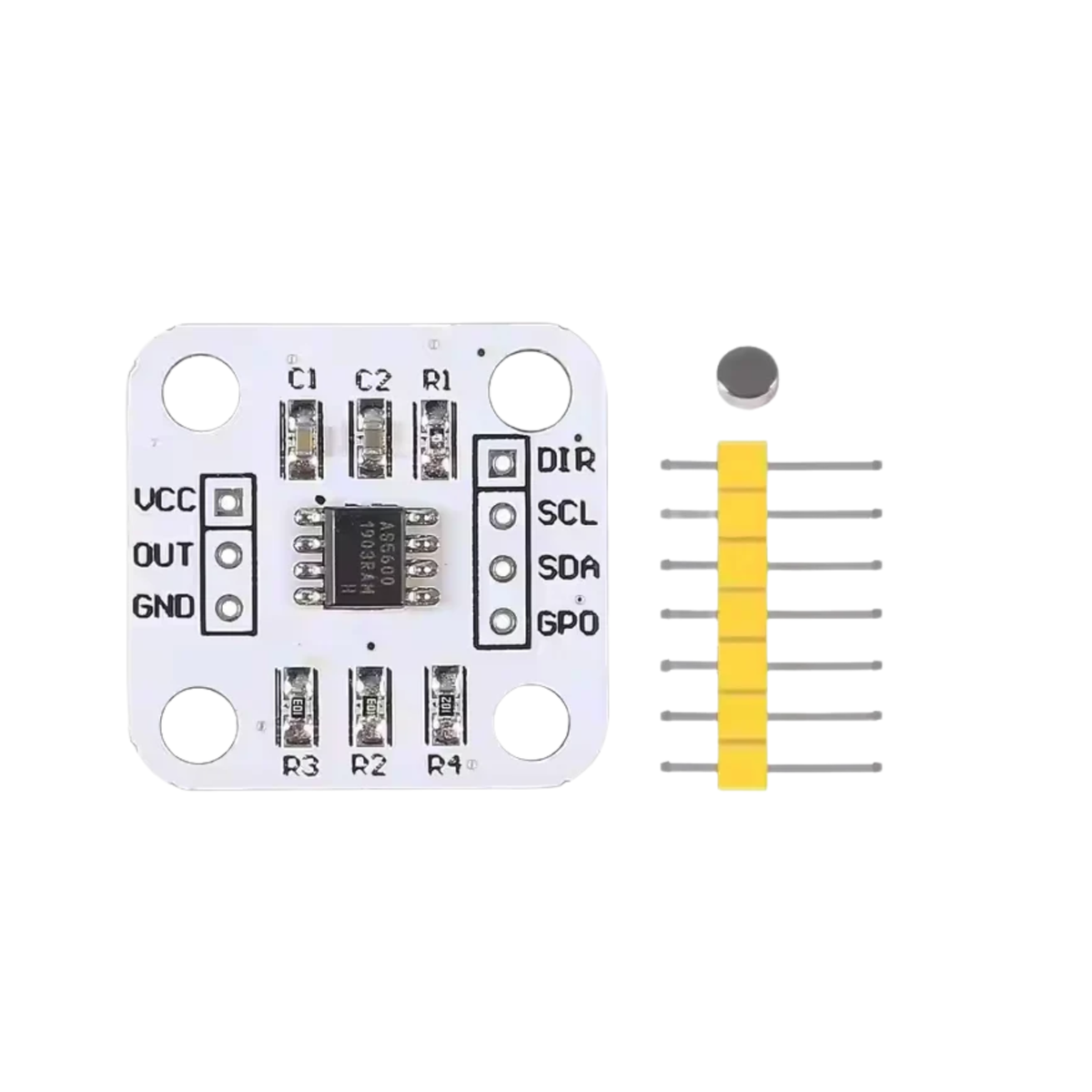

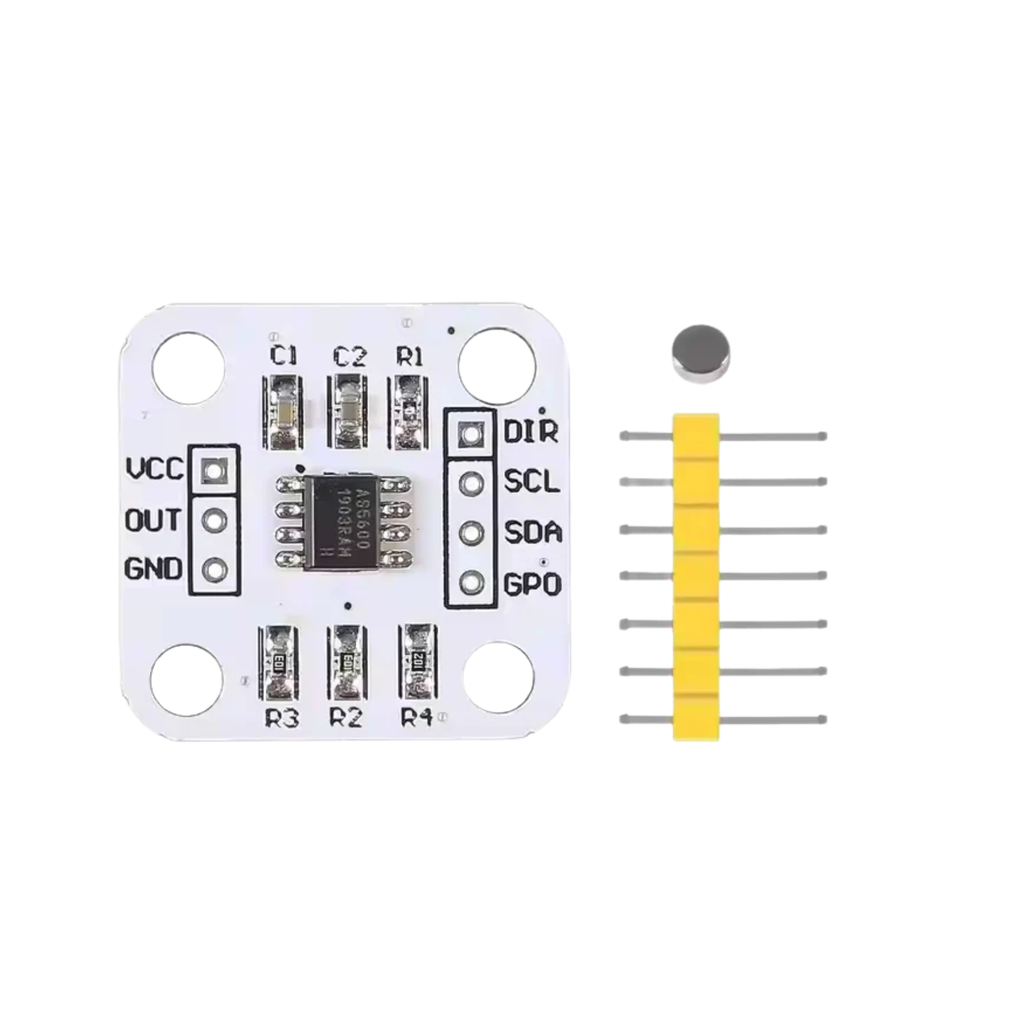

AS5600 Magnetic Encoder Angle Sensor Module

The AS5600 Magnetic Encoder Angle Sensor Module is a contactless rotary position sensor designed to measure the angular position of a rotating magnet. It uses the AS5600 magnetic encoder IC to provide precise 12-bit angle measurement over a full 360° rotation without mechanical contact, reducing wear and improving reliability. The module supports I2C communication and also provides a configurable output for easy connection with Arduino, ESP32, STM32 and other microcontrollers. It is ideal for motor position sensing, rotary controls, robotics and precision angle-measurement projects.

Technical Specifications:

• Sensor IC: AS5600 magnetic rotary position sensor
• Measurement Range: 0° to 360°
• Resolution: 12-bit, 4096 positions per revolution
• Supply Voltage: 3.3V to 5V DC
• Communication Interface: I2C with configurable analog/PWM output

Features:

• Contactless magnetic angle measurement
• Full 360° absolute position sensing
• High-resolution 12-bit digital output
• Direction control for clockwise or counter-clockwise measurement
• No mechanical contact, providing long operating life

Applications:

• BLDC and stepper motor position sensing
• Robotic joints and servo systems
• Rotary knobs and control interfaces
• Shaft position and angle measurement
• Arduino, ESP32 and embedded automation projects
