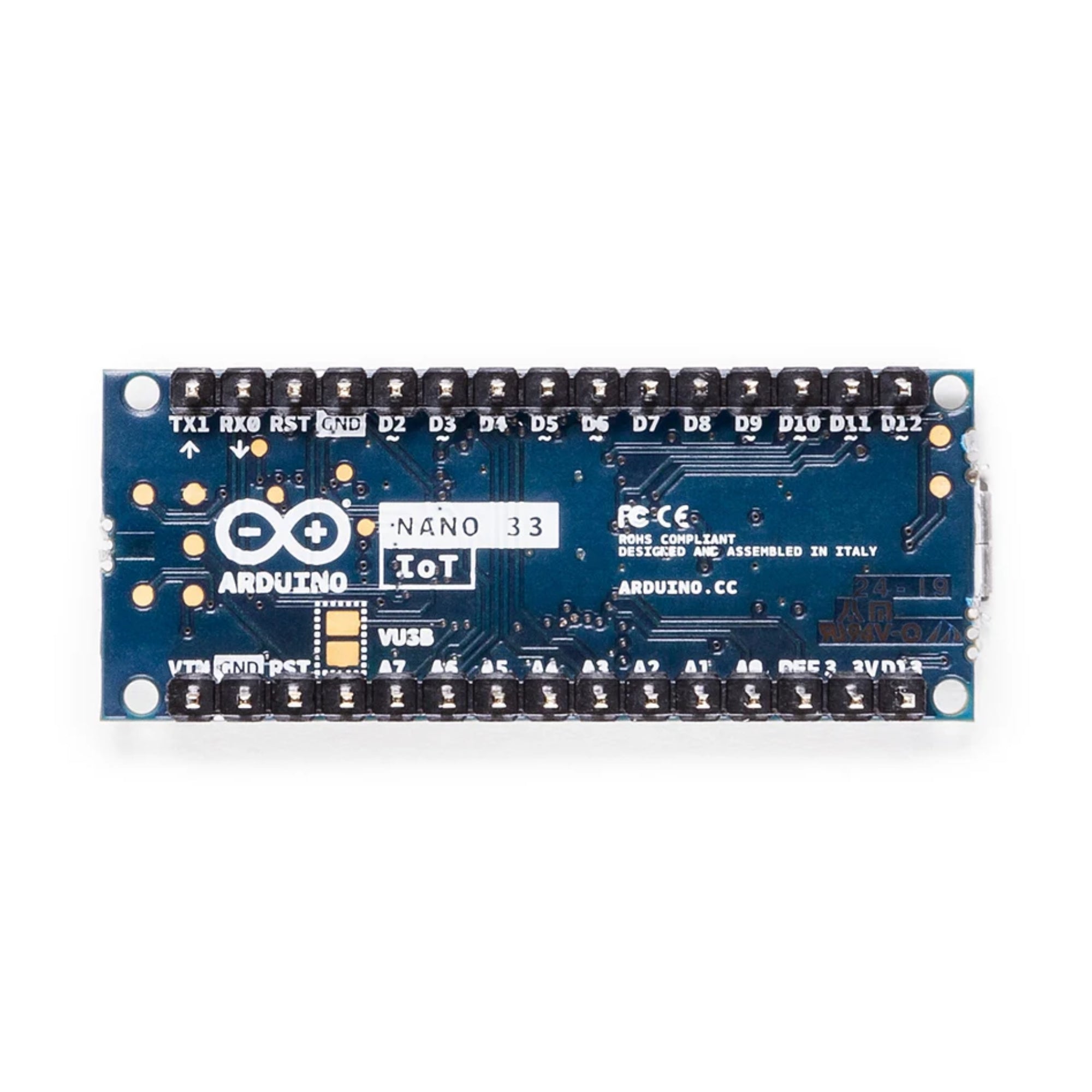

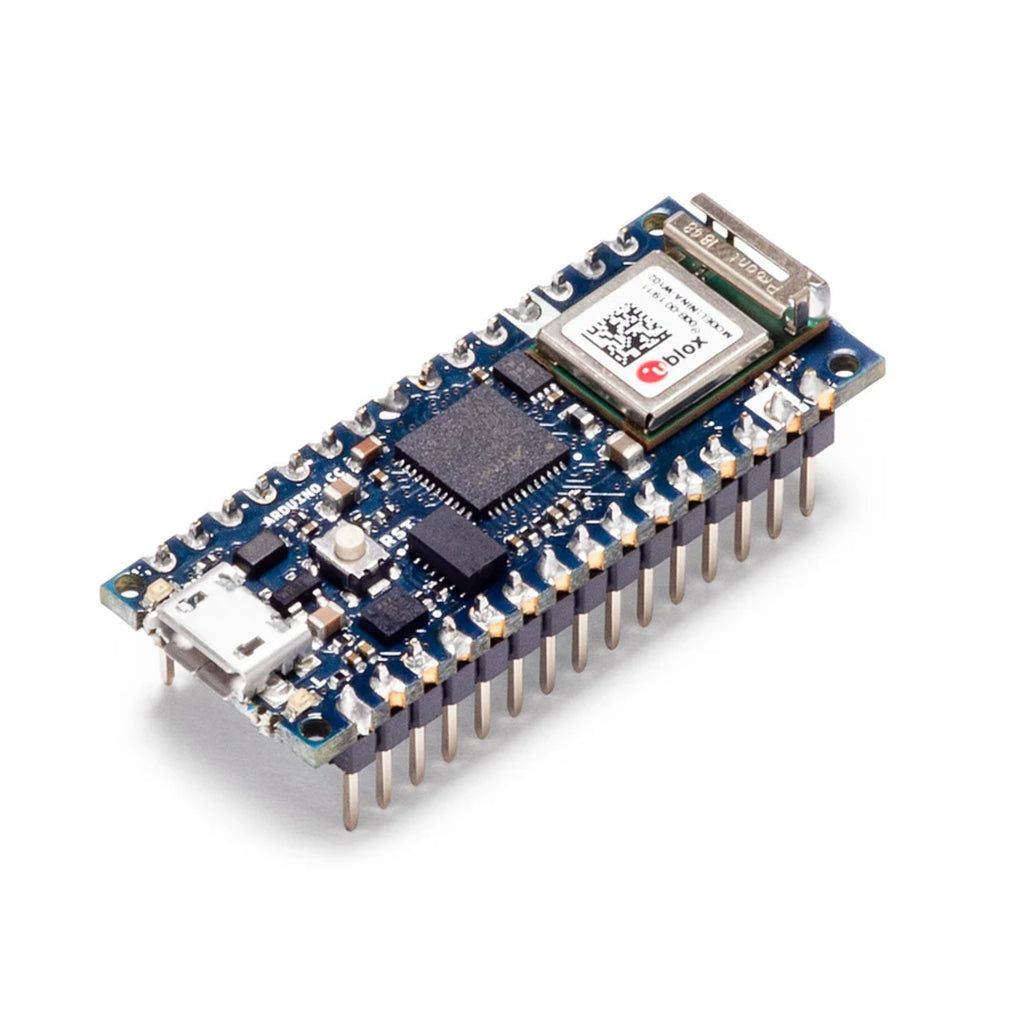

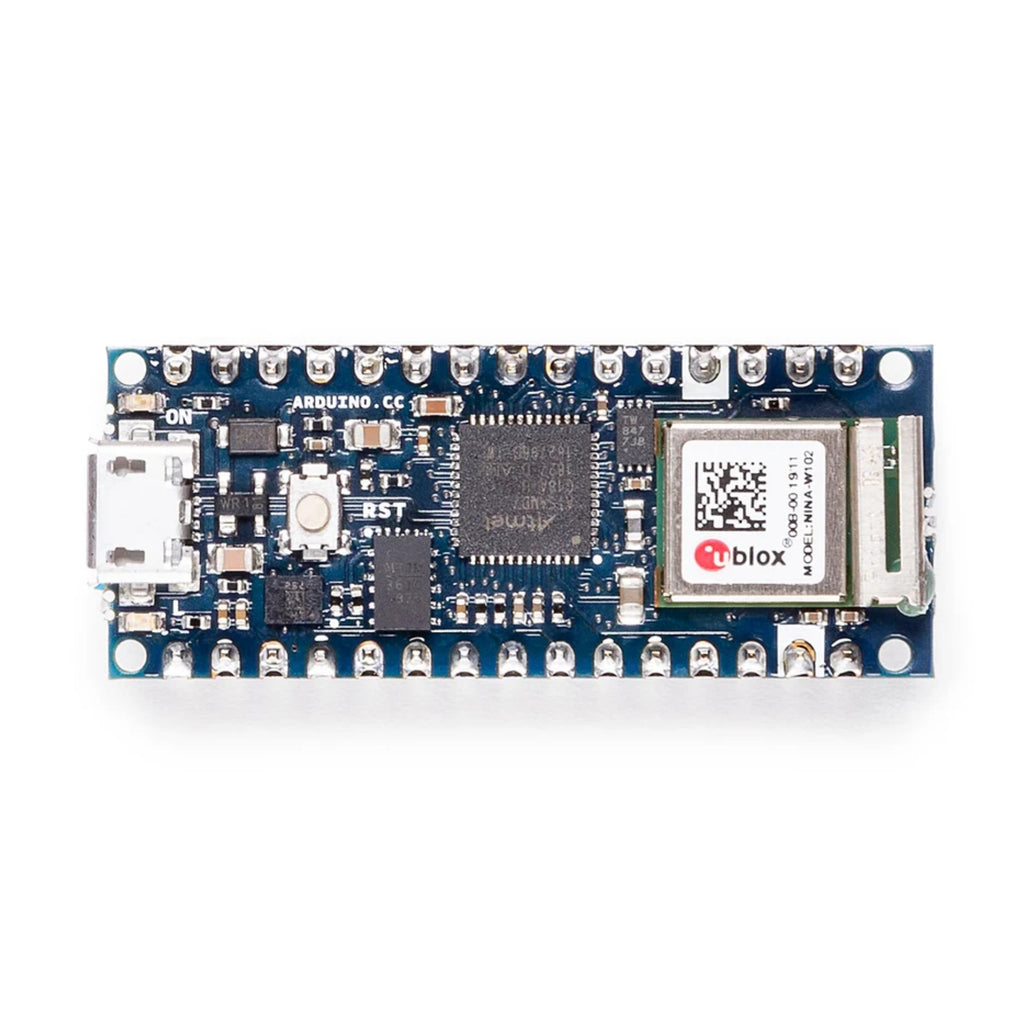

Arduino Nano 33 IOT With Header

Arduino Nano 33 IoT with headers is a compact yet powerful development board designed for IoT applications. It combines a high-performance 32-bit microcontroller with built-in Wi-Fi and Bluetooth Low Energy connectivity, making it ideal for connected devices. The board comes pre-soldered with headers, allowing easy integration into breadboards and prototype setups while maintaining compatibility with the Arduino ecosystem.

Technical Specifications:

• Microcontroller: SAMD21 Cortex-M0+ 32-bit
• Operating Voltage: 3.3 V
• Input Voltage: 5 V via USB or VIN
• Clock Speed: 48 MHz
• Flash Memory: 256 KB
• SRAM: 32 KB
• Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth Low Energy
• Wireless Module: u-blox NINA-W102
• USB Interface: Micro-USB
• Digital I/O Pins: 14
• Analog Input Pins: 8
• PWM Pins: 5
• Communication Interfaces: UART, SPI, I2C
• Onboard Sensors: 6-axis IMU (accelerometer + gyroscope)
• Header Type: Pre-soldered male headers

Features:

• Built-in Wi-Fi and BLE for IoT connectivity
• Compact Nano form factor with breadboard compatibility
• Pre-soldered headers for quick prototyping
• Secure communication support with onboard crypto hardware
• Low power consumption suitable for battery-powered projects
• Full compatibility with Arduino IDE and libraries
• Onboard IMU for motion-based applications

Applications:

• IoT and smart home devices
• Cloud-connected sensor nodes
• Wearables and portable electronics
• Home automation and monitoring systems
• Educational and prototyping projects
• Industrial IoT proof-of-concept designs
