Description

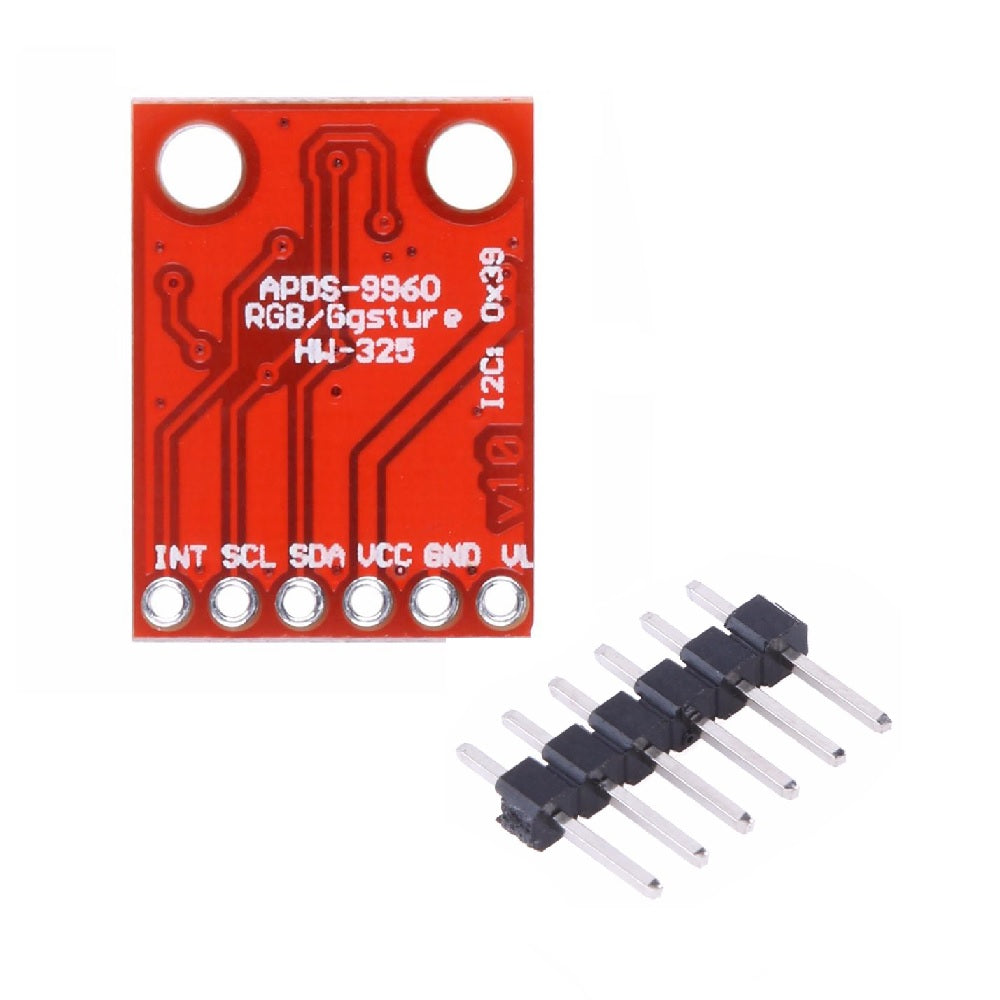

The APDS-9960 provides digital ambient light sensing (ALS), IR LED, and a complete proximity detection system in a single 6 pin package. The proximity function offers plug and plays detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly. The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short-distance detection behind dark glass such as a cell phone. In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. Integrated ALS, an infrared LED, and a proximity detector optical module. Programmable upper and lower threshold with interrupt function.
Technical Specification:
- Input Voltage: 3.3V
- Operating Range: 10–20cm
- Operational Voltage: 3.3V
- Operating Range: 4-8in (10-20cm)
- I2C Interface (I2C Address: 0x39)
Features
- Ambient Light & RGB Color Sensing.
- Proximity Sensing.
- Gesture Detection
Applications:
- Cell Phone Backlight Dimming
- Cell Phone Touch-screen Disable
- Notebook/Monitor Security
- Automatic Speakerphone Enable
- Automatic Menu Pop-up
- Digital Camera Eye Sensor
