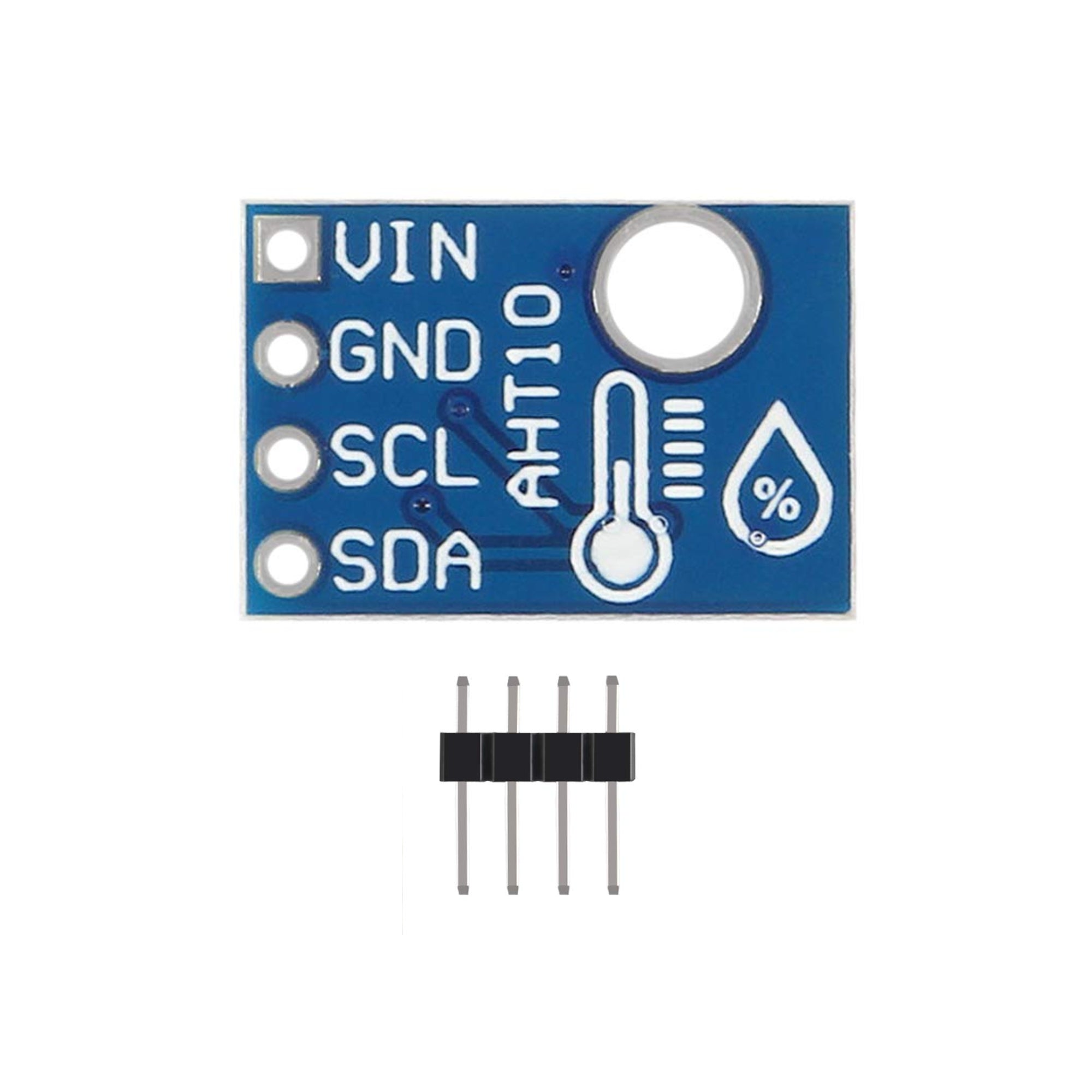

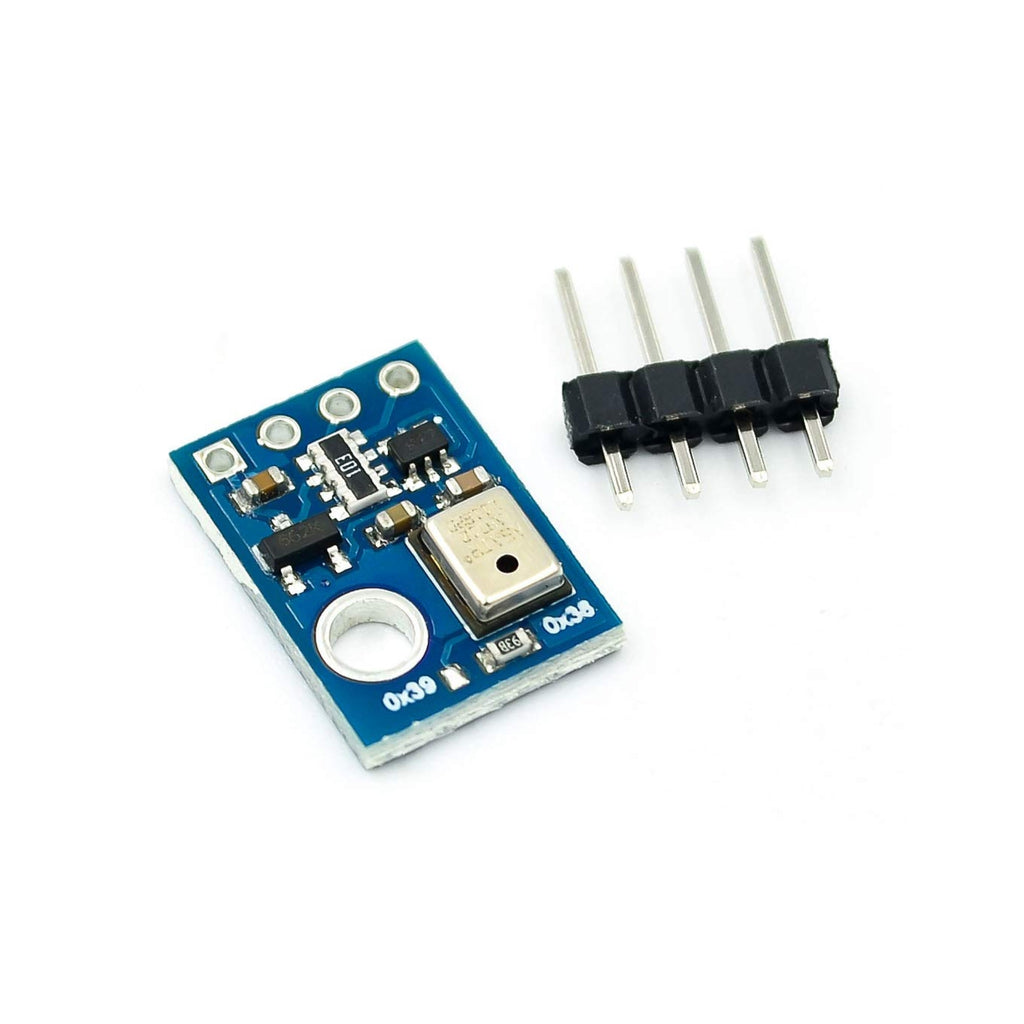

AHT10 Digital Temp & Humidity Module

The AHT10 Digital Temperature & Humidity Module is a compact and accurate sensor module designed to measure ambient temperature and relative humidity. It integrates the AHT10 sensor with calibrated digital output and communicates via the I²C interface, making it easy to interface with microcontrollers such as Arduino, ESP8266, ESP32, and Raspberry Pi. The module offers stable performance, fast response, and low power consumption, making it suitable for environmental monitoring and IoT applications.

Technical Specifications:

• Sensor Type: AHT10 (Temperature & Humidity)
• Measurement Range (Temperature): −40 °C to +85 °C
• Temperature Accuracy: ±0.3 °C (typical)
• Measurement Range (Humidity): 0 % to 100 % RH
• Humidity Accuracy: ±2 % RH (typical)
• Interface: I²C
• Operating Voltage: 2.0 V – 5.5 V
• I²C Address: 0x38 (default)
• Response Time: Fast response
• Calibration: Factory calibrated
• Mounting: PCB with mounting hole

Features:

• Digital temperature and humidity sensing in a single module
• High accuracy and long-term stability
• I²C interface for easy integration
• Wide operating voltage range
• Factory-calibrated sensor, no external calibration required
• Compact size suitable for embedded designs
• Low power consumption

Applications:

• Weather stations
• IoT and smart home devices
• Environmental monitoring systems
• HVAC and climate control
• Data logging applications
• Indoor air quality monitoring
• Educational and prototyping projects
