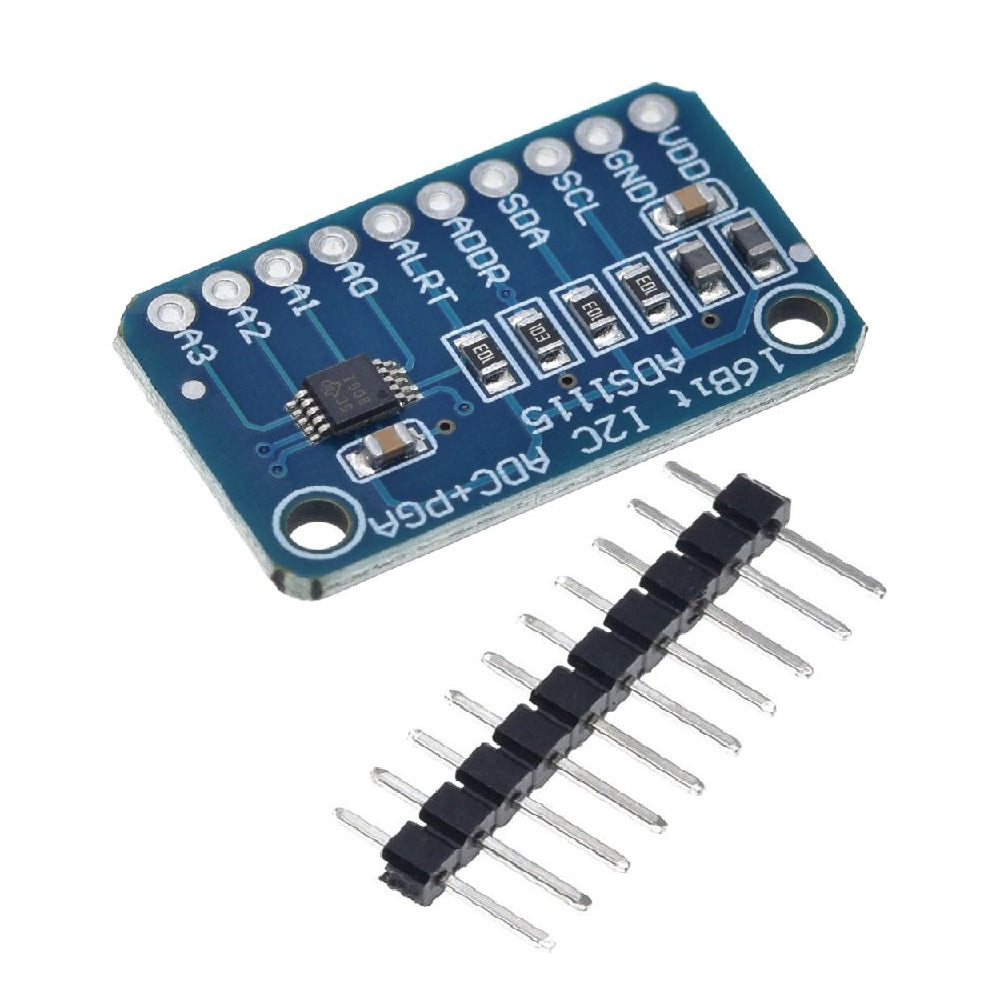

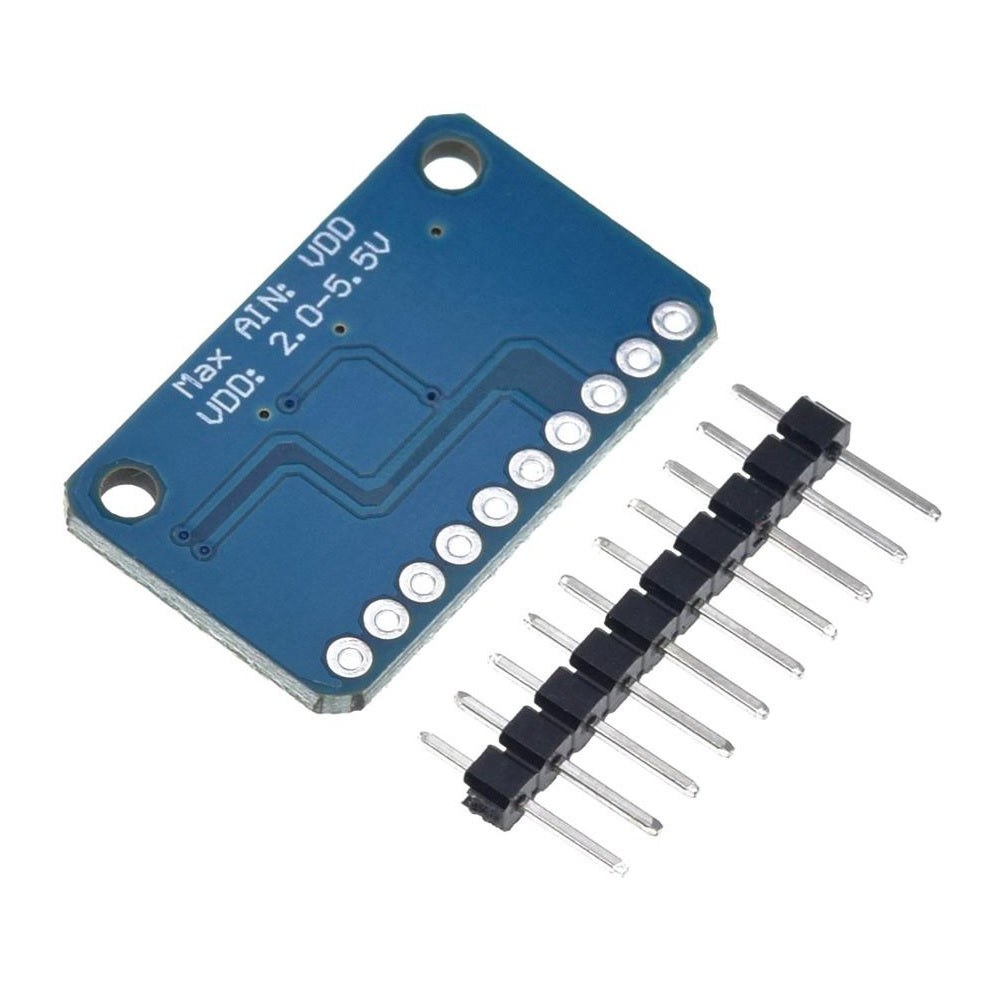

ADS1115 16-Bit I2C ADC 4-Channel Programmable Gain Amplifier Module

SKU: VM00539

Price:
Sale price Rs. 540.68 (excl.18% GST)
Rs. 638.00

Description

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels.

As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter.

Technical Specification:

  • Operating Voltage: 2 to 5.5V
  • Programmable Data Rate : 8 SPS to 860 SPS
  • I2C INTERFACE : Pin-Selectable Addresses
  • LOW CURRENT CONSUMPTION: Continuous Mode: Only 150 uA Single-Shot Mode: Auto Shut-Down
  • ADC Bit rate: 16 Bit
  • Size : 28mm*16mm (L*W)

Features:

  • It has an Internal low-drift voltage reference
  • It Has a Internal Oscillator
  • It Has a Internal PGA
  • It has four single ends or two differential inputs
  • Programmable Comparator

Applications:

  • High-precision instrumentation
  • Automotive electronics
  • Battery voltage collection and other high-precision collection occasions
