Description

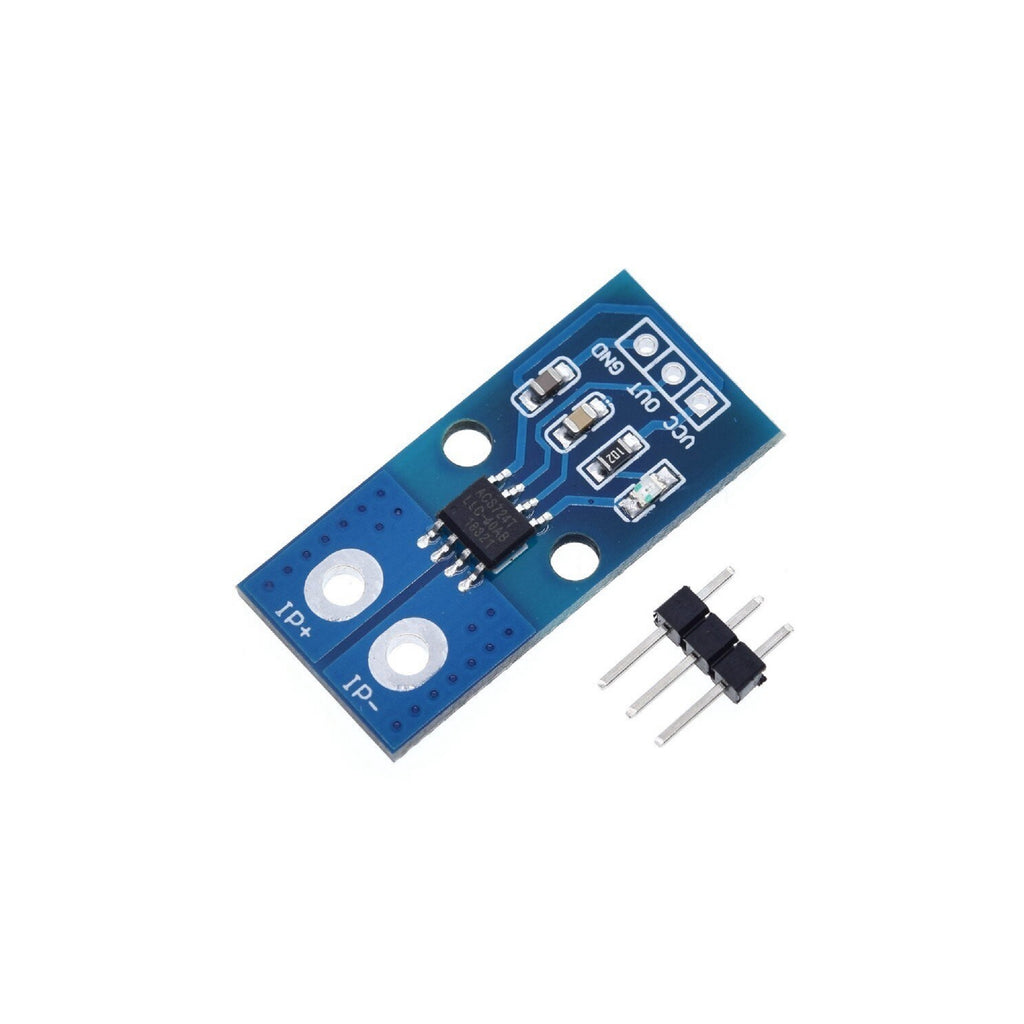

40A range current detection board ACS724-LLCTR-40AB
- Current sensor chip: ACS724-LLCTR-40AB
- Pin 5V power supply, onboard power indicator
- The module can measure the positive and negative 40 amp current, corresponding to the analog output 50mV / A
- When no detection current is passed, the output voltage is VCC/2
- PCB board size: 32 (mm) x 15 (mm)
