Description

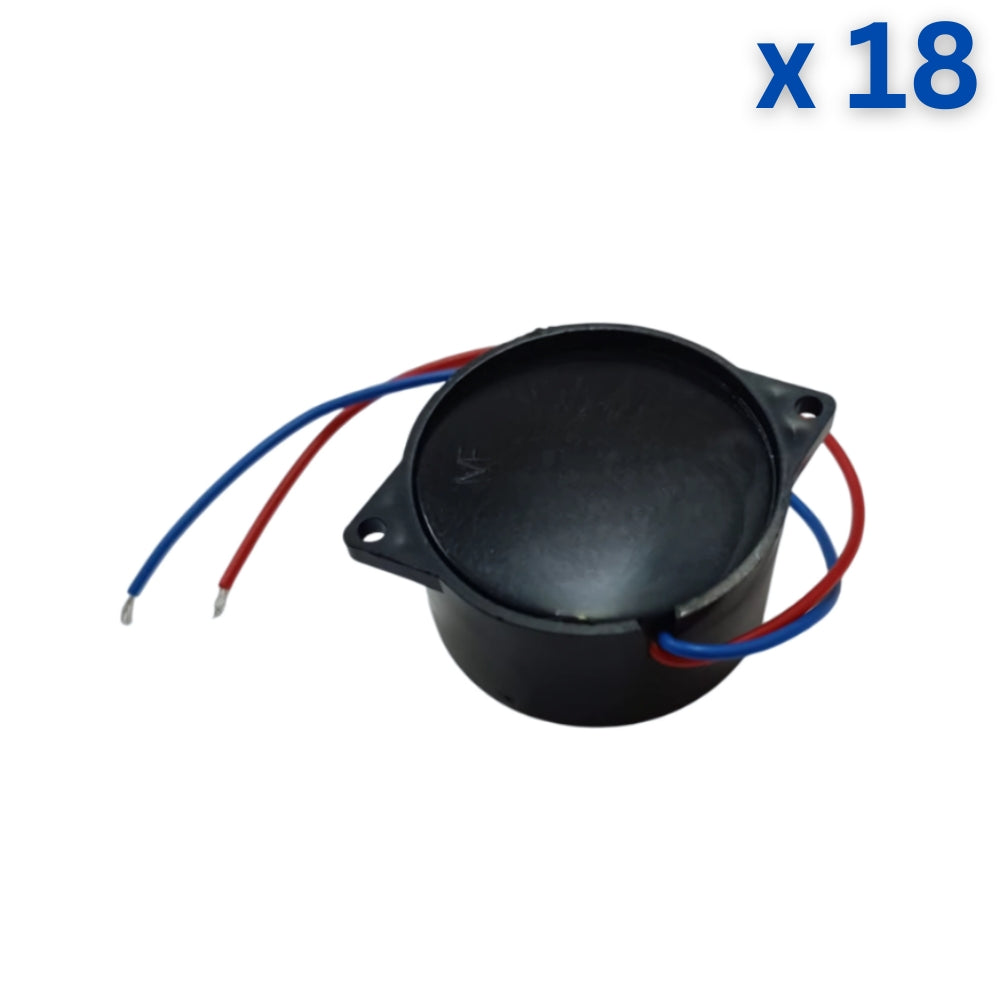

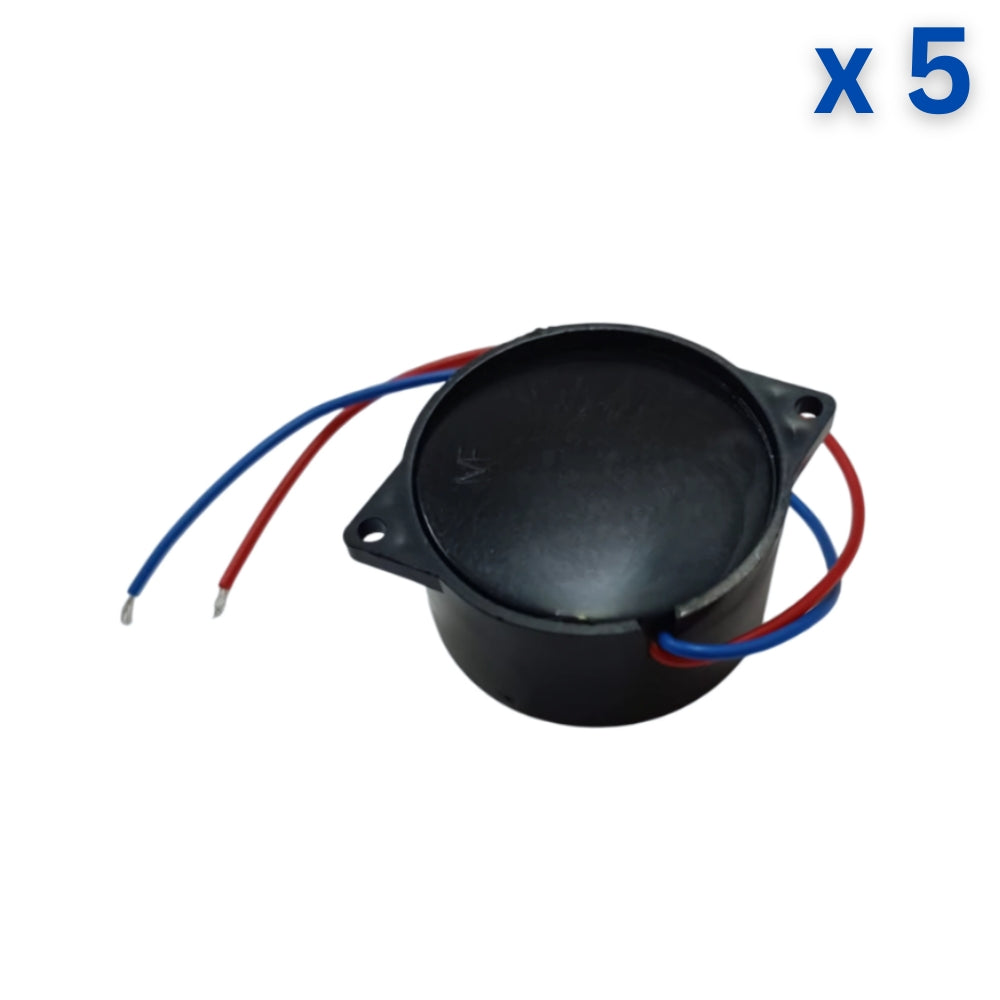

A buzzer is a small yet efficient component to add sound features to our project/system. It is very small and compact 2-pin structure hence can be easily used on breadboard, Perf Board and even on PCBs which makes this a widely used component in most electronic applications. There are two types of buzzers that are commonly available. The one shown here is a simple buzzer which when powered will make a Continuous Beeeeeeppp. Sound due to the internal oscillating circuit present inside it. But, the one shown here is most widely used because it can be customized with help of other circuits to fit easily in our application.
Technical Specification:
- Minimum sound level: 100db
- Oscillation frequency: 4KHz ± 500Hz
- Current consumption: Maximum 20mA
- Operating voltage: 6 - 12V AC/DC
- Tone: Loud Continuous
- Mounting: Flange Type
- Wire/Lead length: 120mm 2 wire
- Height: 24.5mm
- Diameter: 38.5mm
- Pitch: 47.5mm
- Operating temperature range: 20 to 50 °C
- Storage temperature range: 30 to 60 °C
Features:
- Simply Compatible
- Frequency Response is Good
- Size is small
- Energy Consumption is less
- The Range of Voltage usage is Large
Applications:
- Electrical alarms
- Educational purposes
- Security applications
- Electronic Metronomes
- Household applications
