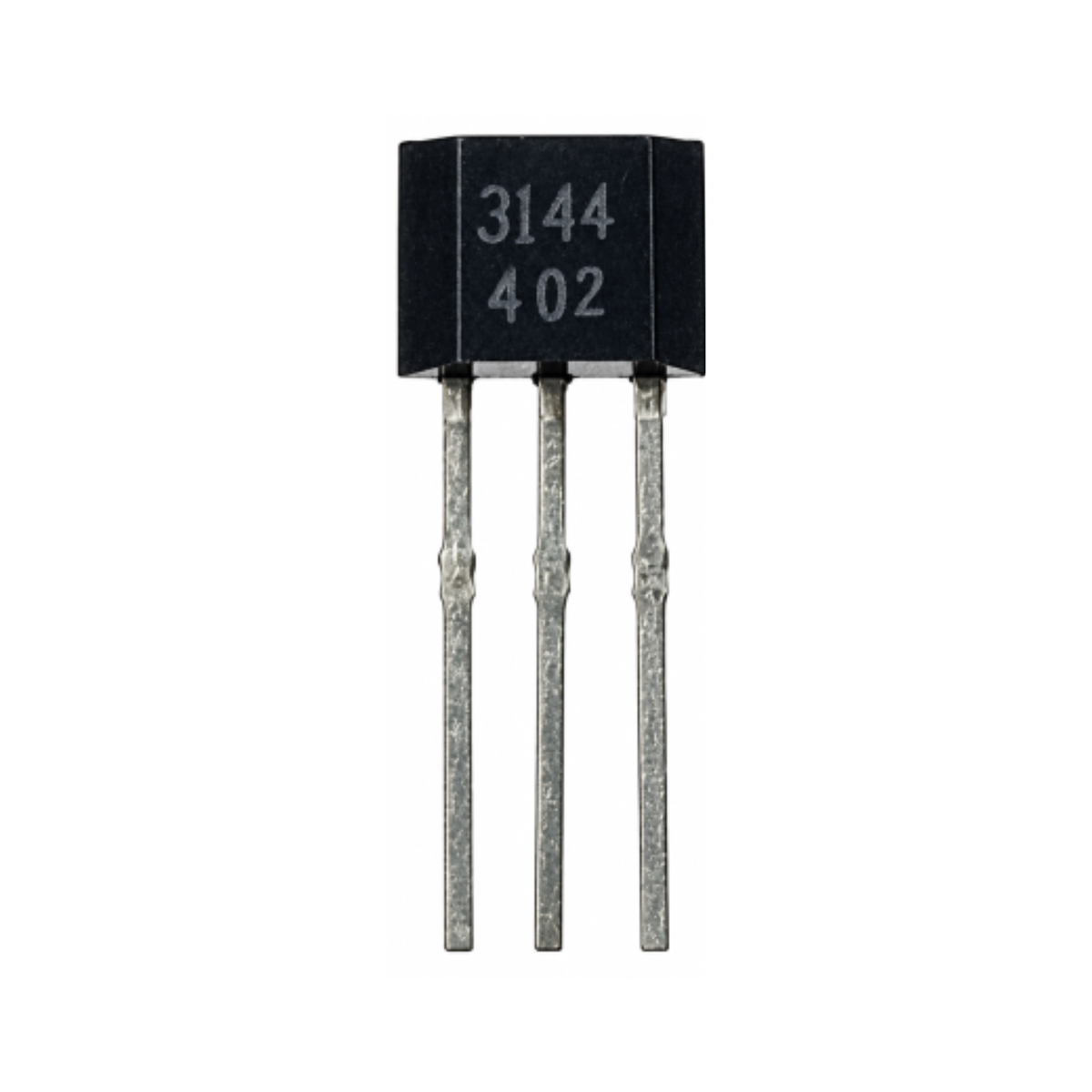

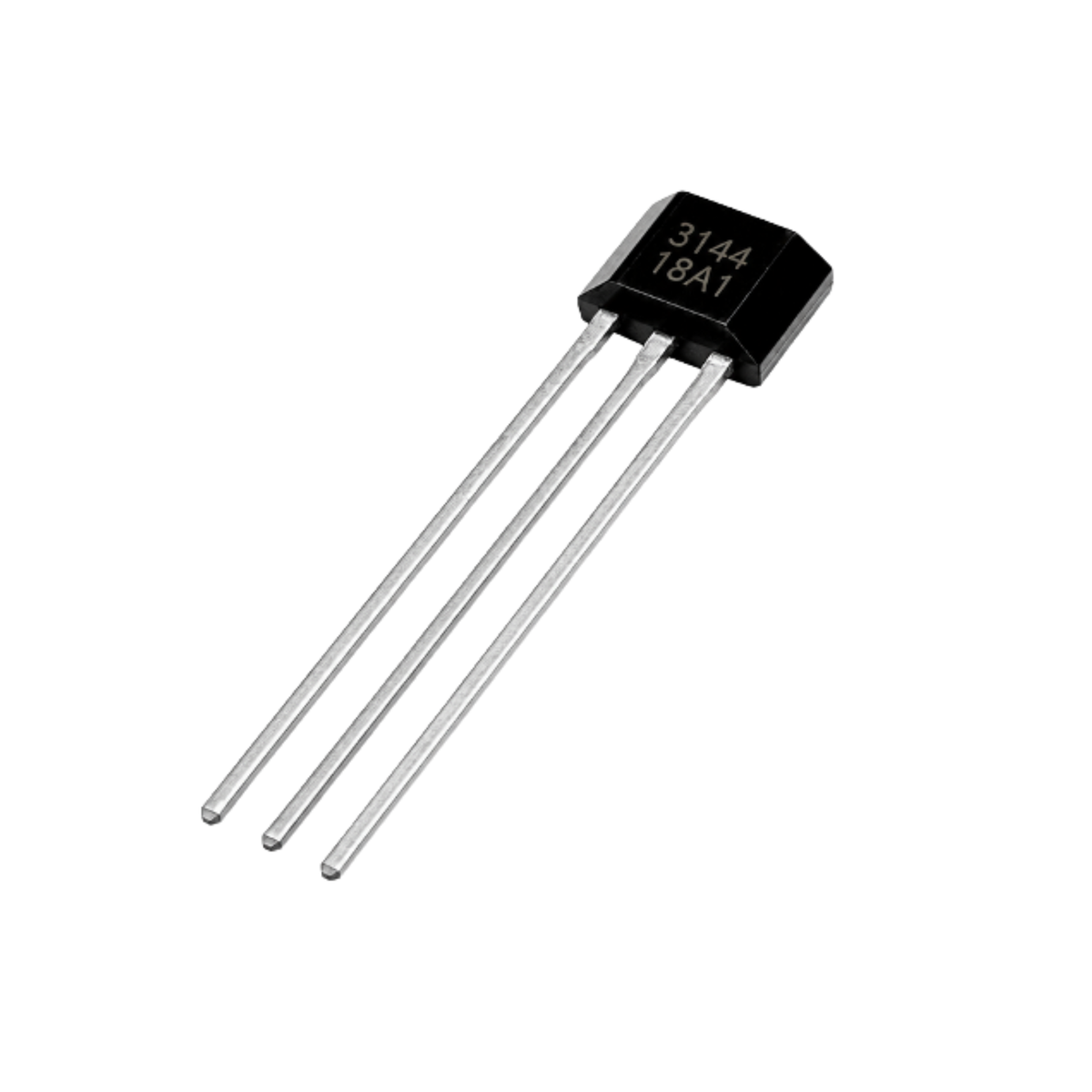

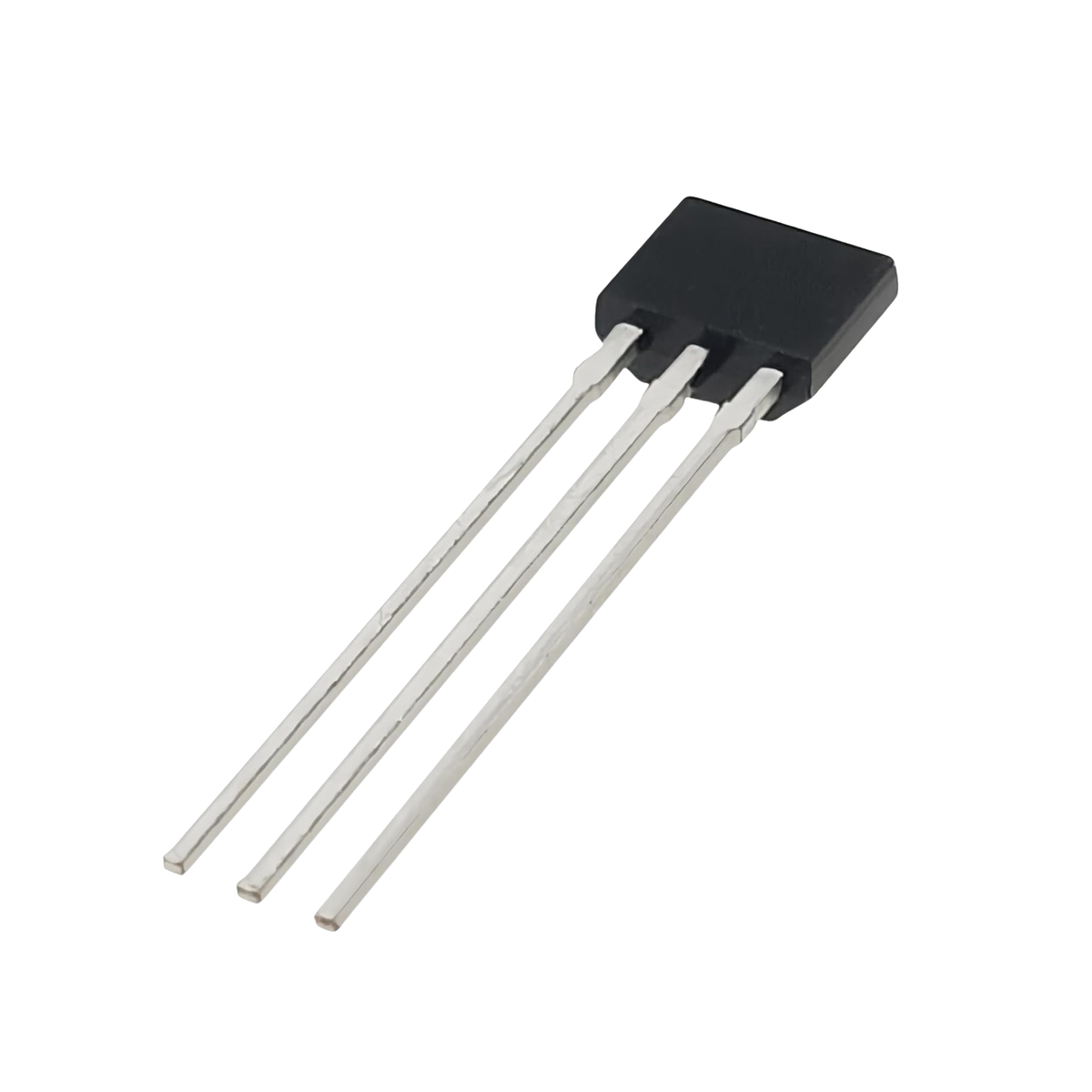

A3144 Unipolar Hall Effect Sensor

The A3144 Unipolar Hall Effect Sensor is a compact magnetic sensing IC designed to detect the presence of a magnetic field and provide a digital switching output. It uses Hall-effect technology and is suitable for non-contact sensing applications. The sensor features an integrated voltage regulator, Hall element, amplifier, Schmitt trigger and open-collector output, making it easy to interface with microcontrollers and digital circuits. It is commonly used for speed sensing, position detection, RPM measurement, proximity sensing and magnetic switching applications.

Technical Specifications:

• Model: A3144
• Sensor Type: Unipolar Hall Effect Sensor
• Operating Voltage: 4.5V to 24V DC
• Output Type: Open-Collector Digital Output
• Maximum Output Sink Current: 25mA
• Number of Pins: 3
• Pin 1: VCC
• Pin 2: Ground
• Pin 3: Output
• Mounting Type: Through Hole
• Package: 3-Pin Hall Sensor Package

Features:

• Contactless magnetic field detection
• Unipolar switching operation
• Built-in Schmitt trigger for stable switching
• Open-collector output for easy interfacing
• Integrated voltage regulator
• Reverse battery protection
• Low power consumption
• Compact 3-pin design
• Suitable for high-temperature applications

Applications:

• RPM and speed measurement
• Motor position detection
• Magnetic proximity switches
• Door and security sensors
• Robotics projects
• Wheel rotation sensing
• Magnetic counters
• Automation systems
• Arduino and microcontroller projects
