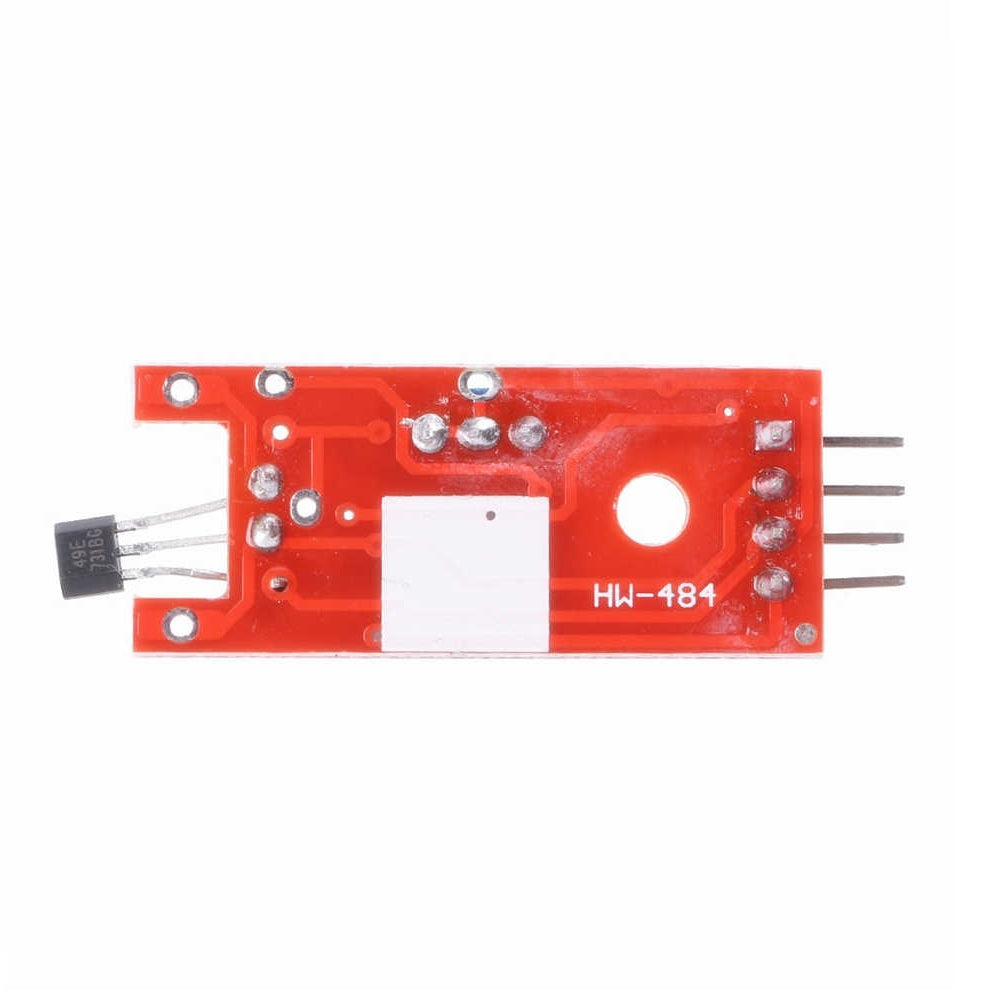

A3144 Hall Effect Sensor Module

SKU: VM6

Description

A hall-effect sensor as then name suggests works with the principle of hall-effect and is used to detect magnets. Each side of the sensor can detect one particular pole. It can also be easily interfaced with a microcontroller since it works on transistor logic.

So if you are looking for a sensor to detect magnet for measuring speed of a moving object or just to detect objects then this sensor might be the perfect choice for your project.



Technical Specification:

  • Operating Voltage: 5V DC
  • Digital Output 0V or 5V direct interface to a microcontroller with LED indication
  • Sensor: Allegro A3144 Hall-effect switch
  • LM393 comparator with threshold preset
  • PCB Size: 32x12mm
  • Detector type: Magnetic Sensing Hall effect
  • Detecting range: 7 mm LM393 based design
  • Easy to use with Microcontrollers or even with normal Digital/Analog IC
  • Small, cheap and easily available

Features:

  • Operating Voltage: +5V DC
  • Digital Output 0V or 5V direct interface to microcontroller with LED indication
  • Sensor: Allegro A3144 Hall effect switch
  • LM393 comparator with theshold preset
  • PCB Size: 32x12mm
  • Detector type: Magnetic Sensing Hall effect
  • Detecting range: 7 mm

Pin Diagram:

Pin Description:

  • VCC: The Vcc pin powers the module, typically with +5V
  • GND: Power Supply Ground
  • DO: Digital Output Pin. Directly connected to digital pin of Microcontroller
  • AO: Analog Output Pin. Directly connected to an analog pin of Microcontroller

Applications:

  • Tachometer
  • Speed Detecting of fan and motors
  • Docking Detection
  • Door Open and Close Detection
  • Proximity Sensing
  • Valve Positioning
  • Pulse Counting
