8 x WS2812 Round RGB LED

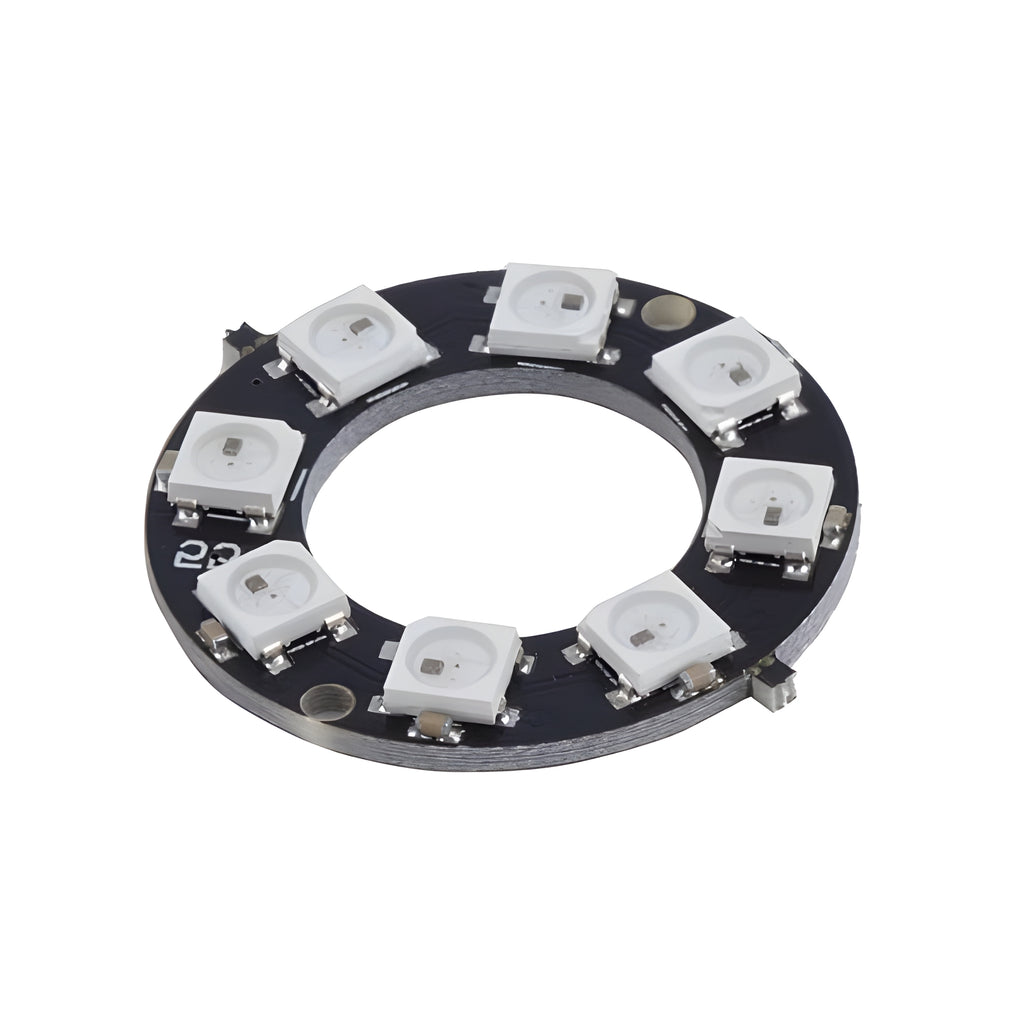

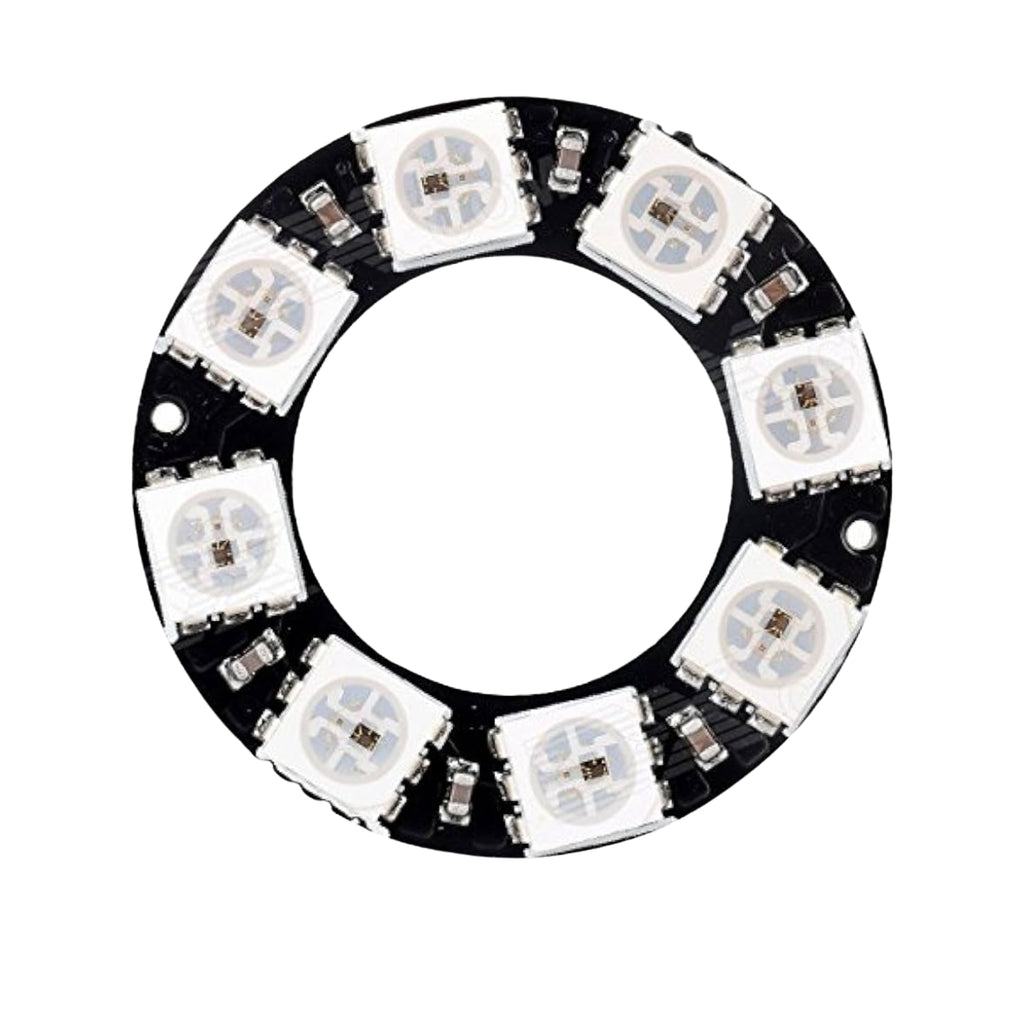

The 8× WS2812 Round RGB LED module is a compact circular LED ring featuring eight individually addressable WS2812 (NeoPixel-compatible) RGB LEDs. Each LED contains an integrated driver IC, allowing full control of color and brightness using a single data line. Its round form factor makes it ideal for decorative lighting, indicators, wearables, and visual effects projects.

Technical Specifications:

• LED Type: WS2812 / WS2812B

• Number of LEDs: 8

• LED Colors: RGB (Red, Green, Blue – 24-bit color)

• Operating Voltage: 5 V DC

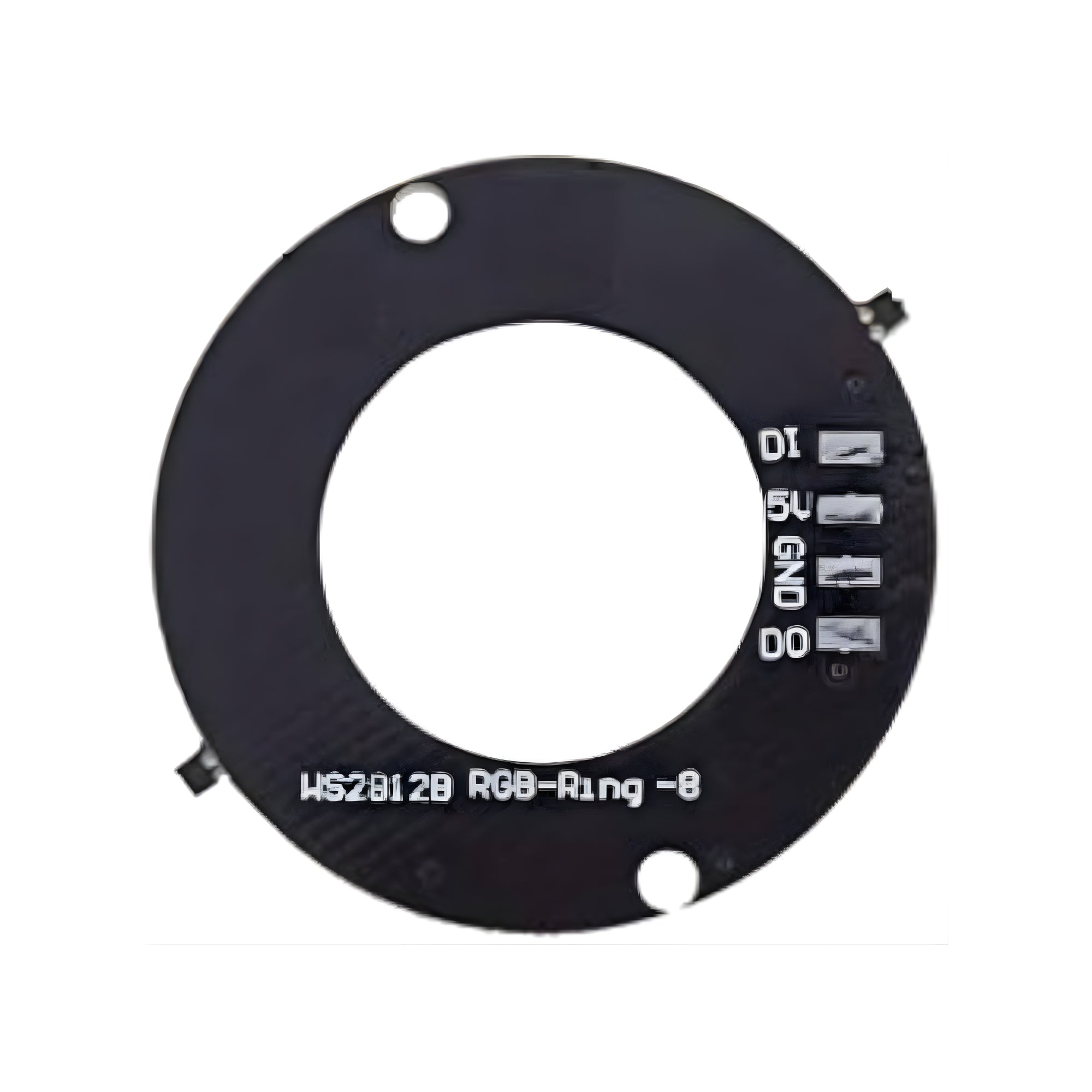

• Control Interface: Single-wire digital (DIN / DOUT)

• Logic Level: 5 V (3.3 V compatible with most controllers)

• PCB Shape: Circular (Ring)

• PCB Color: Black

• Daisy-Chain Support: Yes

Features:

• Individually addressable RGB LEDs

• Single data pin control for all LEDs

• 256 brightness levels per color (16.7 million colors)

• Daisy-chainable for larger LED arrays

• Compact round design with mounting holes

• Wide library support (Adafruit NeoPixel, FastLED)

Applications:

• Decorative and ambient lighting

• Status indicators and dashboards

• Wearable electronics and IoT devices

• Arduino, ESP32, Raspberry Pi projects

• Robotics and visual feedback systems
