8-Channel Infrared Proximity / Line Tracking Module (TCRT5000)

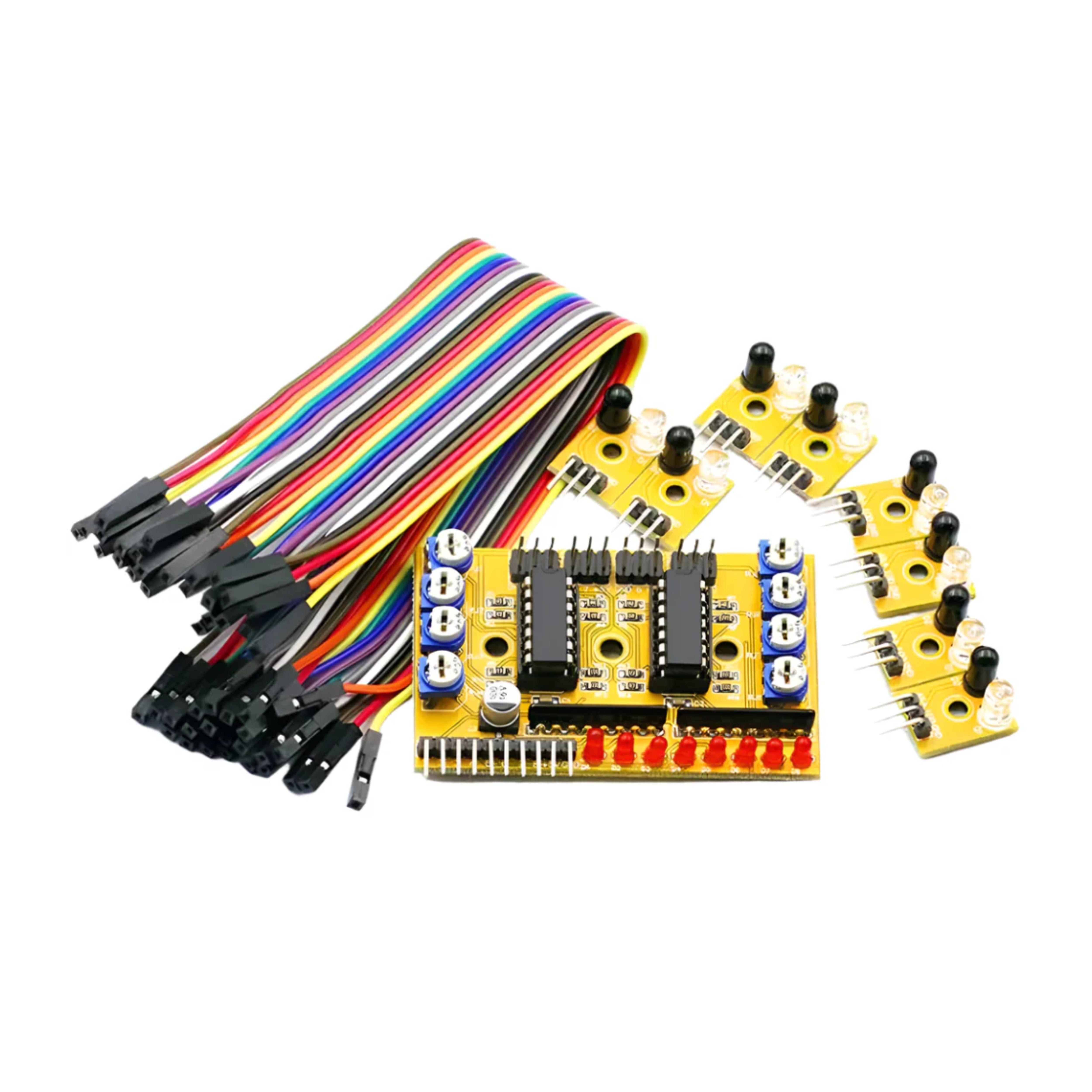

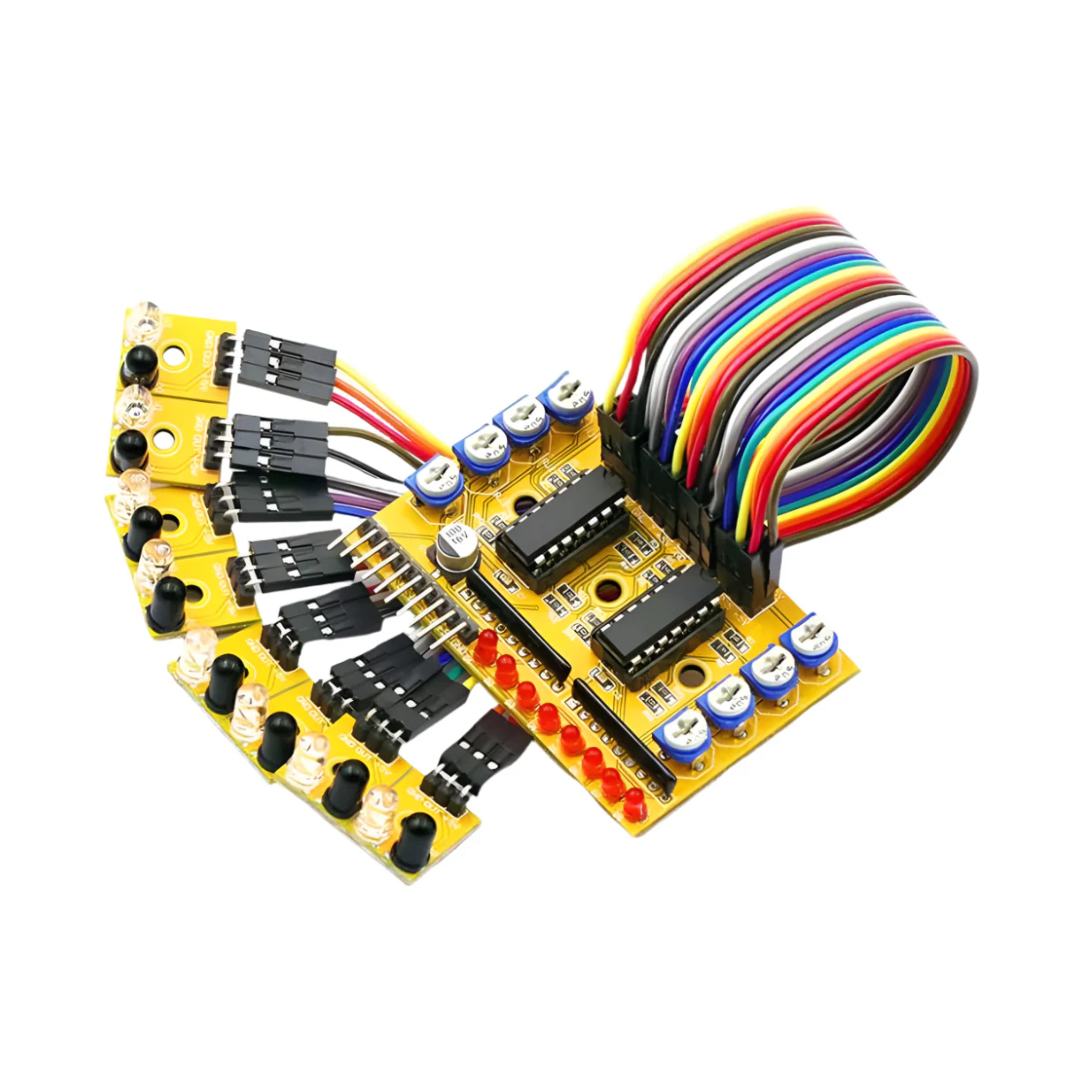

The 8-channel infrared proximity module is a multi-sensor array based on TCRT5000 reflective IR sensors, designed for line tracking and obstacle detection in robotics and automation systems. Each channel independently emits infrared light and detects reflected signals to identify objects or surface contrast (such as black and white lines). The module typically consists of a main control board and separate sensor probes, allowing flexible placement and accurate multi-point detection for smart robot navigation.

Technical Specifications:

• Number of Channels: 8

• Sensor Type: TCRT5000 infrared reflective sensors

• Operating Voltage: 3V – 6V

• Output Type: Digital (open collector with pull-up resistor), some versions support analog

• Detection Method: Infrared reflection

• Detection Distance: ~1 mm to 8 mm (optimal around 2.5 mm)

• Current Consumption: Approx. 30 mA – 55 mA

• Interface Pins: VCC, GND, OUT1–OUT8

• Sensitivity Adjustment: Onboard potentiometers (per channel)

• Indicators: LED status indicators for each channel

Features:

• 8 independent IR sensing channels for precise multi-point detection

• Adjustable sensitivity using onboard potentiometers

• Fast response suitable for real-time robotics applications

• LED indicators for each sensor output

• Supports both line tracking and obstacle detection

• Compatible with Arduino, Raspberry Pi, and other microcontrollers

• Flexible probe design for custom mounting

• Strong resistance to ambient light interference

Applications:

• Line-following robots and autonomous vehicles

• Obstacle detection and avoidance systems

• Edge detection (table/fall prevention robots)

• Maze-solving robotics projects

• Industrial automation and conveyor systems

• Position sensing and object counting systems

• DIY robotics and educational kits
