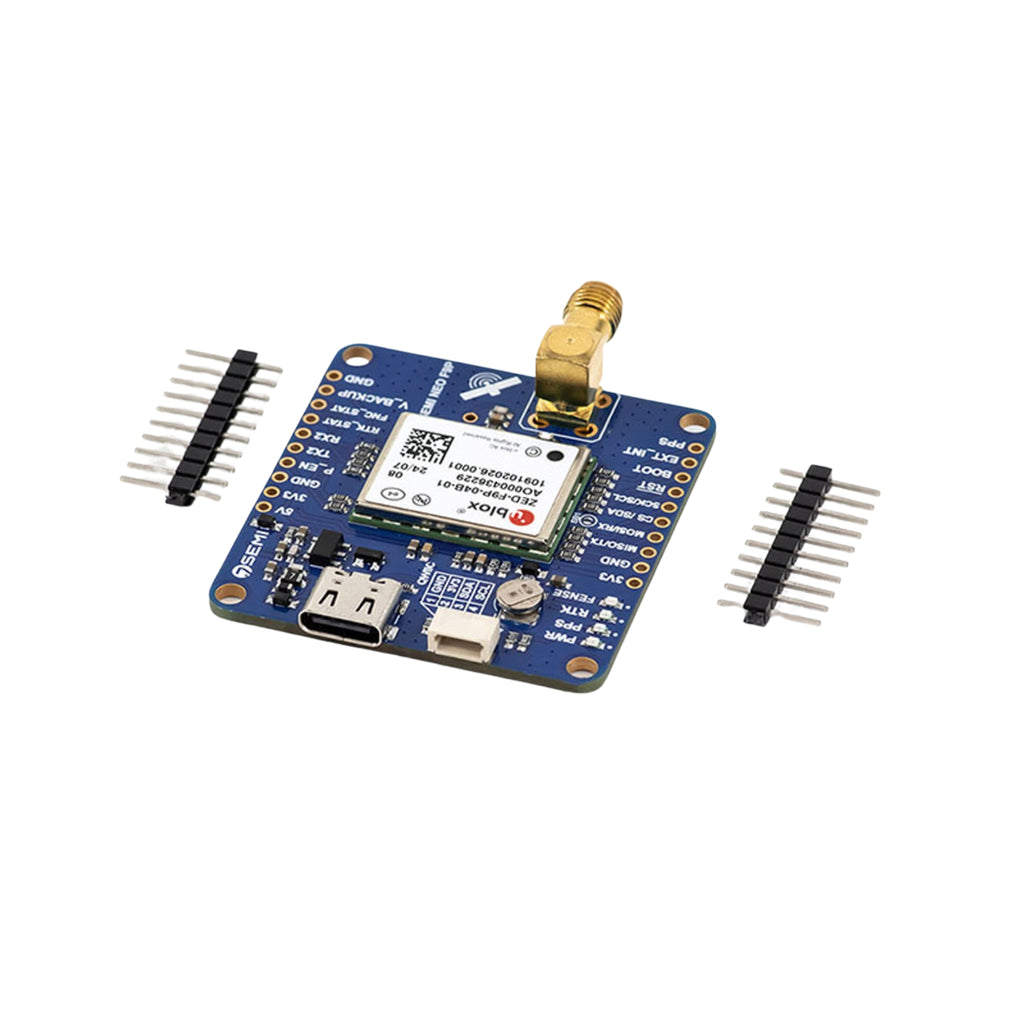

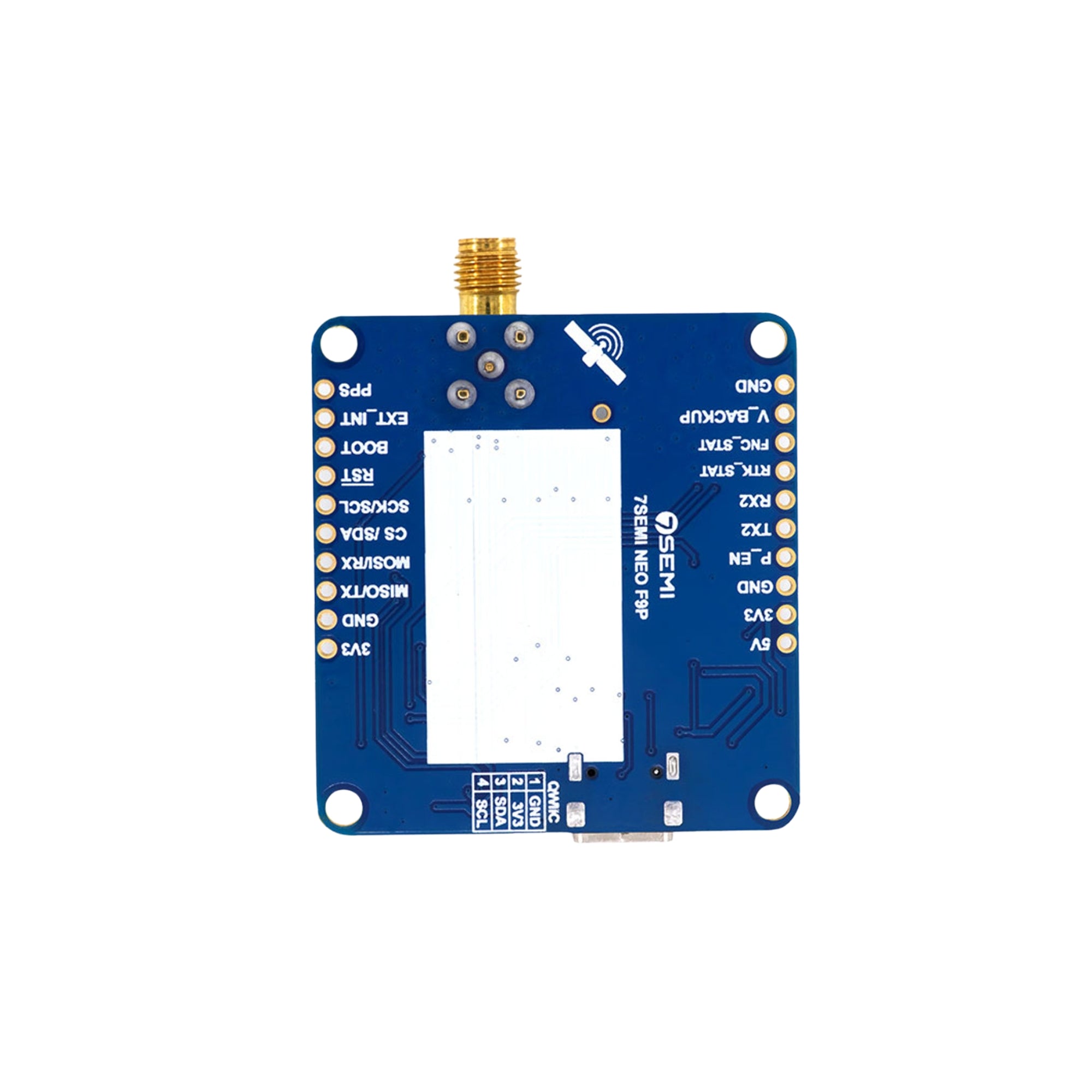

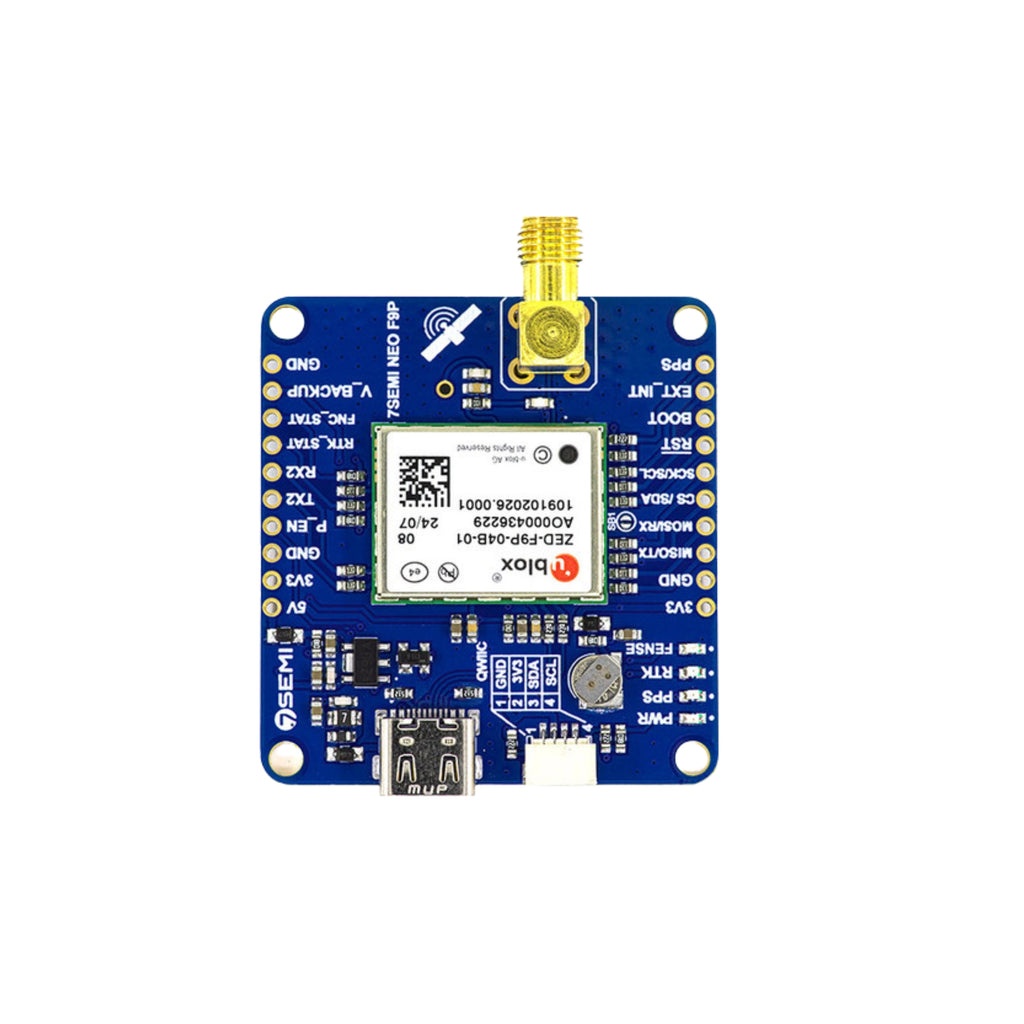

7Semi ZED-F9P Dual-band GNSS RTK SMA Modem

The 7Semi ZED-F9P Dual-band GNSS RTK SMA Modem is a high-precision satellite positioning module designed for centimeter-level accuracy using Real-Time Kinematic (RTK) technology. Powered by the u-blox ZED-F9P GNSS engine, it supports dual-frequency (L1 and L2) signals from multiple satellite constellations including GPS, GLONASS, Galileo, and BeiDou. The module offers multi-band and multi-constellation tracking for reliable, high-accuracy positioning even in challenging environments. With multiple communication interfaces and SMA connectors for external antennas, this modem is ideal for robotics, surveying, drone navigation, and precision agriculture applications.

Technical Specifications:

• GNSS Module: u-blox ZED-F9P

• Satellite Systems Supported: GPS, GLONASS, Galileo, BeiDou, QZSS

• Frequency Bands: L1 and L2 dual-band operation

• Positioning Accuracy: Centimeter-level with RTK; sub-meter standalone

• Update Rate: Up to 20Hz (configurable)

• Correction Data: Supports RTK via RTCM protocol

• Interfaces: UART, USB, SPI, I²C, and GPIO

• Power Supply: 3.3V typical (regulated onboard)

• Antenna Interface: Dual SMA connectors for GNSS and RTK base antenna

• GNSS Channels: 184-channel concurrent reception

• Time to First Fix (TTFF): Cold start <25s, Hot start <2s

• Data Output: NMEA, UBX, RTCM formats

• Position Output Rate: Configurable up to 20Hz

• Operating Temperature: -40°C to +85°C

• Logic Level Compatibility: 3.3V systems

• PCB: High-quality FR-4 with gold-plated SMA connectors


Features:

• Dual-band GNSS (L1/L2) support for enhanced positioning accuracy

• RTK-enabled for centimeter-level precision and fast convergence

• Concurrent multi-constellation tracking for maximum satellite visibility

• SMA connectors for external antennas with strong RF performance

• Multi-interface support including UART, USB, SPI, and I²C

• Compact, low-power design suitable for embedded systems

• High update rate for dynamic applications like UAVs and robotics

• Robust, industrial-grade construction for harsh environments

• Fully compatible with NMEA and UBX communication protocols

• Suitable for use as both RTK rover and base station

Applications:

• Precision agriculture and autonomous farming equipment

• Drone and UAV navigation with RTK-based accuracy

• Surveying, mapping, and geospatial data collection

• Robotics, AGV, and autonomous vehicle guidance systems

• Industrial positioning and asset tracking

• Construction and mining automation

• Environmental monitoring and research equipment

• Smart transportation and logistics systems

• IoT devices requiring high-precision GNSS integration

• Educational and research platforms for RTK and GNSS development
