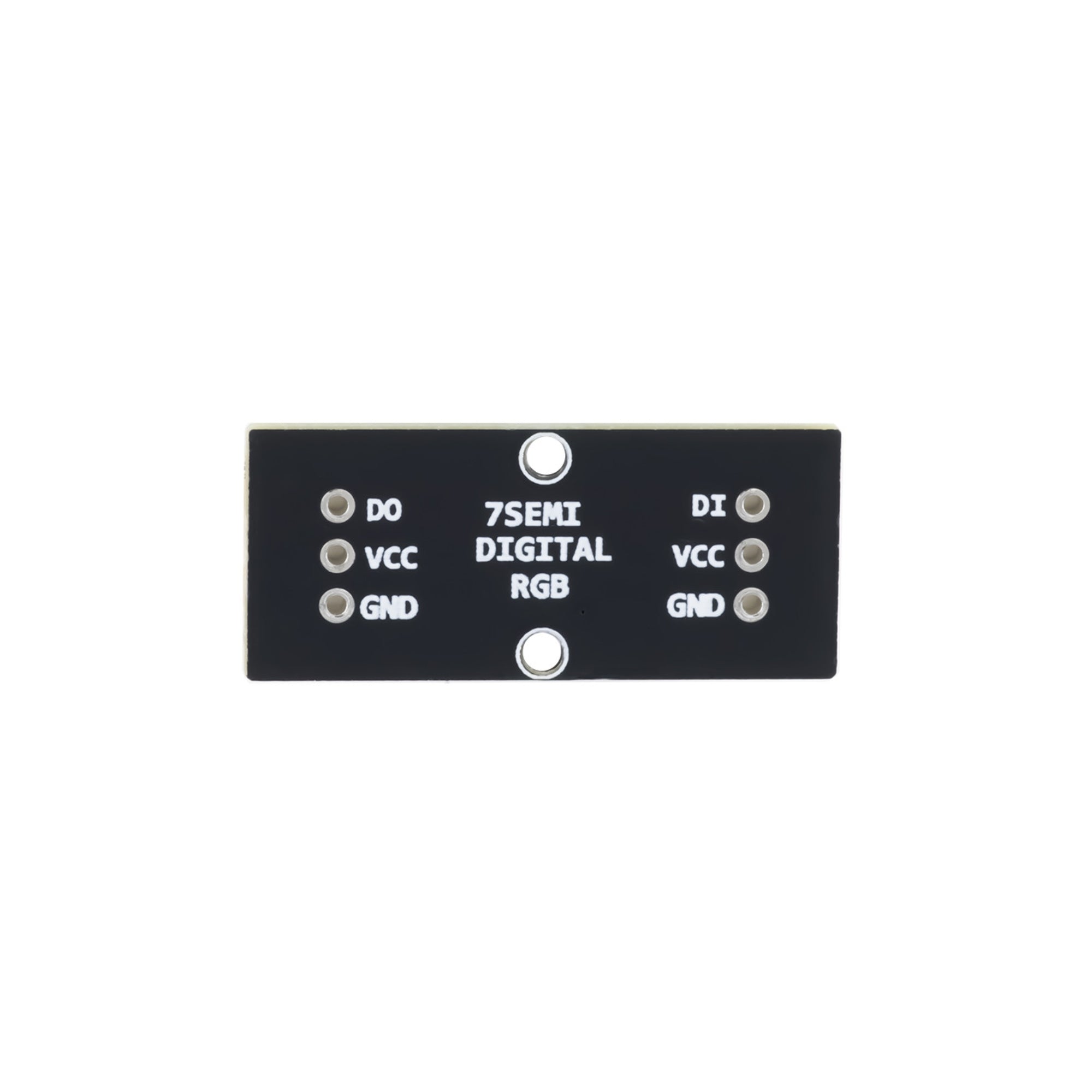

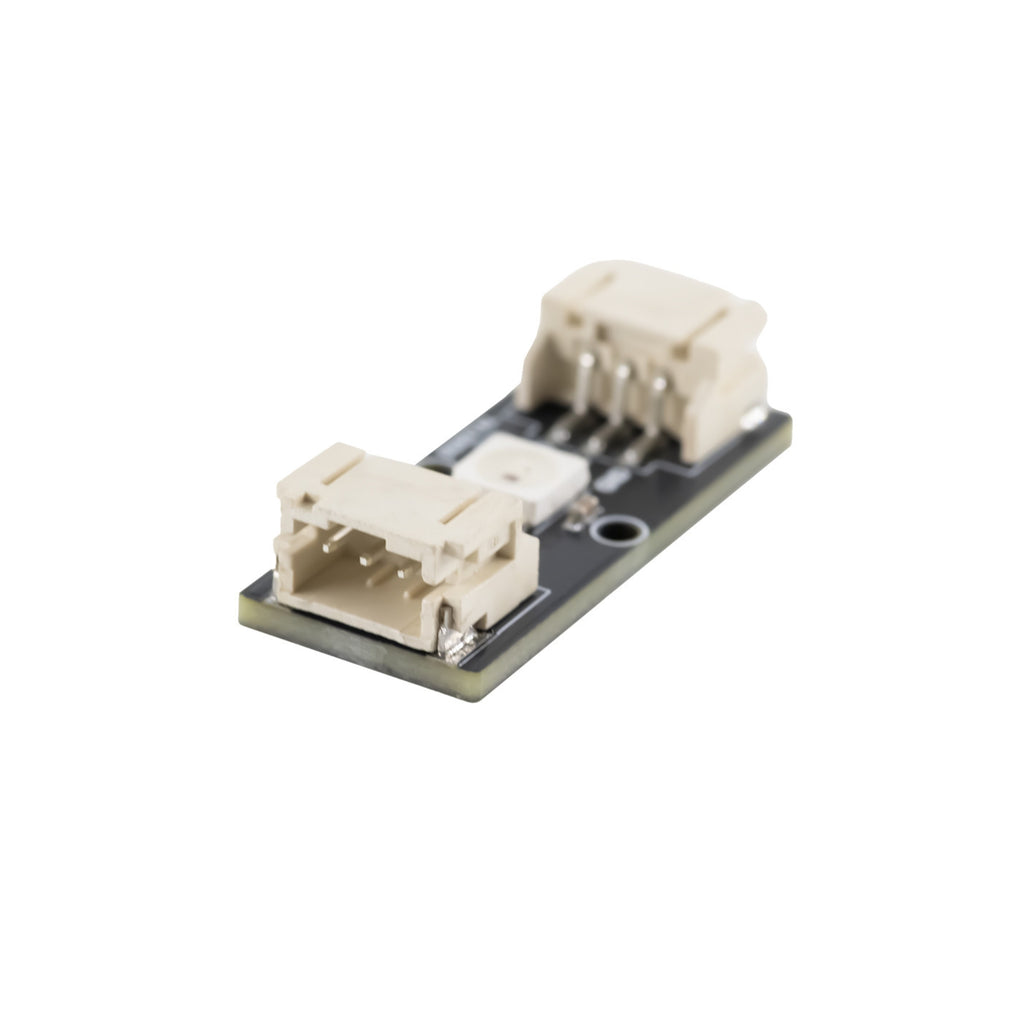

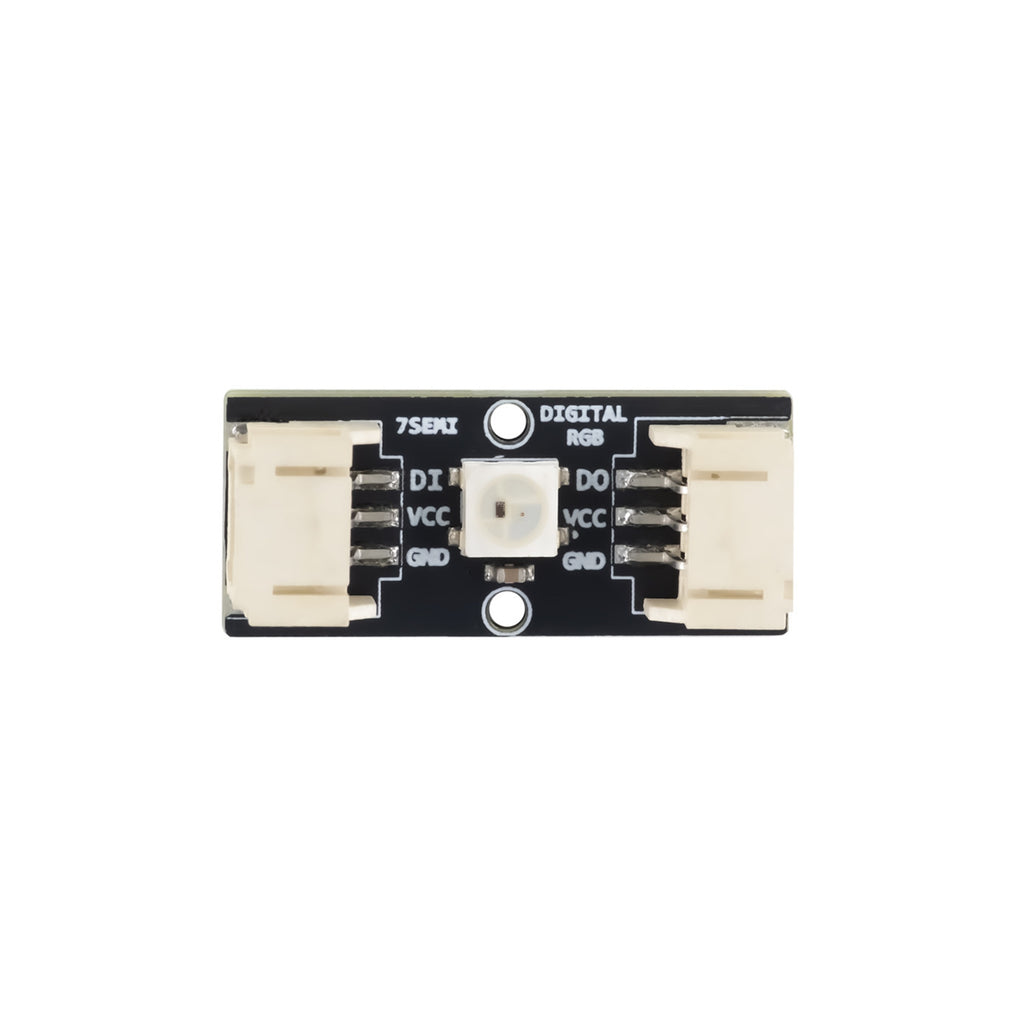

7Semi-WS2812B Digital RGB LED Module

The 7Semi WS2812B Digital RGB LED Module is a compact addressable RGB LED unit that integrates an RGB LED and a built-in driver IC in a single 5050 package. It allows full control of color and brightness using just one data line, making it ideal for creating dynamic lighting effects. Multiple modules can be daisy-chained to form LED strips, rings, or matrices, suitable for decorative, embedded, and robotic applications.

Technical Specification:

• Operating Voltage: 3.5 V to 5.3 V (typically 5 V)
• LED Type: WS2812B intelligent RGB LED
• Refresh Rate: ≥ 400 Hz
• Wavelengths: Red 620–625 nm, Green 522–525 nm, Blue 465–467 nm
• Color Depth: 256 brightness levels per color, ~16.7 million colors
• Interface: Single-wire serial data (DIN/DOUT)
• Cascading Support: Hundreds of LEDs possible depending on timing and power
• Operating Temperature: –25 °C to +80 °C
• LED Package Size: 5050 SMD RGB LED

Features:

• Individually addressable RGB LED with integrated driver
• Single data line control for simplified wiring
• Daisy-chain compatible through data in/out pins
• High color accuracy with 256-level PWM per channel
• Smooth animations thanks to high refresh rate
• Compact and easy-to-use breakout module
• Works with most microcontrollers (Arduino, ESP32, Raspberry Pi, STM32, etc.)
• Ideal for creating long LED chains with minimal I/O usage

Applications:

• LED strips, matrices, rings, and decorative lighting
• Mood lights, ambient backlighting, home-decor projects
• Wearables and costume lighting
• Robotics and embedded status indicators
• Interactive art installations
• DIY electronics, maker projects, and prototyping
• Smart lighting and IoT visualization
