7Semi USB Type-A Male Breakout

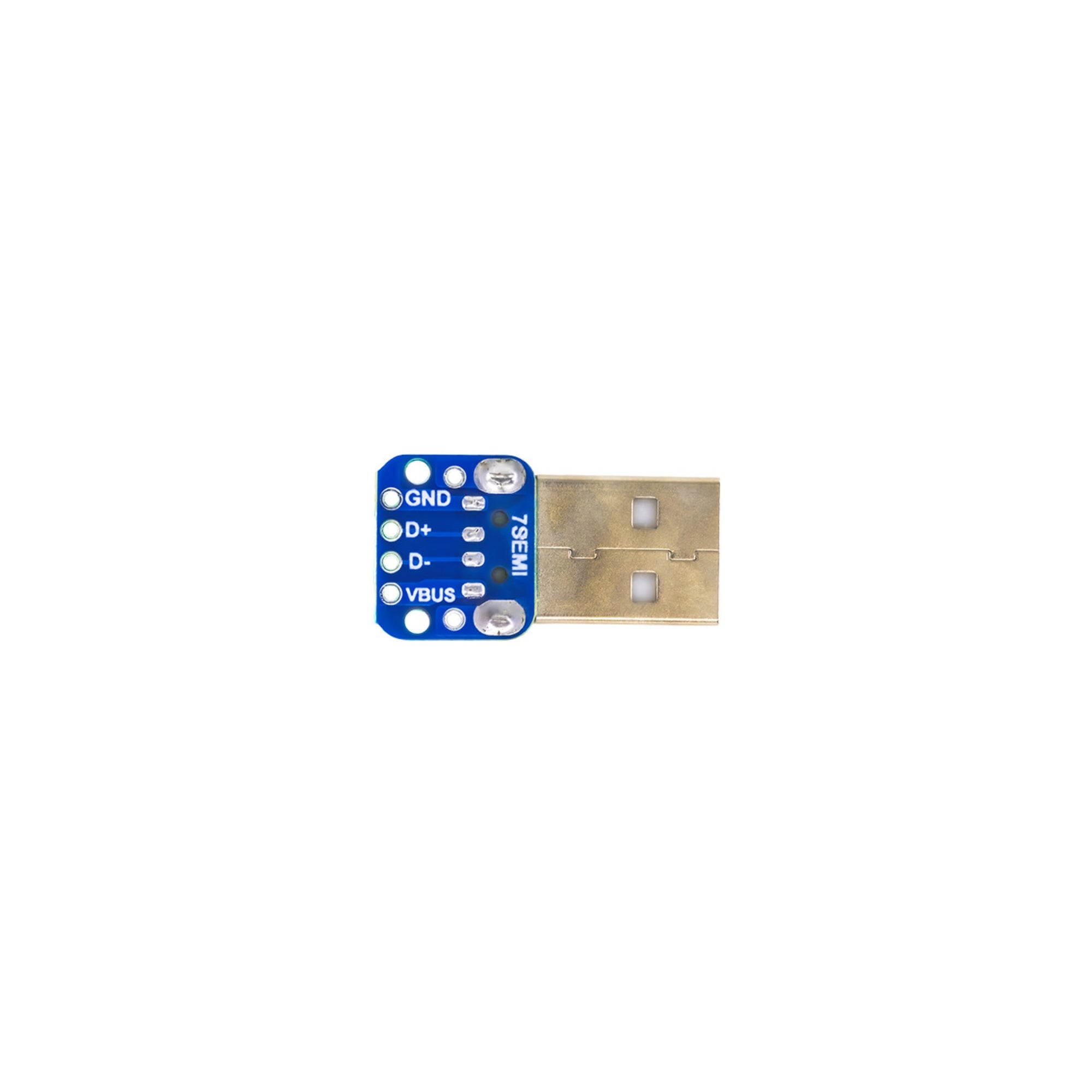

The 7Semi USB Type-A Male Breakout is a compact module that brings out the USB Type-A male connector pins to standard 2.54 mm header pins. It provides easy access to VCC, GND, D+, and D– lines, making it ideal for prototyping USB-powered or USB-communicating projects. This breakout board eliminates the difficulty of soldering small USB connectors and allows quick integration into breadboards, development boards, and custom circuits.

 Technical Specifications:

• Connector Type: USB Type-A Male
• Output Pins: VCC, GND, D+, D–
• Header Pitch: 2.54 mm (0.1″)
• Supported Voltage: 5 V (standard USB power)
• Data Compatibility: USB 2.0 D+ / D– lines
• Operating Temperature: –40 °C to +85 °C
• Board Dimensions: ~27.85 mm × 15.05 mm
• Typical Weight: ~2 g

Features:

• Breaks out USB Type-A male connector to standard header pins
• Easy access to power and data lines
• Ideal for breadboards and prototyping setups
• Eliminates need for fine-pitch USB connector soldering
• Compact and lightweight PCB design
• Suitable for both power-only and data-capable applications
• Reliable operation across industrial temperature ranges

Applications:

• USB-powered embedded systems
• Microcontroller USB interface testing
• DIY electronics and hobby projects
• IoT devices using USB power
• USB device prototyping and debugging
• Powering small development boards from USB
• Teaching, labs, and rapid prototyping environments
