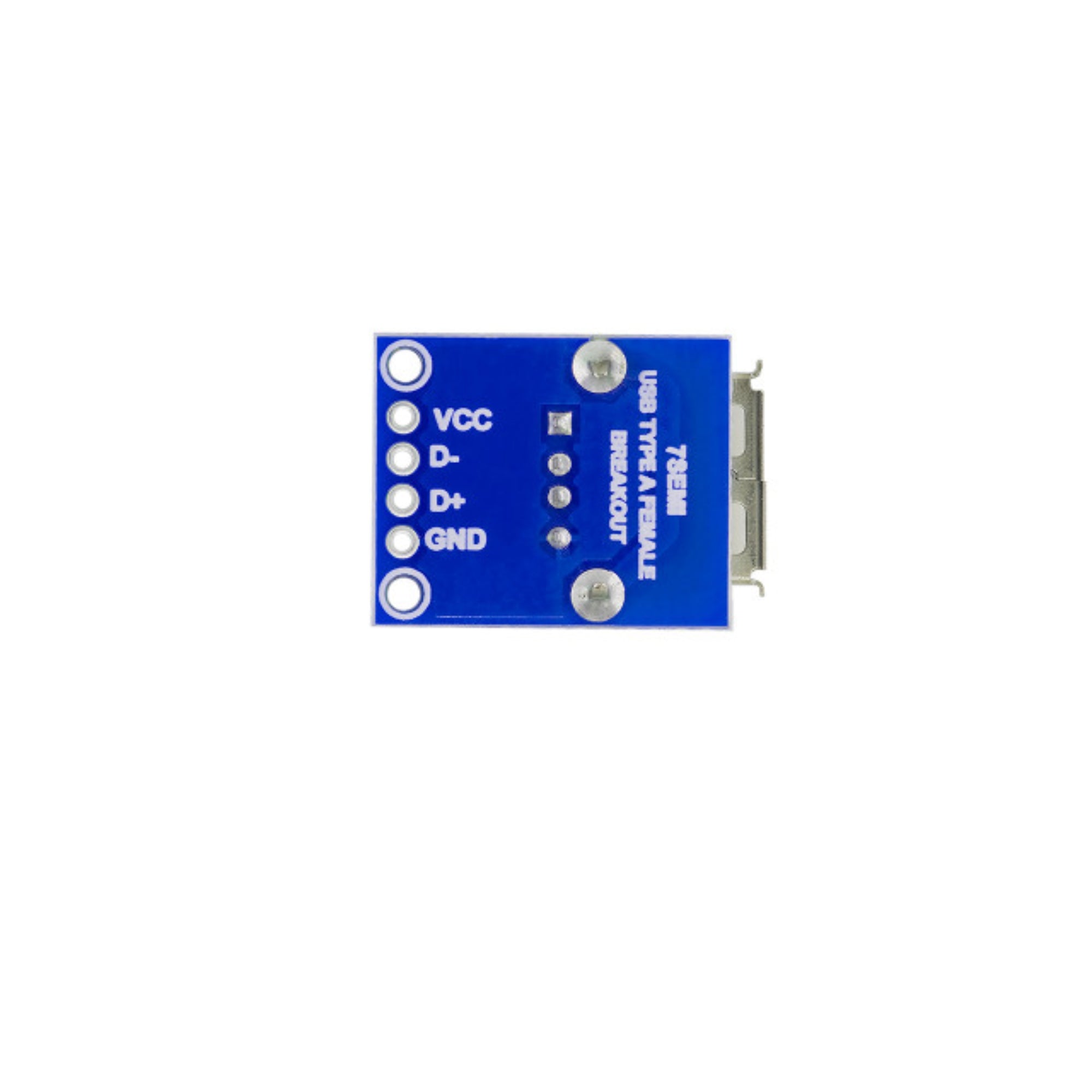

7Semi USB Type A Female Breakout

The 7Semi USB Type-A Female Breakout is a simple and durable adapter board designed to provide easy access to a standard USB Type-A female connector. It breaks out the USB pins — VBUS, D+, D–, and GND — to 2.54 mm headers, making it easy to interface with breadboards, microcontrollers, and custom PCBs. Ideal for prototyping USB-powered circuits and data communication applications, this breakout simplifies USB integration in embedded and DIY electronics projects without the need for fine-pitch soldering.

Technical Specifications:

• Connector Type: USB Type-A Female

• Supported Standard: USB 2.0 (compatible with USB 1.1/1.0)

• Pin Configuration:
   – VBUS (5 V)
   – D+ (Data Positive)
   – D– (Data Negative)
   – GND (Ground)

• Operating Voltage: 5 V (standard USB power)

• Current Capacity: Up to 3 A (depending on source and cable)

• Interface Type: 2.54 mm header pin breakout

• Mounting Type: PCB-mounted female USB connector on breakout board

• Material: High-quality FR-4 PCB substrate

• Dimensions: Compact, breadboard-friendly form factor

• Color: Green solder mask with white silkscreen labeling

• Operating Temperature: -40°C to +85°C


Features:

• Provides a convenient breakout for USB Type-A female connector

• Breaks out all USB 2.0 pins to standard 2.54 mm header spacing

• Supports power and data transmission up to 480 Mbps (USB 2.0)

• Sturdy PCB design suitable for prototyping and long-term use

• Compatible with most development boards and breadboards

• Easy to integrate into power or data communication projects

• Compact, plug-and-play design requiring minimal setup

• High-quality USB connector with strong mechanical durability

Applications:

• USB device prototyping and interface development

• Power supply and charging circuits for embedded systems

• USB communication with microcontrollers or SBCs

• Data transfer testing and custom cable development

• IoT and DIY electronics requiring USB connectivity

• Educational and lab-based electronics experiments

• Repair or modification of USB-based systems

• USB power output interface for small electronic projects
