7Semi USB-C Female Breakout

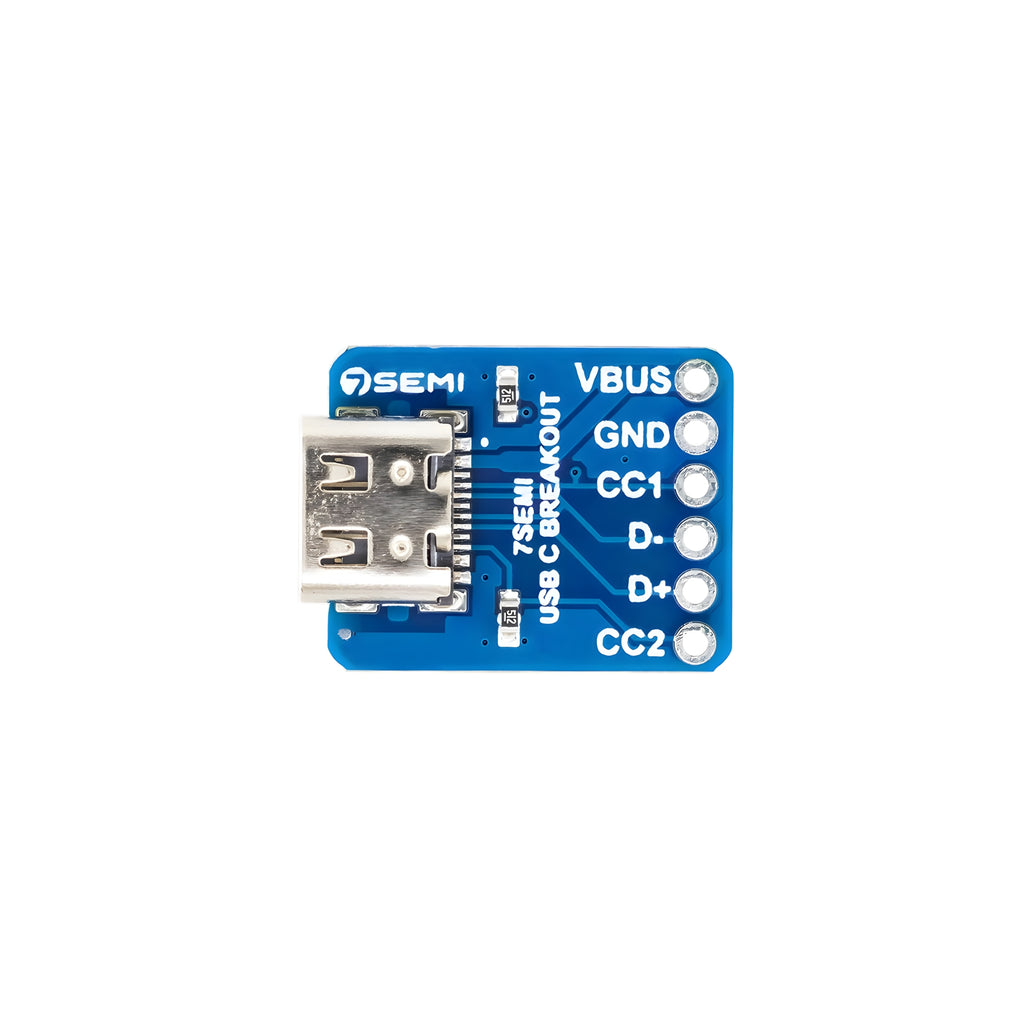

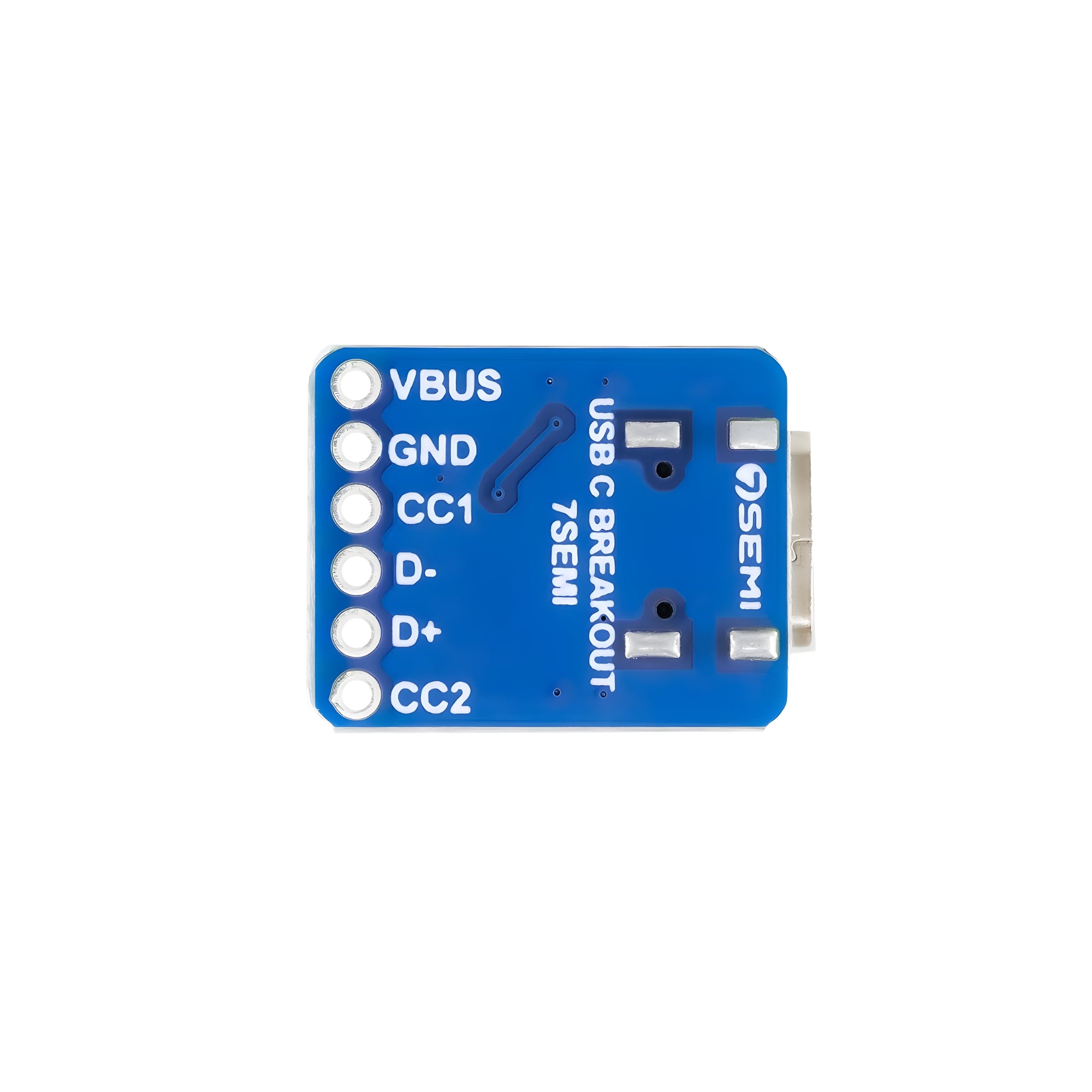

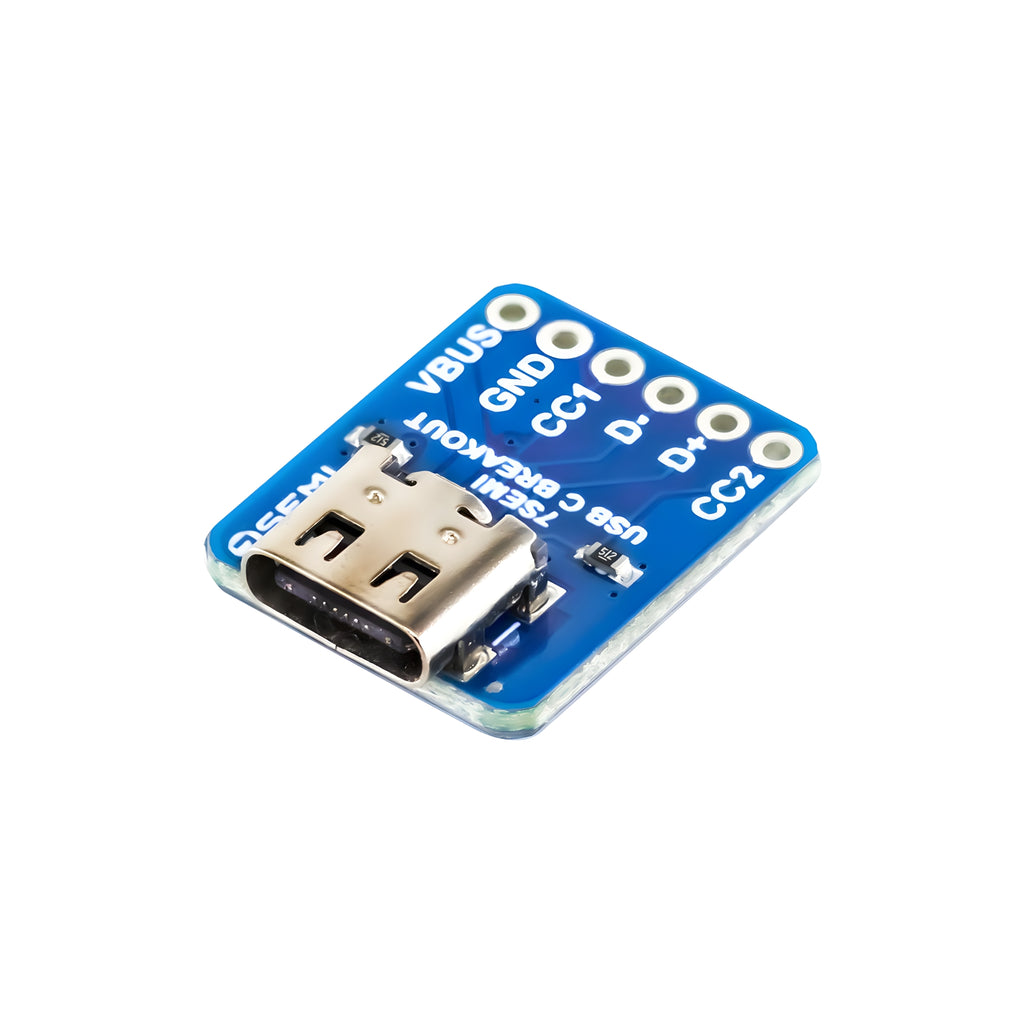

The 7Semi USB-C Female Breakout is a small PCB module that provides an easy way to integrate a USB Type-C female connector into your electronic designs or prototypes. Instead of having to deal with very fine-pitch SMD pads and connector mounting, this breakout board exposes the key USB-C pins (VBUS, GND, CC1, CC2, D+, D−) via standard 0.1″ header pins.

It simplifies connections for power, data, and configuration lines in USB-C circuits. The board supports typical current levels (nominal 1.5 A, potentially up to 3 A depending on the upstream source) and is intended for prototyping, evaluation, or as an interface in larger USB-C systems.

Technical Specifications:

• Brand: 7Semi
• Model: CB-10112
• Connector Type: USB Type-C Female
• Interface Pins: VBUS, GND, D+, D−, CC1, CC2 (0.1″ header)
• Operating Voltage: 5 V (standard USB power)
• Current Capacity: Up to 3 A (typical 1.5 A nominal)
• Mounting Type: PCB breakout module
• Board Type: Through-hole compatible for breadboard use
• Material: High-quality FR-4 PCB

Features:

• Easy USB-C pin breakout for prototyping
• Supports up to 3 A power supply
• Exposes VBUS, GND, D+, D−, CC1, CC2 pins via 0.1″ headers
• Compact and durable PCB design
• Compatible with standard breadboards and custom PCBs

Applications:

• USB-C power and data interface in prototypes
• Microcontroller and embedded system projects
• USB-C charging or power delivery experiments
• DIY electronics and educational kits
• Test and measurement setups for USB-C lines
