7Semi USB-C 3.1 Male Breakout 24 Pins PCB Type-C Connector

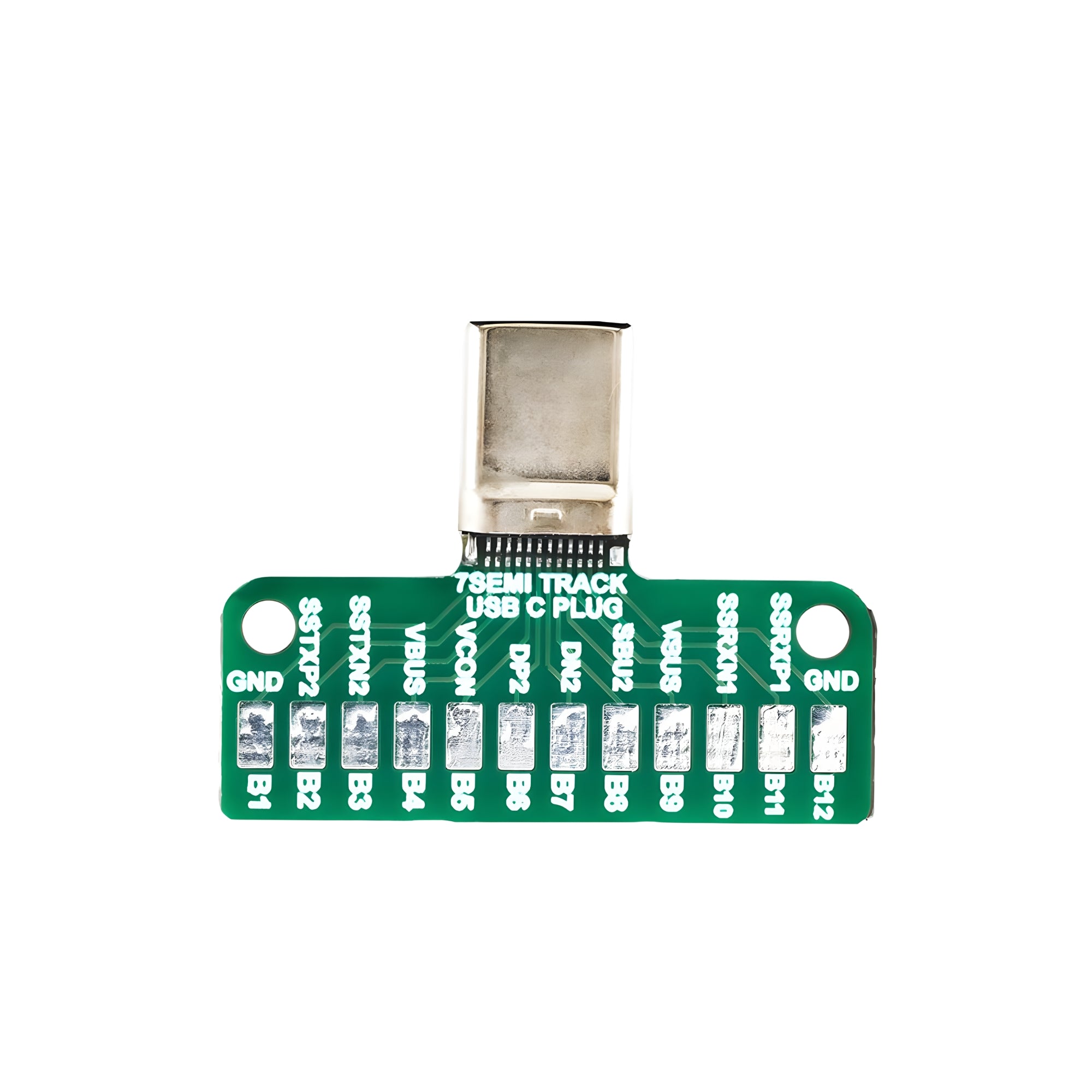

The 7Semi USB-C 3.1 Male Breakout is a compact PCB module featuring a 24-pin USB Type-C male connector compliant with the USB 3.1 standard. It provides an easy way to access all USB-C signals through clearly labeled solder pads, making it ideal for testing, development, and custom PCB integration without the need for fine-pitch soldering.

Technical Specifications:

• Brand: 7Semi
• Model: USB-C 3.1 Male Breakout
• Connector Type: USB Type-C Male (24 Pins, USB 3.1)
• Compatibility: Supports USB 2.0 and USB 3.1 standard
• Orientation: Straight vertical connector
• Pin Count: 24 pins (full USB-C interface)
•  Mounting Type: PCB-type breakout with solder pads
• Material: High-quality FR-4 PCB base
• Operating Voltage: 5 V nominal (USB standard)
• Current Capacity: Up to 3 A (typical USB-C rating)
• Pitch: 0.1 inch (2.54 mm) for easy interfacing

Features:

• Breaks out all 24 USB-C pins for easy prototyping
•  Supports both USB 2.0 and USB 3.1 data lines
•  Straight male connector ideal for direct plug applications
• Robust and durable PCB mount design
• Simplifies USB-C integration in custom boards

Applications:

• USB-C interface testing and prototyping
• Embedded and IoT hardware development
• Power delivery and data communication circuits
• DIY electronics and USB adapter boards
• Custom PCB designs requiring USB-C plug connectivity
