7SEMI USB-C 3.1 Breakout Board 24 Pins Female Type C Connector PCB

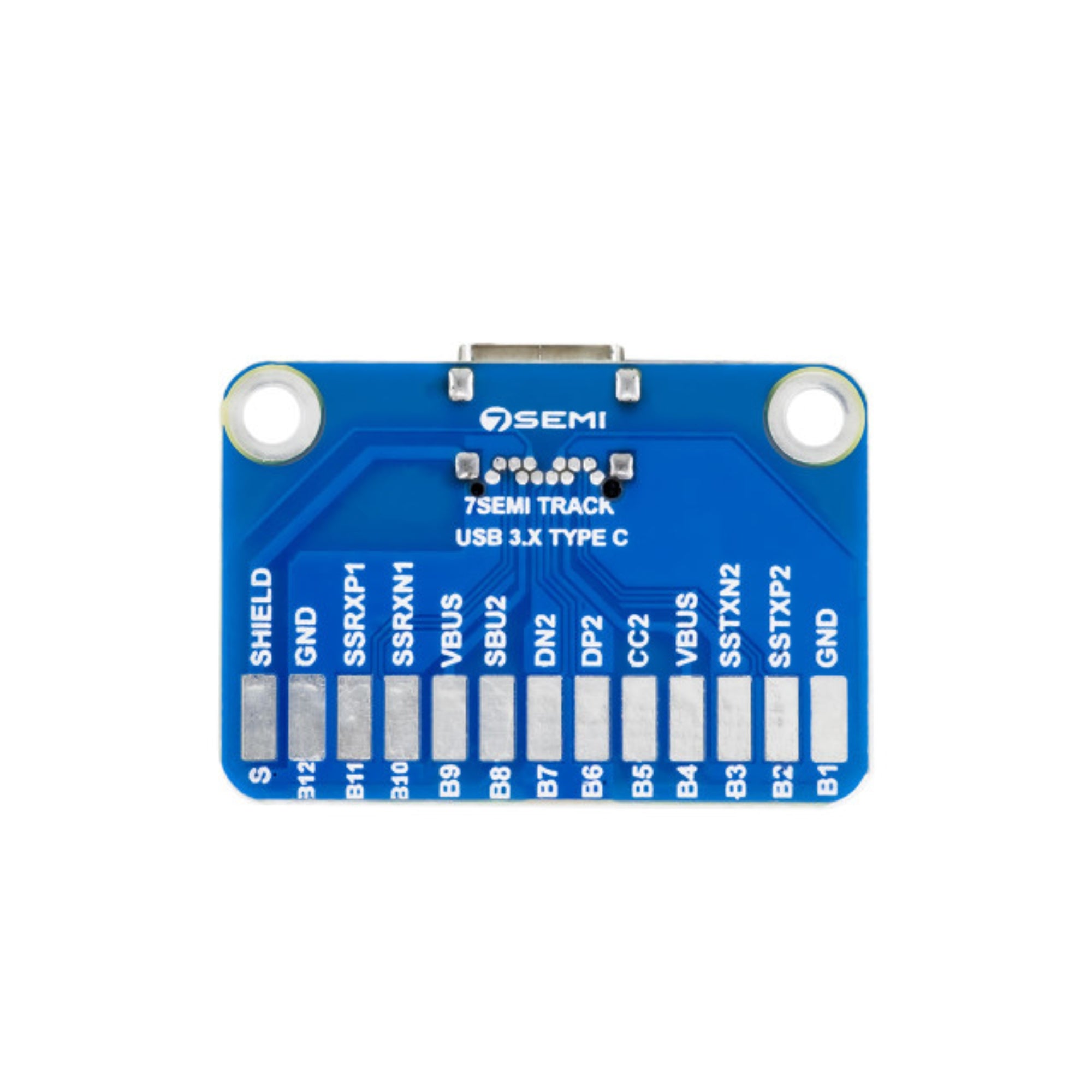

The 7Semi USB-C 3.1 Breakout Board (24 Pins, Female Type-C Connector) is a compact and easy-to-use adapter board designed to provide full access to all 24 pins of a USB Type-C female connector. It is compliant with the USB 3.1 standard and allows developers, engineers, and hobbyists to easily interface USB-C connections for power delivery, data transfer, and signal testing. The board exposes all pins via clearly labeled solder pads, eliminating the complexity of working with fine-pitch SMD connectors.

Technical Specifications:

• Brand: 7Semi
• Connector Type: USB Type-C Female (24 Pins)
• USB Standard: USB 3.1
• Pin Count: 24 pins fully broken out
• Supported Protocols: USB 2.0 and USB 3.1 data lines
• Operating Voltage: 5 V (standard USB voltage)
• Current Capacity: Up to 3 A (depending on source and configuration)
• Interface: 2.54 mm pitch solder pads for easy prototyping
• Mounting Type: PCB breakout board
• Material: High-quality FR-4 PCB
• Orientation: Vertical female connector
• Dimensions: Compact and breadboard-friendly design


Features:

• Breaks out all 24 pins of the USB-C female connector
• Supports both USB 2.0 and USB 3.1 communication
• Ideal for testing, prototyping, and USB-C interface development
• Gold-plated pads ensure excellent conductivity and durability
• Compact PCB with labeled pin layout for easy identification
• Compatible with power and high-speed data transmission
• Robust mechanical construction for stable connection

Applications:

• USB-C device prototyping and testing
• Embedded and IoT system development
• Power delivery and data communication circuits
• USB-C connector interface design and debugging
• Educational and research lab experiments
• DIY electronics and custom hardware projects
