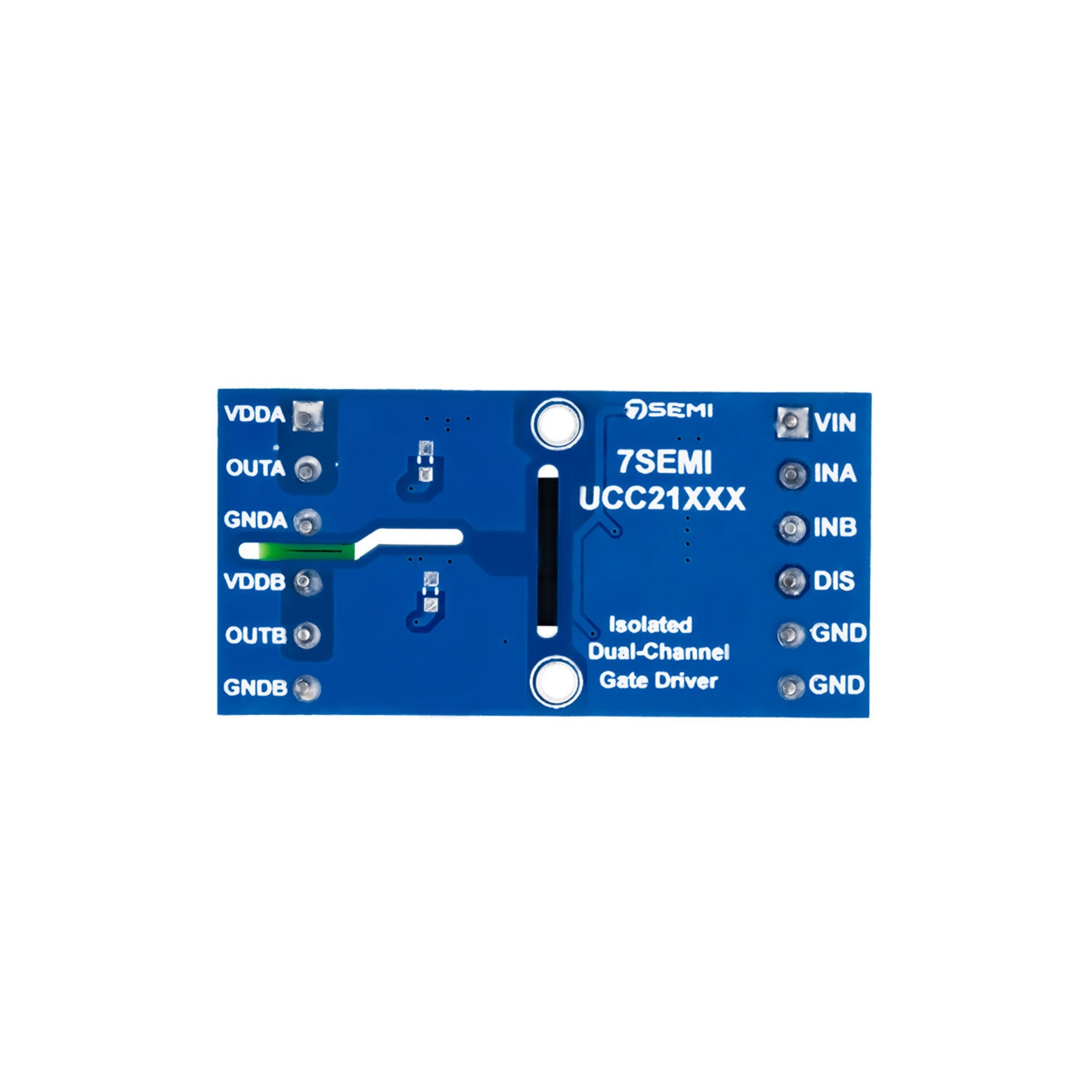

7Semi UCC21330 Dual-channel Isolated Gate Driver Breakout

The 7Semi UCC21330 Dual-Channel Isolated Gate Driver Breakout is a high-performance module designed for driving power MOSFETs, IGBTs, and SiC/GaN transistors in high-voltage and high-speed switching applications. Based on Texas Instruments’ UCC21330, it features two fully isolated gate drivers with reinforced isolation up to 5.7 kVRMS and robust protection features, including under-voltage lockout (UVLO) and fault diagnostics. The breakout provides superior switching performance, low propagation delay, and high common-mode transient immunity (CMTI), making it ideal for motor control, power conversion, and industrial automation systems.

Technical Specifications:

• IC Model: Texas Instruments UCC21330

• Driver Channels: 2 (dual independent isolated channels)

• Isolation Type: Reinforced isolation

• Isolation Voltage: 5.7 kVRMS (UL 1577 certified)

• Peak Output Current: 4A source / 6A sink per channel

• Operating Voltage (VDD): 4.5 V to 33 V

• Input Logic Voltage: 3.3 V or 5 V (TTL/CMOS compatible)

• Propagation Delay: 40 ns typical (matched between channels)

• Common Mode Transient Immunity (CMTI): >150 V/ns

• Under-Voltage Lockout (UVLO): Integrated for input and output stages

• Fault Protection: Over-current, UVLO, and fault reporting

• Operating Frequency: Up to 2 MHz

• Interface: PWM or digital control inputs (IN_A, IN_B)

• Output Type: Isolated gate drive outputs (OUT_A, OUT_B)

• Operating Temperature: -40°C to +125°C

• PCB Material: High-quality FR-4 with isolation routing



Features:

• Dual-channel reinforced isolated gate driver for high-voltage applications

• Supports both low-side and high-side driving configurations

• High peak output current for fast MOSFET and IGBT switching

• Reinforced isolation ensures safety in high-voltage circuits

• Excellent CMTI performance for noise immunity in fast-switching environments

• Integrated UVLO and fault detection for reliable operation

• Low propagation delay and matched timing for synchronized switching

• Compatible with both 3.3 V and 5 V logic input systems

• Compact breakout board with clear pin labeling for easy integration

• Ideal for driving SiC and GaN power devices in modern power electronics

Applications:

• Motor drives and industrial inverters

• DC-DC and AC-DC power converters

• High-voltage power supply systems

• Electric vehicle (EV) traction inverters and chargers

• Renewable energy systems (solar inverters, wind converters)

• UPS and energy storage systems

• Gate driving for MOSFETs, IGBTs, and SiC/GaN transistors

• Isolation and protection in high-speed switching circuits

• Research and prototyping of advanced power electronic systems
