7Semi UCC21220A Dual-channel Isolated Gate Driver Breakout

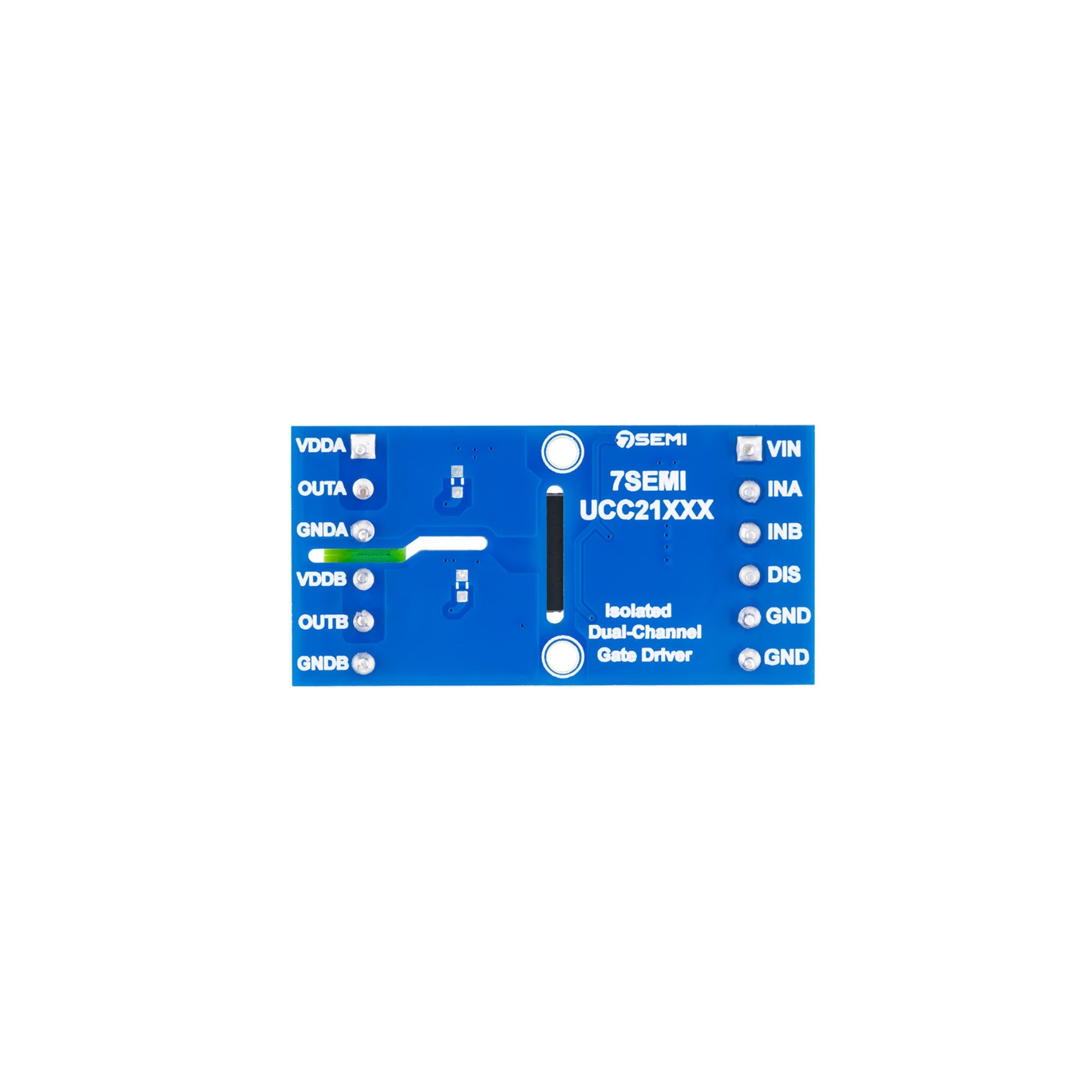

The UCC21220A breakout board is a dual-channel isolated gate driver module based on Texas Instruments' UCC21220A IC. It provides high-speed, high-current isolated gate drive for driving power MOSFETs, IGBTs, or GaNFETs. It features strong isolation, fast switching, and robust protection, making it suitable for high-voltage, high-performance power applications.

Technical Specifications:

• IC: UCC21220A

• Driver Type: Dual-channel isolated gate driver

• Peak Source Current: 4 A

• Peak Sink Current: 6 A

• Isolation Voltage: 3.0 kVrms

• Propagation Delay: ~40 ns

• Delay Matching: ≤ 5 ns

• Pulse Distortion: ~5–6 ns

• Logic Supply Voltage: 3.0 V to 5.5 V

• Output Supply Voltage: Up to 18–25 V

• Common-Mode Transient Immunity: >100 V/ns

• Undervoltage Lockout: Yes

• Disable Pin: Yes

• Operating Temperature: –40 °C to +150 °C

• Package: SOIC-16 (mounted on breakout board)

Features:

• Dual isolated gate drivers for independent or half-bridge configurations

• High peak drive current for fast switching

• Strong galvanic isolation for safety and signal integrity

• Tight delay matching and low pulse distortion

• Supports both 3.3V and 5V logic levels

• Onboard UVLO and disable functionality

• Robust CMTI performance for noisy environments

• Compact breakout board with easy access to all pins

Applications:

• Driving high- and low-side MOSFETs, IGBTs, or GaNFETs

• Isolated DC-DC power supplies

• Solar inverters and power optimizers

• Motor control and drives

• High-voltage switching systems

• Industrial and telecom power systems

• Robotics and automation systems
