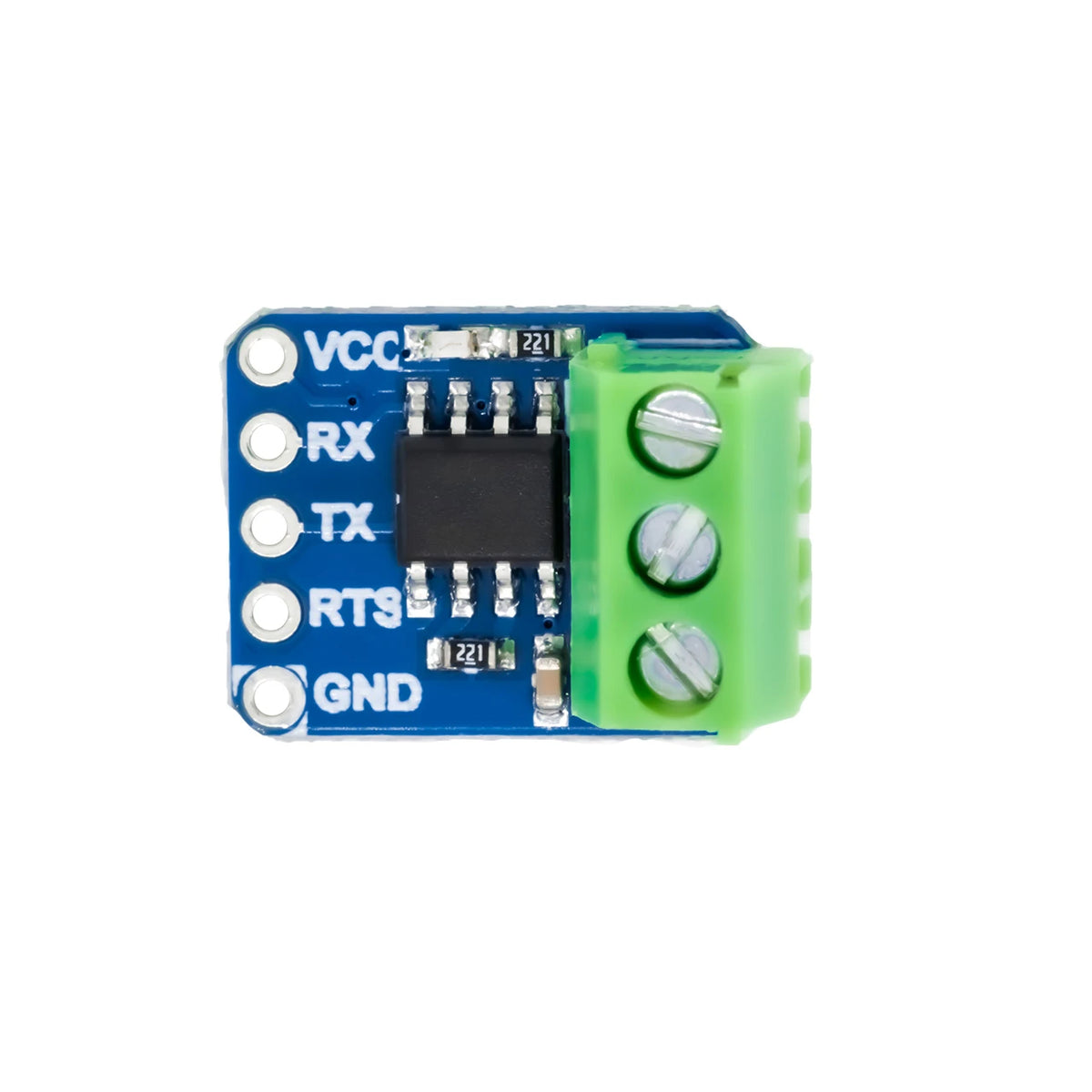

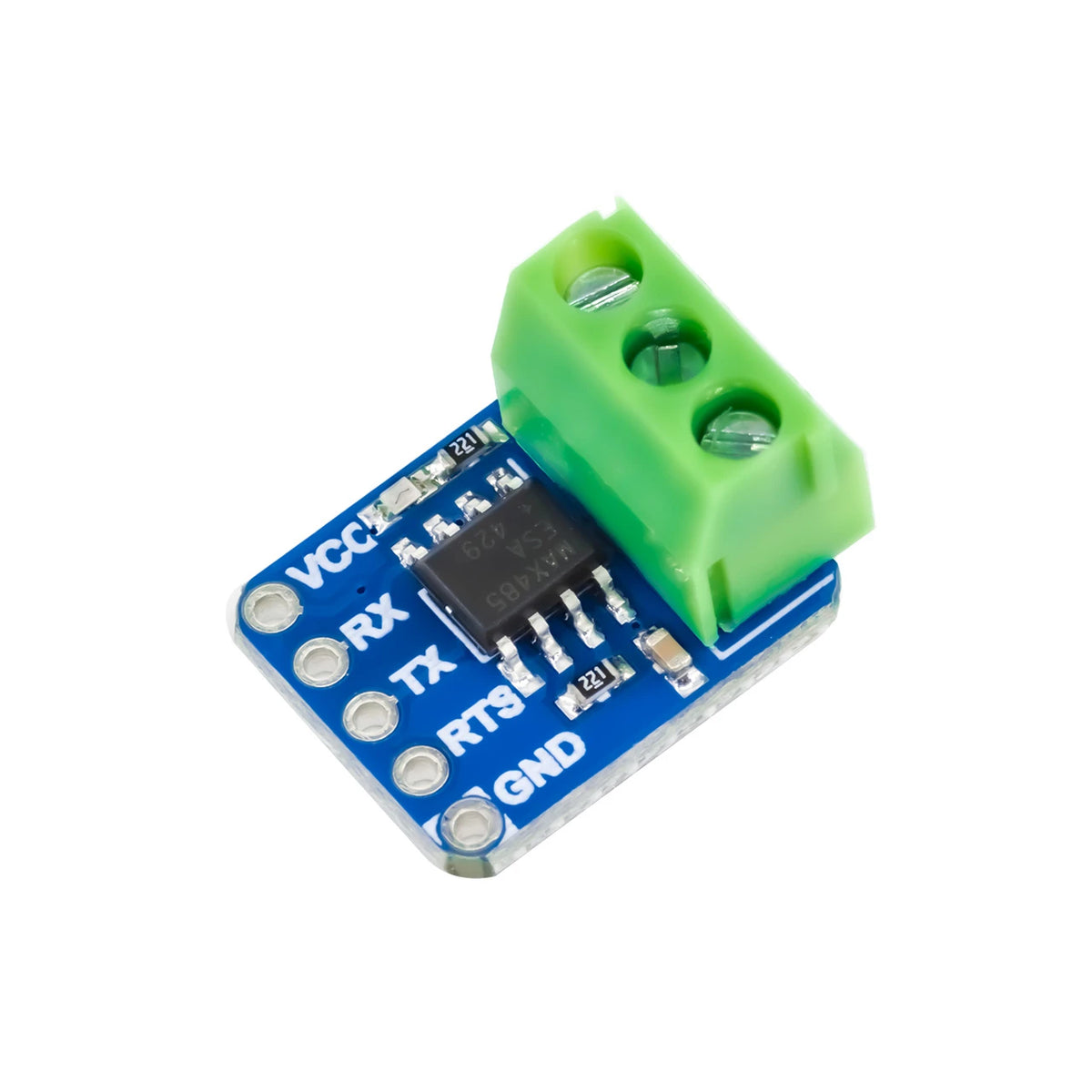

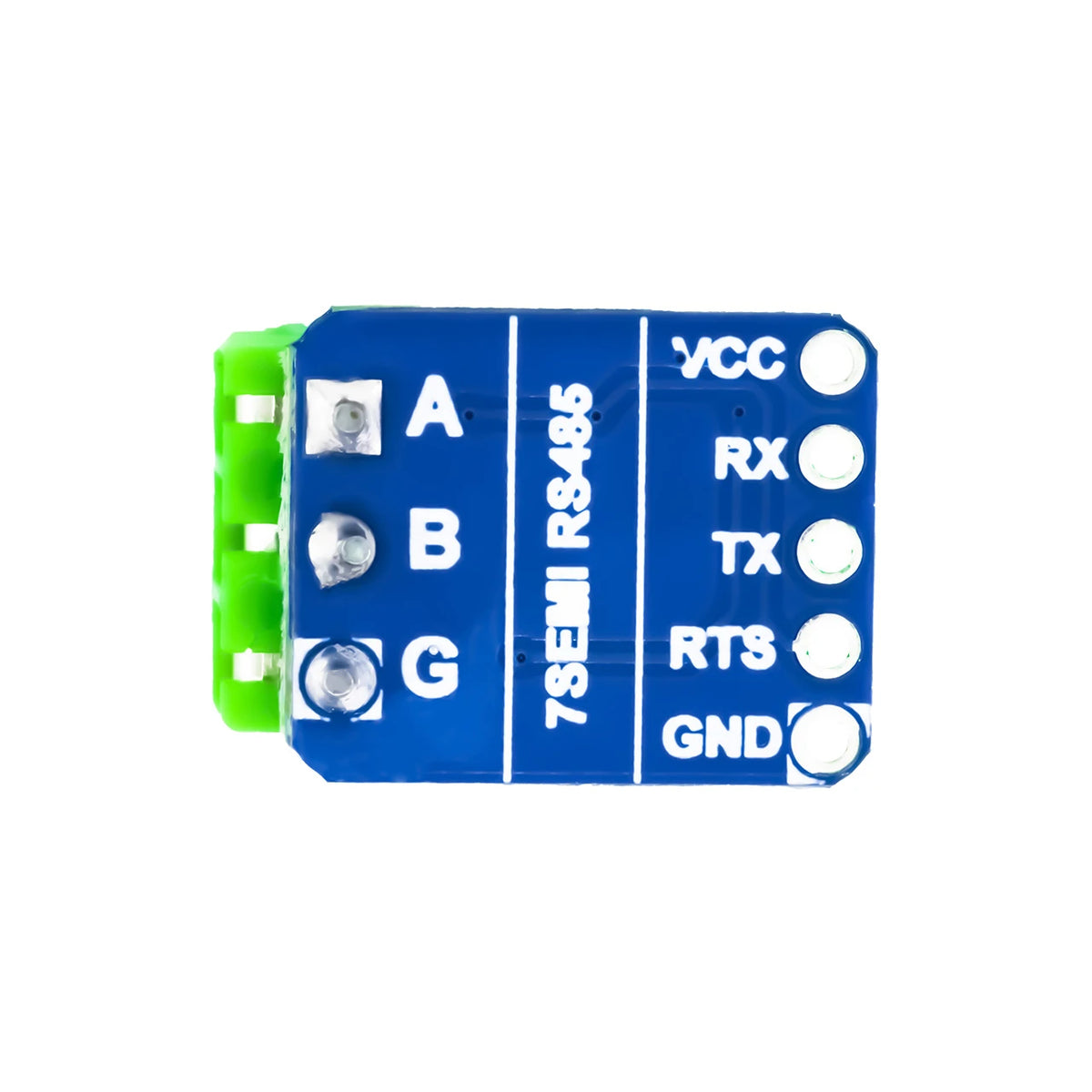

7Semi UART Serial to RS485 Converter Breakout - MAX485

The 7Semi UART Serial to RS485 Converter Breakout - MAX485 is a compact communication module designed to convert UART serial signals into RS485 for reliable data transmission over longer distances. Built around the MAX485 transceiver, it provides low-power operation, good signal integrity and dependable communication in electrically noisy environments. The module is suitable for connecting microcontrollers and embedded systems to RS485 devices used in automation, monitoring and industrial communication applications.

Technical Specifications

• Brand: 7Semi
• Transceiver IC: MAX485
• Interface: UART to RS485
• Communication Type: Differential serial communication
• Operation: Half-duplex RS485 communication
• Board Type: UART to RS485 converter breakout
• Protection: Short-circuit current limiting
• Thermal Protection: Thermal shutdown
• Receiver: Fail-safe receiver operation
• Design: Slew-rate limited for stable communication

Features

• UART to RS485 signal conversion
• MAX485 transceiver based design
• Supports long-distance serial communication
• Low-power operation
• Stable communication in noisy environments
• Short-circuit current limiting
• Thermal shutdown protection
• Fail-safe receiver operation
• Compact breakout board design
• Easy integration with microcontrollers and development boards

Applications

• Industrial automation
• RS485 sensor networks
• Microcontroller communication
• Data acquisition systems
• Remote monitoring
• Building automation
• Control systems
• Embedded electronics projects
• Serial communication networks
• Long-distance wired data transmission
