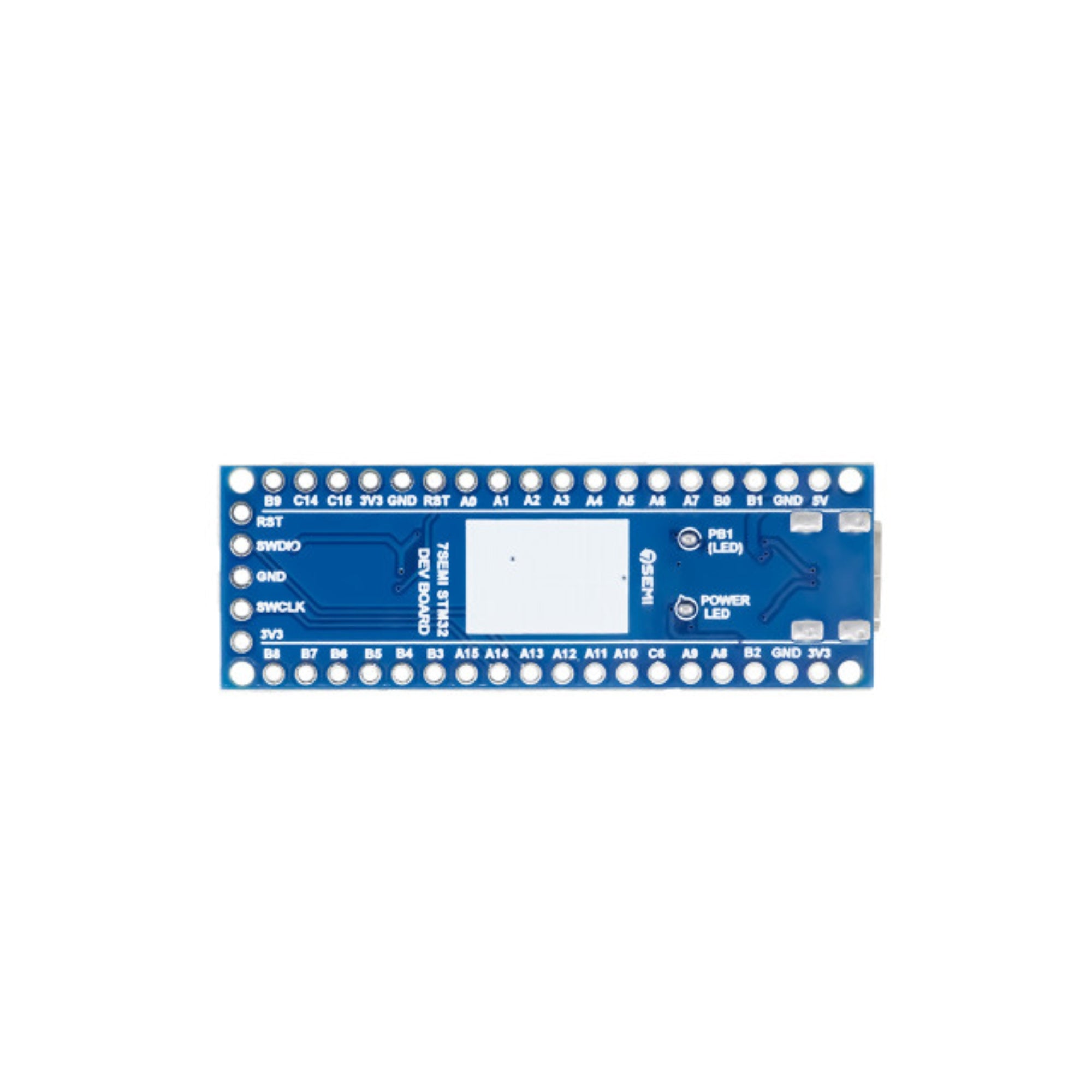

7Semi STM32G0B0KET6 STM32 Development Board

7Semi STM32G0B0KET6 STM32 Development Board is a compact and powerful embedded development platform based on the STM32G0B0KET6 Arm Cortex-M0+ microcontroller. It is designed for IoT, industrial control, consumer electronics, and low-power embedded applications. The board provides extensive peripheral support, USB-C power, SWD debugging capabilities, and a breadboard-friendly layout, making it ideal for rapid prototyping and production-ready hardware development.

Technical Specifications:

• Microcontroller: STM32G0B0KET6, Arm Cortex-M0+ core
• Clock Speed: Up to 64 MHz
• Flash Memory: 512 KB
• SRAM: 144 KB
• Operating Voltage: 2.0 V to 3.6 V
• Operating Temperature: –40 °C to +85 °C (industrial range)
• MCU Package: LQFP-32 (7×7 mm)
• Interfaces: USART, SPI, I²C, USB 2.0 Full-Speed, DMA, RTC, timers
• ADC: 12-bit resolution
• Power Input: USB-C
• Debug Interface: SWD
• Board Layout: Breadboard-friendly header pins

Features:

• High-performance Cortex-M0+ microcontroller with large flash and SRAM capacity
• USB-C power and programming convenience
• Full SWD programming and debugging support
• Rich peripheral functionality for sensor, communication and control applications
• Industrial-grade temperature support for harsh environments
• Low-power consumption suitable for battery-operated systems
• Compact and flexible prototyping platform

Applications:

• IoT modules, gateway nodes and remote monitoring systems
• Embedded automation and industrial control solutions
• Data logging and ADC-based measurement systems
• Consumer electronics and appliance controllers
• Robotics and motor control projects
• Low-power handheld or portable devices
• Educational embedded system prototyping and training
