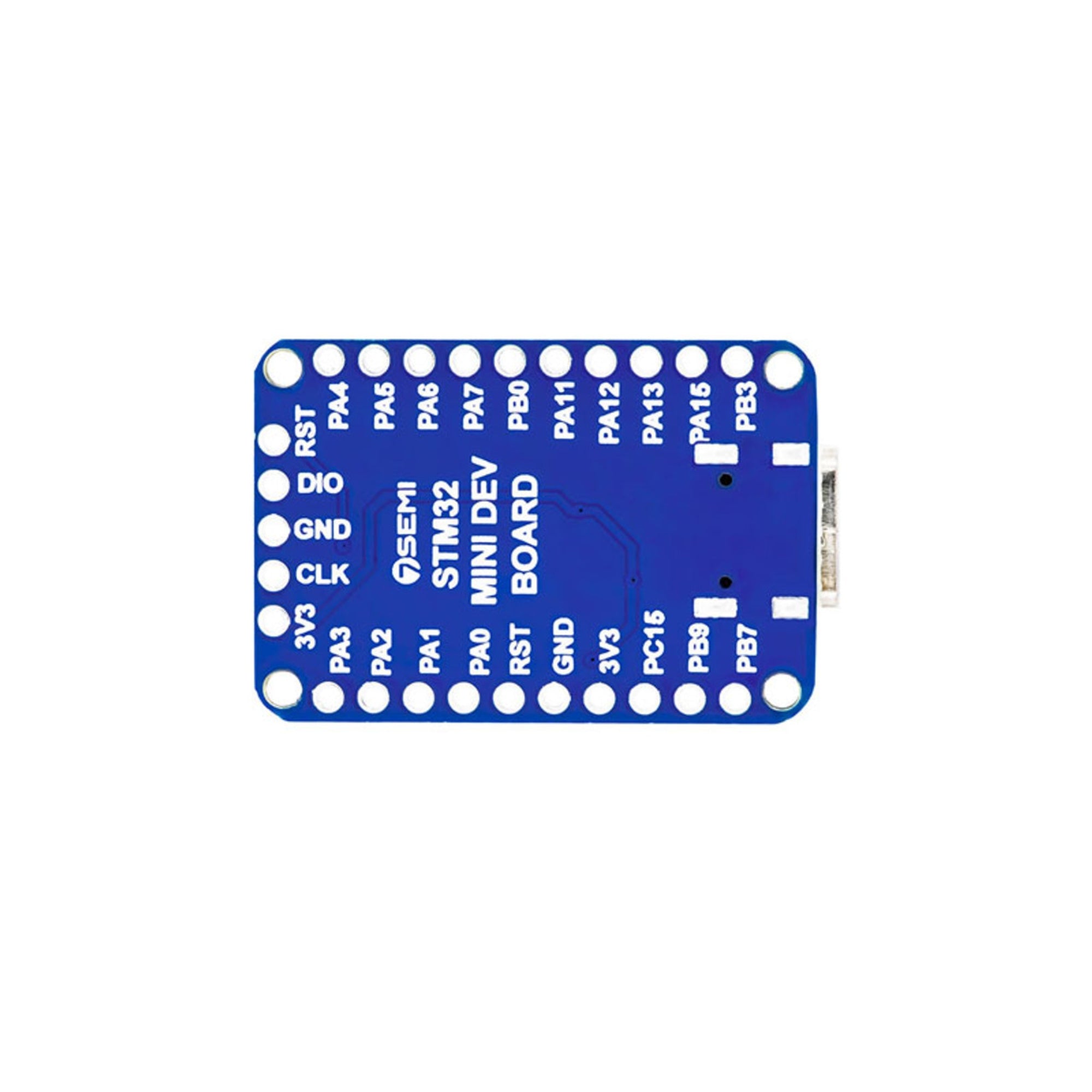

7Semi STM32G030F6P6 Anchor STM32 mini Development Board

The 7Semi STM32G030F6P6 Anchor STM32 Mini Development Board is a compact and efficient microcontroller platform based on the STM32G030F6P6 ARM Cortex-M0+ processor. It is designed for embedded development, prototyping, and educational purposes. The board includes onboard power regulation, USB connectivity, SWD programming interface, and reset circuitry, making it easy to start development without additional hardware. Its small form factor allows convenient integration into custom circuits and breadboards.

Technical Specifications:

• Microcontroller: STM32G030F6P6 (ARM Cortex-M0+)

• Operating Voltage: 3.3 V (regulated from USB 5 V)

• Clock Frequency: Up to 64 MHz

• Flash Memory: 32 KB

• SRAM: 8 KB

• Interface: USB Micro port for power and communication

• Programming Interface: SWD (Serial Wire Debug)

• Reset Button: Onboard tactile reset switch

• I/O Pins: Multiple GPIOs available for interfacing

• Board Type: Mini development board, breadboard-friendly

• Power Input: USB 5 V or external 3.3 V supply

• PCB: High-quality FR-4 with proper decoupling and filtering components

Features:

• Compact and easy-to-use STM32 development platform
• Integrated USB interface for power and bootloader programming
• Onboard SWD interface for debugging and code upload
• Supports multiple IDEs including STM32CubeIDE and Keil
• Low-power, high-performance Cortex-M0+ core
• Breadboard-compatible layout for quick prototyping
• Includes all essential passive components for stable operation

Applications:

• Embedded systems and automation projects

• IoT devices and smart sensors

• Robotics and control applications

• Educational and research experiments

• Rapid prototyping and firmware testing

• Low-power portable electronics
