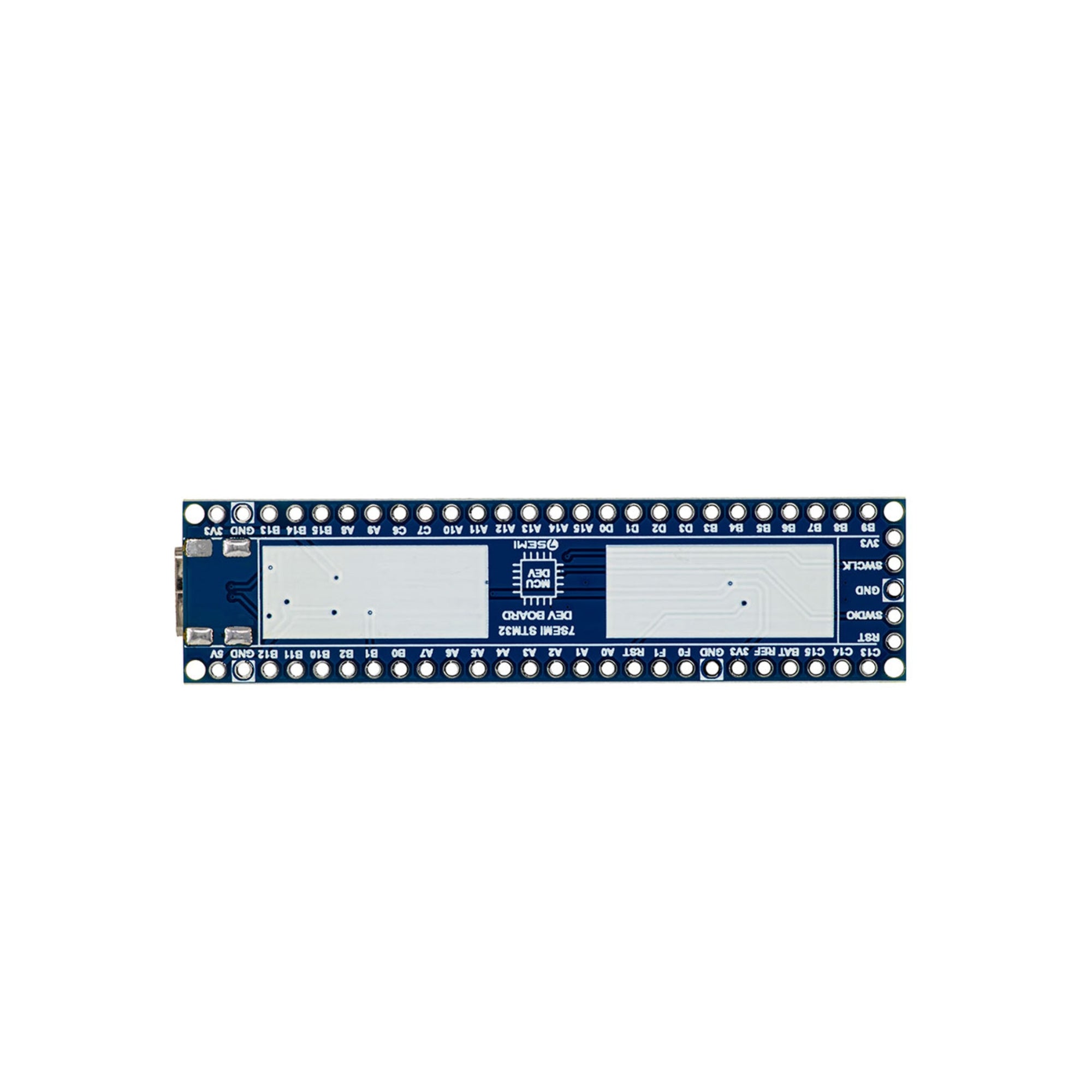

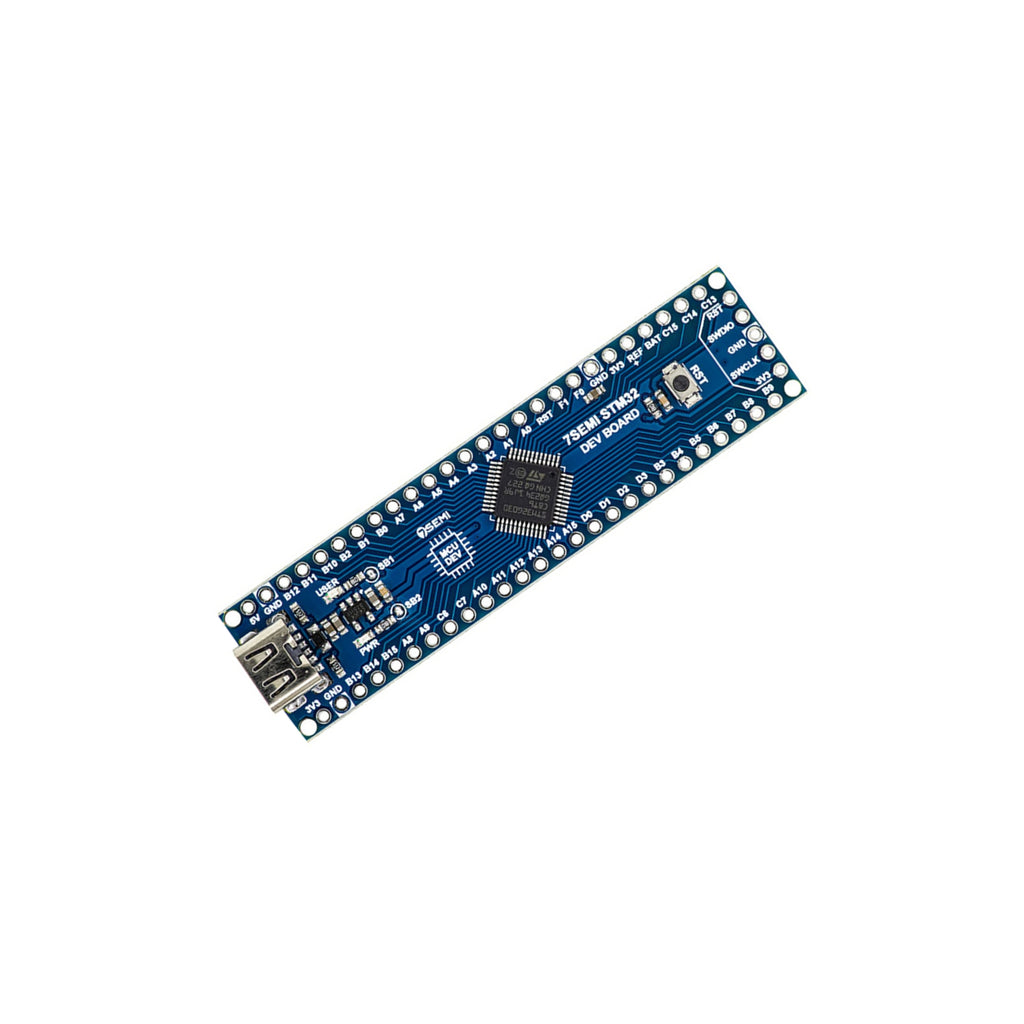

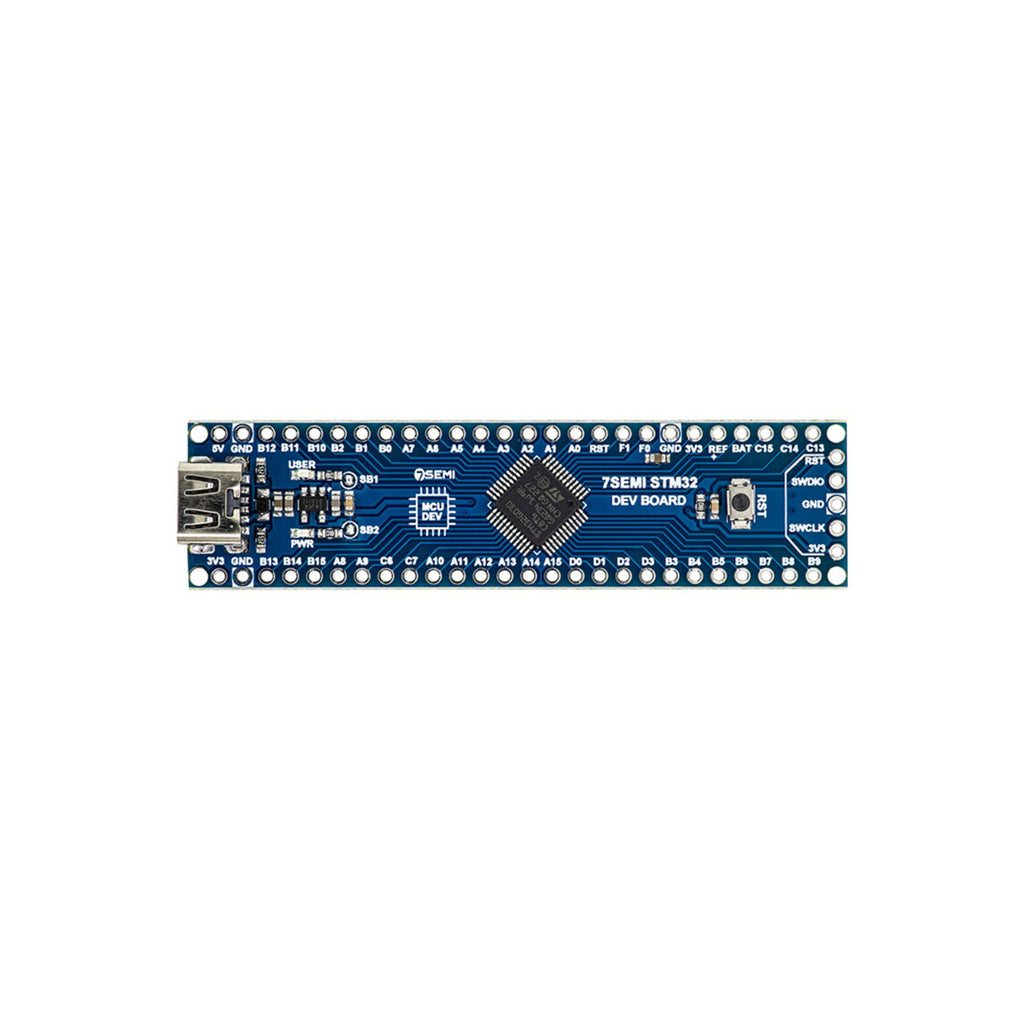

7Semi STM32G030C8T6 ARM STM32 mini Development Board

The 7Semi STM32G030C8T6 ARM STM32 Mini Development Board is a compact and powerful platform for developing and prototyping applications using the STM32G0 series microcontroller from STMicroelectronics. Featuring a 32-bit ARM Cortex-M0+ core running at up to 64 MHz, this board offers high performance with low power consumption, making it ideal for embedded systems, IoT devices, and industrial automation projects. It includes onboard power regulation, a reset circuit, and all GPIOs broken out to headers, allowing easy access for interfacing sensors, actuators, and communication peripherals.

Technical Specifications:

• Microcontroller: STM32G030C8T6 (STMicroelectronics)

• Core Architecture: ARM Cortex-M0+ 32-bit RISC CPU

• CPU Frequency: Up to 64 MHz

• Flash Memory: 64 KB

• SRAM: 8 KB

• Operating Voltage: 3.3 V

• Input Voltage: 5 V via USB or external pin header

• GPIO Pins: Up to 37 I/O pins accessible via headers

• Communication Interfaces: UART, SPI, I²C, I²S, ADC, PWM, and GPIO

• ADC: 12-bit, up to 16 channels

• Timers: General-purpose and advanced-control timers

• Programming Interface: SWD (Serial Wire Debug)

• Clock Source: Internal 16 MHz oscillator with PLL

• USB Interface: Micro USB for power and serial communication

• Logic Level Compatibility: 3.3 V (5 V tolerant on select pins)

• Operating Temperature: -40°C to +85°C

• PCB Material: High-quality FR-4 with 2.54 mm pitch pin headers

Features:

• ARM Cortex-M0+ STM32G030C8T6 microcontroller with 64 KB Flash and 8 KB RAM

• High-speed 64 MHz processing for real-time embedded applications

• Onboard voltage regulation and reset circuitry

• Breadboard-friendly pin headers for easy prototyping

• Supports various communication protocols: UART, SPI, I²C, and PWM

• Low-power design suitable for battery-based systems

• SWD programming and debugging interface for developers

• Compatible with STM32CubeIDE, Keil, and other standard toolchains

• Compact and lightweight, ideal for embedded system integration

• Fully compatible with 3.3 V logic microcontroller ecosystems

Applications:

• Embedded system design and prototyping

• Industrial automation and control systems

• IoT devices and smart home controllers

• Sensor interfacing and data acquisition systems

• Robotics and motor control applications

• Power management and monitoring systems

• Educational and research-based MCU development

• Consumer electronics and low-power products

• Communication interface development (UART/SPI/I²C-based systems)

• General-purpose microcontroller experimentation and firmware testing
