7Semi SOT23-3 SOT23-5 SOT23-6 SOT23-8 SMD to DIP PCB Adapter Board

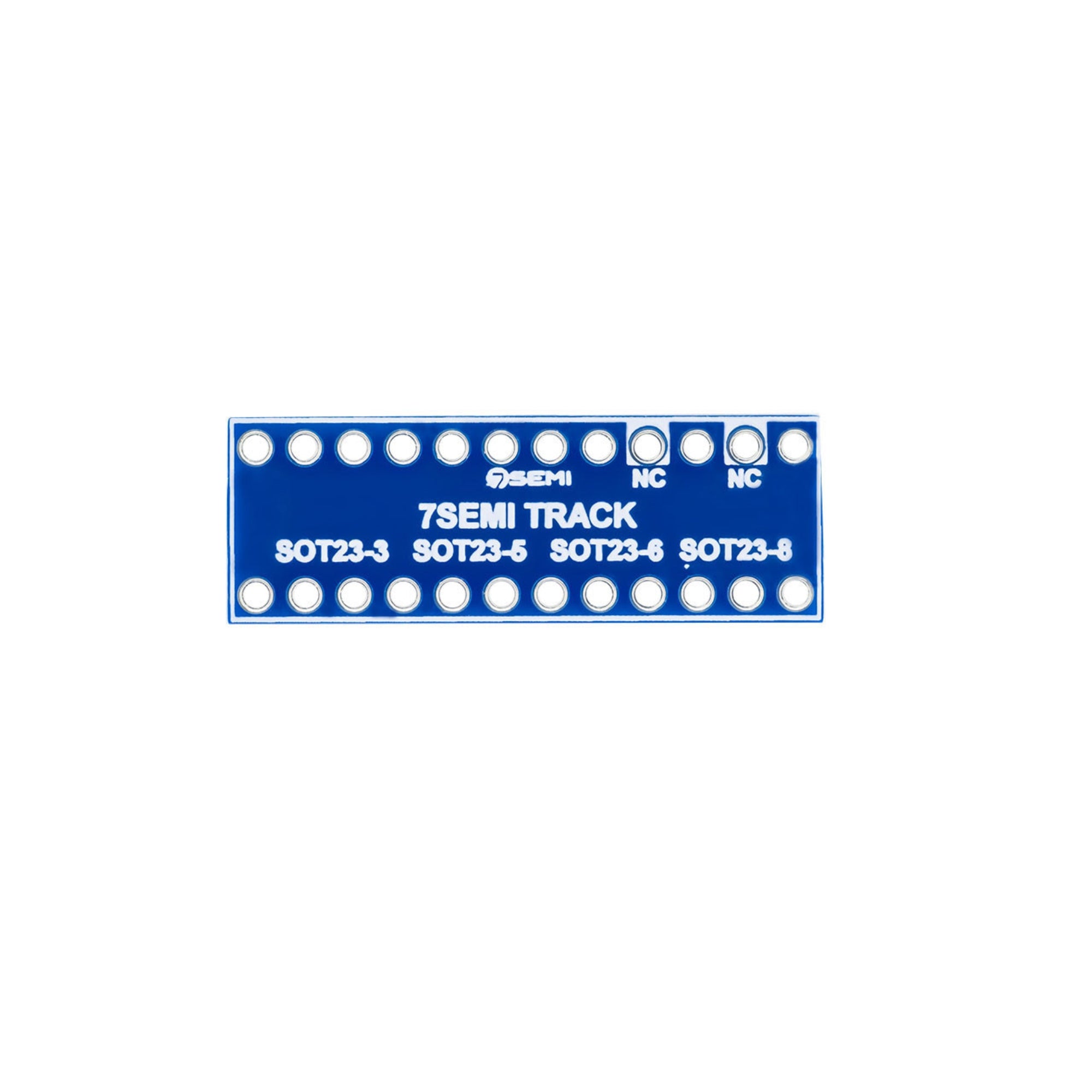

The 7Semi SOT23-3 / SOT23-5 / SOT23-6 / SOT23-8 SMD to DIP PCB Adapter Board is a compact breakout board designed to convert surface-mount SOT23 packages into easy-to-use DIP (Dual Inline Package) format. It enables seamless prototyping and testing of SMD components such as transistors, voltage regulators, ICs, and other small devices on standard breadboards or through-hole PCBs. This adapter simplifies circuit development and debugging by providing clear pin labelling and sturdy gold-plated pads for reliable soldering.

Technical Specifications:

• Supported Packages: SOT23-3, SOT23-5, SOT23-6, SOT23-8
• Board Type: Double-sided PCB with SMD on one side and DIP pin layout on the other

• Material: High-quality FR-4 PCB

• Pad Finish: Gold-plated or tin-plated pads for corrosion resistance

• Pitch (DIP Side): 2.54 mm standard breadboard spacing

• Dimensions: Compact and breadboard-friendly form factor

• Mounting: Solder mount for SMD devices, through-hole pins for DIP side

• Operating Temperature: –40 °C to +85 °C (typical PCB rating)

• Color: Standard green solder mask with white silkscreen labels

Features:

• Supports multiple SOT23 variants on a single adapter board
• Converts SMD components to breadboard-compatible DIP format

• Double-sided design with clear pin markings for easy identification

• High-quality FR-4 board for durability and precision

• Gold-plated pads ensure excellent solderability and conductivity

• Ideal for rapid prototyping and circuit testing

• Compatible with most standard breadboards and perfboards

Applications:

•  Prototyping and testing of SOT23 package ICs and components
• Converting SMD components to DIP for use on breadboards
• Educational and electronics learning projects
• Custom circuit development and debugging
• Repair and modification of circuits with SMD devices
• Laboratory and R&D prototyping environments
