7Semi SOIC28/SOP28/SO28 TSSOP28/SSOP28 Adapter PCB

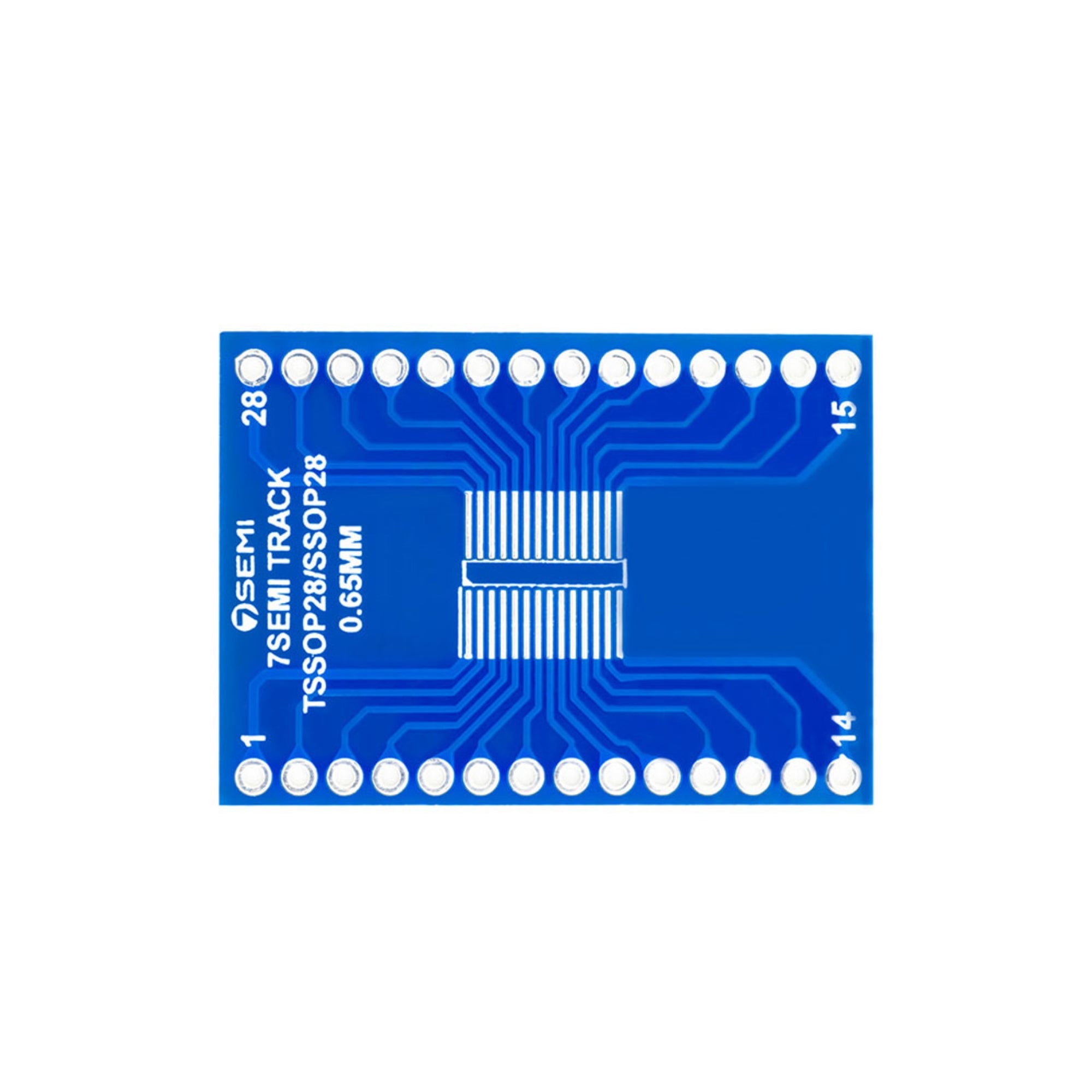

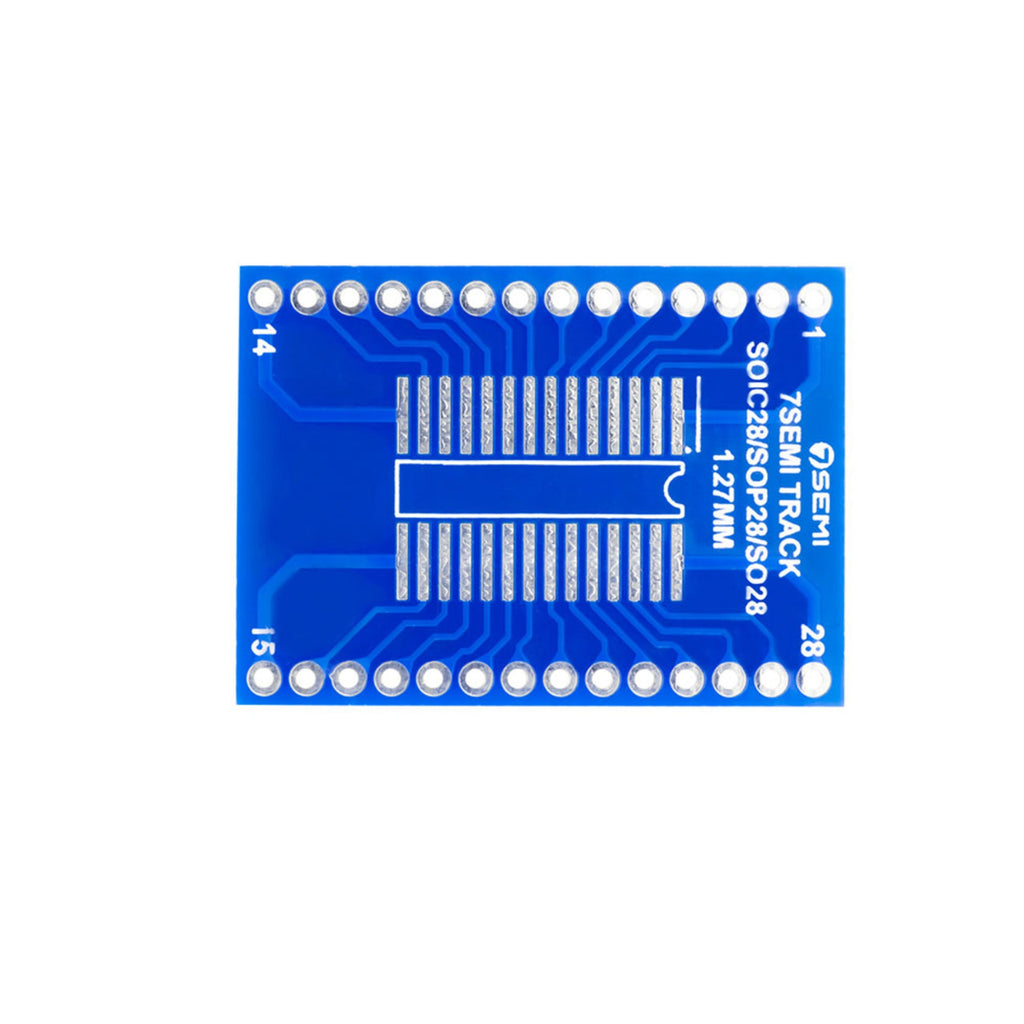

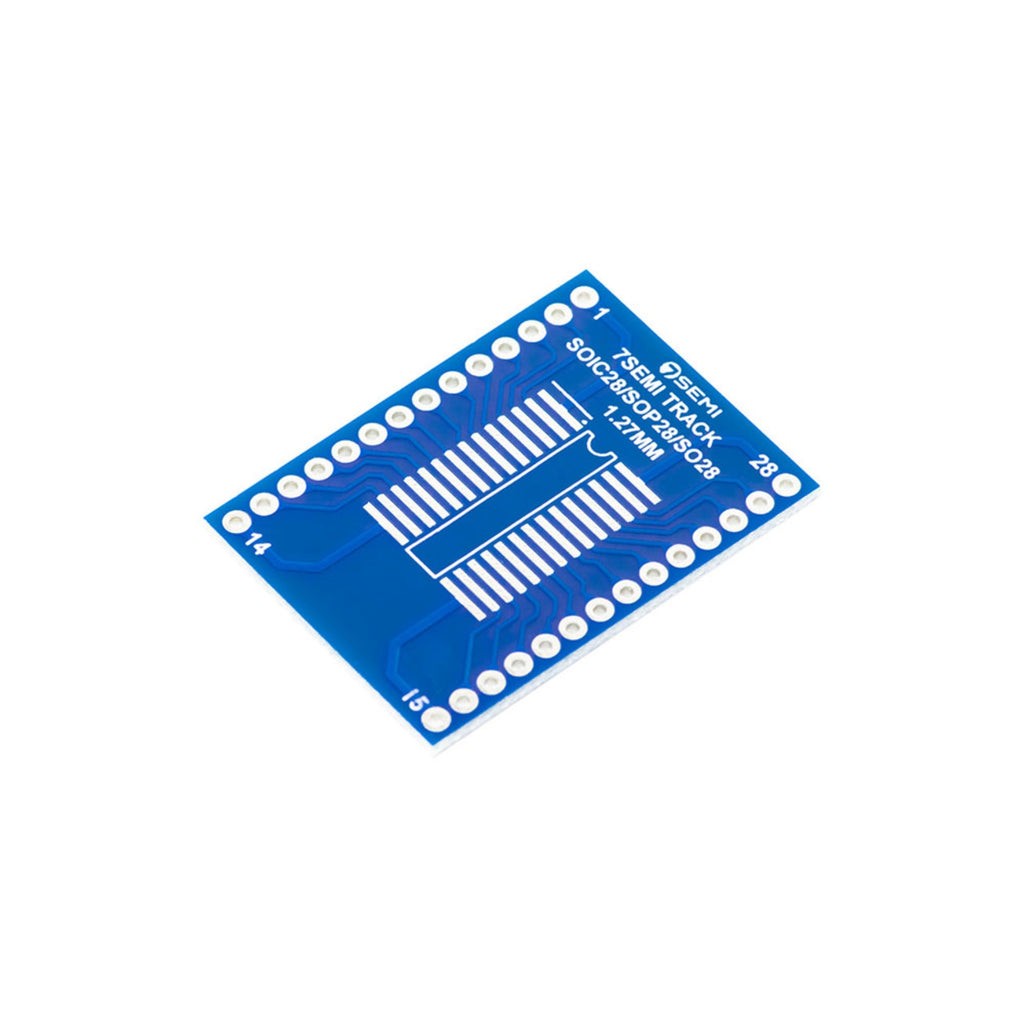

The 7Semi SOIC28/SOP28/SO28 TSSOP28/SSOP28 Adapter PCB is a versatile breakout board designed to convert surface-mount IC packages with 28 pins into a standard 2.54 mm DIP format. It supports multiple package types such as SOIC, SOP, SSOP, and TSSOP, making it ideal for prototyping, testing, or integrating SMD ICs on breadboards and through-hole circuits. The adapter ensures easy soldering, reliable connections, and compatibility with a wide range of integrated circuits used in electronics development and repair.

Technical Specifications:

• Supported Packages: SOIC-28, SOP-28, SSOP-28, TSSOP-28
• Pin Count: 28 pins per side (14 pins per row)
• DIP Pitch: 2.54 mm (standard breadboard spacing)
• Pad Pitch (SMD Side): 1.27 mm (SOIC/SOP), 0.65 mm (TSSOP/SSOP)
• Board Type: Double-sided adapter PCB (SMD on one side, DIP on the other)
• Material: High-quality FR-4 PCB
• Finish: Gold-plated or tin-plated pads for better solderability
• Dimensions: Compact, breadboard-friendly size
• Color: Standard green solder mask with clear white silkscreen labels
• Operating Temperature: –40 °C to +85 °C

Features:

• Converts 28-pin SMD ICs to breadboard-friendly DIP format
• Supports multiple IC package types on one board
• Double-sided design for flexible use and orientation
• High-quality FR-4 substrate for strength and stability
• Gold/tin plating ensures strong electrical contact and durability
• Easy to solder with clear pin numbering and labelling
• Ideal for prototyping, circuit testing, and educational use

Applications:

• Prototyping and development of SMD IC-based circuits
• Adapting SMD ICs for use in DIP sockets or breadboards
• Repair and modification of electronic devices
• Educational and lab experiments involving IC testing
• R&D and small-scale PCB development
• DIY electronics and hobbyist projects
