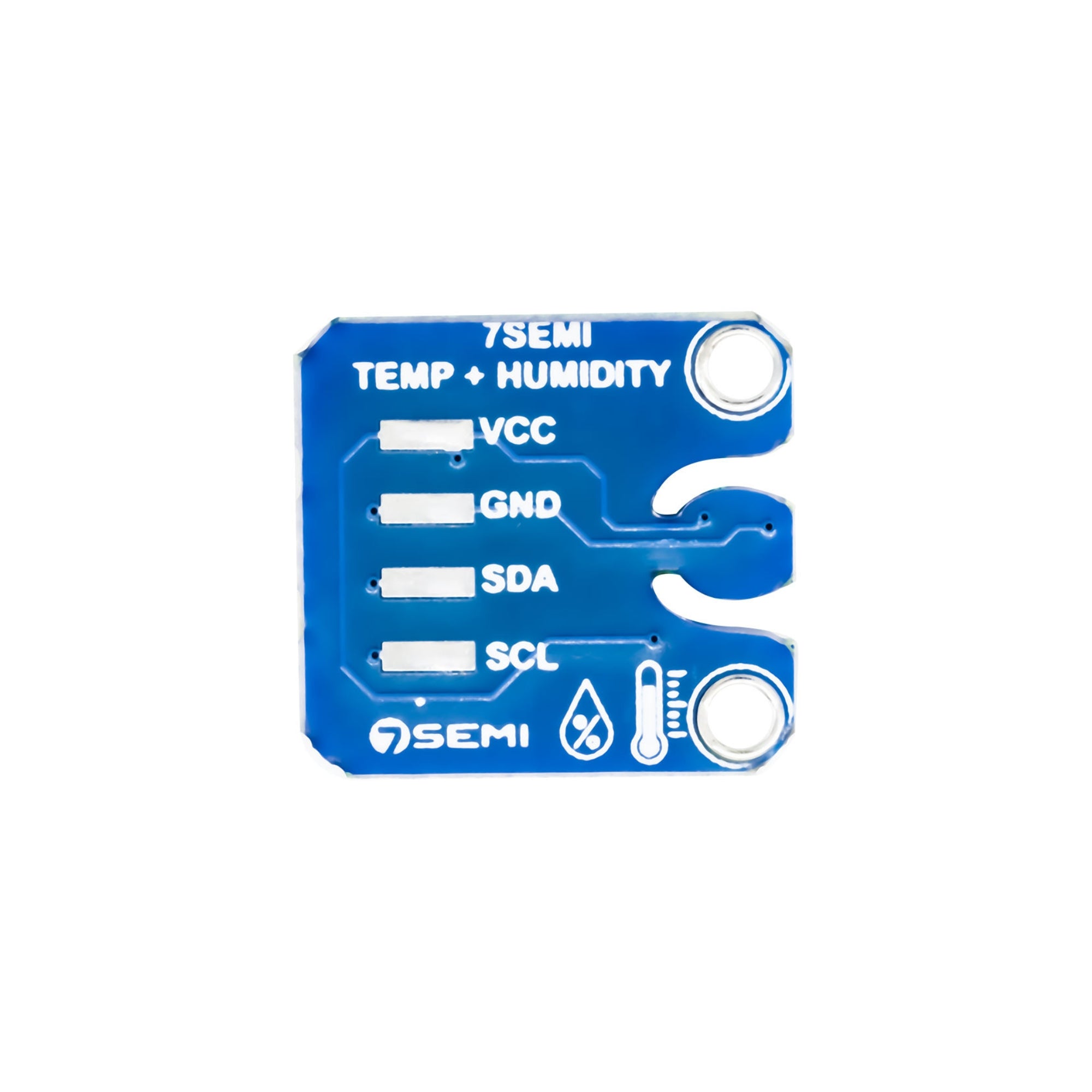

7Semi SHT45 RH Digital Humidity & Temperature Sensor Breakout with 4Pin Connector

The 7Semi SHT45 RH Digital Humidity & Temperature Sensor Breakout is a high-accuracy environmental sensing module built around the Sensirion SHT45. It delivers fully calibrated and linearized digital humidity and temperature data over an I²C interface. Featuring a compact PCB and a 4-pin connector for easy integration, it is ideal for HVAC applications, smart-home climate systems, data logging, weather stations, and IoT devices requiring precise temperature and humidity measurement.

Technical Specifications:

• Sensor IC: Sensirion SHT45

• Measurement Parameters: Relative Humidity and Temperature

• Interface: I²C digital communication

• Supply Voltage: 1.08V to 3.6V (typical 3.3V)

• Humidity Range: 0% to 100% RH

• Humidity Accuracy: ±1.0% RH

• Temperature Range: –40°C to +125°C

• Temperature Accuracy: ±0.1°C

• Output Resolution: 16-bit temperature and humidity output

• Response Time (Humidity): ~4 seconds

• Response Time (Temperature): ~2 seconds

• Default I²C Address: 0x44

• Output Type: Fully calibrated, digital output

• Connector: 4-pin interface for easy wiring

Features:

• High-accuracy digital humidity and temperature sensing

• ±1.0% RH and ±0.1°C precision suitable for critical applications

• Fully calibrated and linearized digital readings

• Low power consumption ideal for battery-powered IoT devices

• Fast response time for real-time environmental updates

• 4-pin connector simplifies integration into embedded systems

• Wide operating range for both humidity and temperature

• Compatible with Arduino, ESP32, STM32, Raspberry Pi

• Stable long-term performance with minimal drift

• Compact and robust design for industrial and consumer applications

Applications:

• HVAC and indoor climate control

• Smart-home environmental sensors

• Greenhouse and agricultural automation

• Weather monitoring and ambient data logging

• IoT devices for temperature/humidity tracking

• Industrial environmental sensing

• Storage and cold-chain monitoring

• Server room and warehouse humidity management

• Laboratory instrumentation

• Air-quality and environmental monitoring systems
