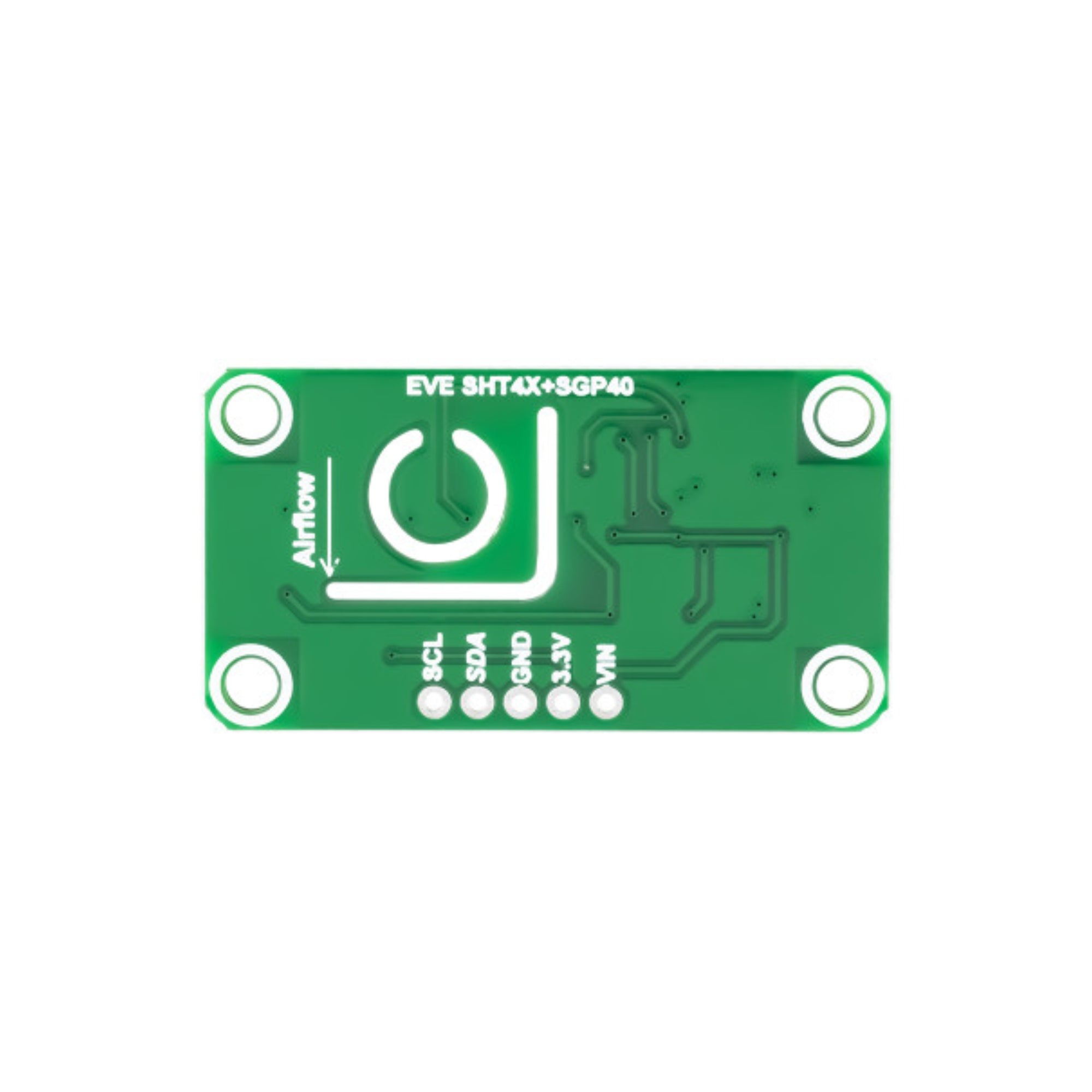

7Semi SHT45 and SGP41 Environmental Sensor Breakout

The 7Semi SHT45 and SGP41 Environmental Sensor Breakout is a compact dual-sensor module that integrates high-precision temperature and humidity sensing (SHT45) with advanced air-quality sensing (SGP41). This combined board provides accurate environmental data along with VOC and NOx gas indices, making it suitable for indoor air-quality monitoring, HVAC automation, IoT devices, and smart-environment applications. With an I²C digital interface, it allows easy integration with microcontrollers and embedded systems.

Technical Specifications:

SHT45 - Temperature & Humidity Sensor:

• Measurement Parameters: Temperature and Relative Humidity

• Temperature Accuracy: ±0.1°C

• Humidity Accuracy: ±1.0% RH

• Interface: I²C

• Output: Fully calibrated digital output

SGP41 - VOC & NOx Gas Sensor:

• Measurement Parameters: VOC Index and NOx Index

• Gas Type: Detects volatile organic compounds and oxidizing gases

• Output: Raw VOC and raw NOx signals for air-quality algorithms

• Interface: I²C

• Sensor Type: MOX (Metal-Oxide) gas sensor

Module / General:

• Combined environmental and air-quality monitoring module

• Shared I²C bus for both sensors

• Supply Voltage: 3.3V

• Logic Compatibility: 3.3V systems

• Compact breakout suitable for embedded designs

Features:

• Dual-sensor integration: temperature, humidity, VOC, and NOx sensing in one module

• High accuracy environmental sensing via SHT45 (±0.1°C and ±1.0% RH)

• SGP41 provides real-time VOC and NOx indices for indoor air-quality analysis

• Fully digital I²C interface for simple connection and coding

• Low power consumption suitable for battery-powered IoT systems

• Factory-calibrated sensing outputs ensure high reliability

• Compact design reduces PCB footprint compared to separate sensors

• Ideal for indoor air-quality monitoring and HVAC optimization

• Easy integration with Arduino, ESP32, STM32, Raspberry Pi, and IoT platforms

• Suitable for long-term environmental logging and automation systems

Applications:

• Indoor air-quality monitoring

• Smart home and IoT environmental sensors

• HVAC and ventilation control systems

• Environmental data logging platforms

• Smart-building automation

• Air purifiers and filtration systems

• Industrial and laboratory environmental monitoring

• Consumer indoor climate devices

• Greenhouse and confined-space monitoring

• Workplace air-quality detection
